Inspection Procedure 9

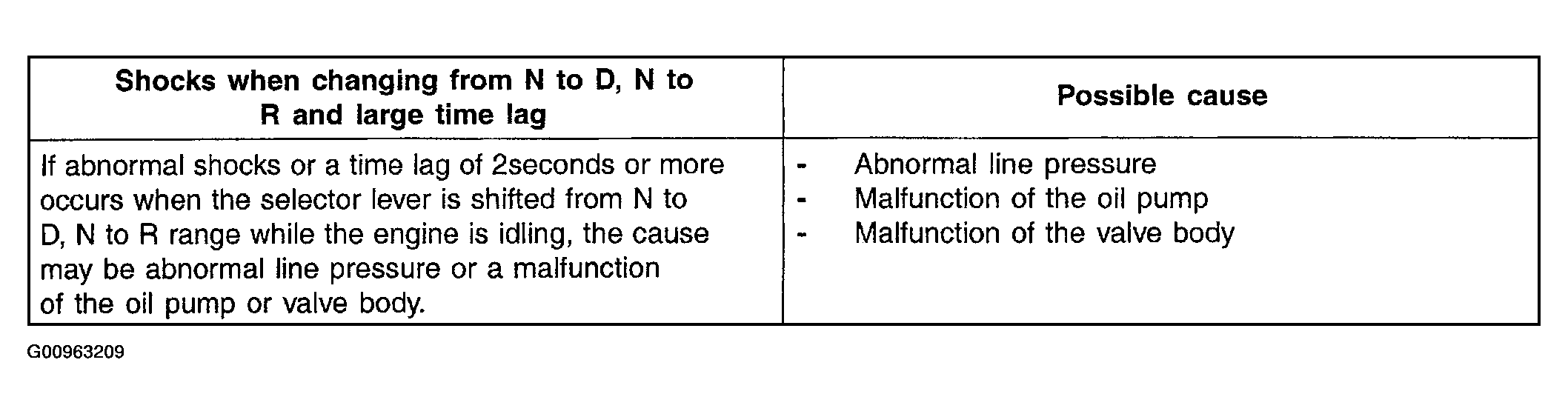

Fig 1: Shocks When Changing From Neutral-To-Reverse, Neutral-To-Drive & Large Time Lag Possible Causes Table
G00963209Courtesy of HYUNDAI MOTOR CO.

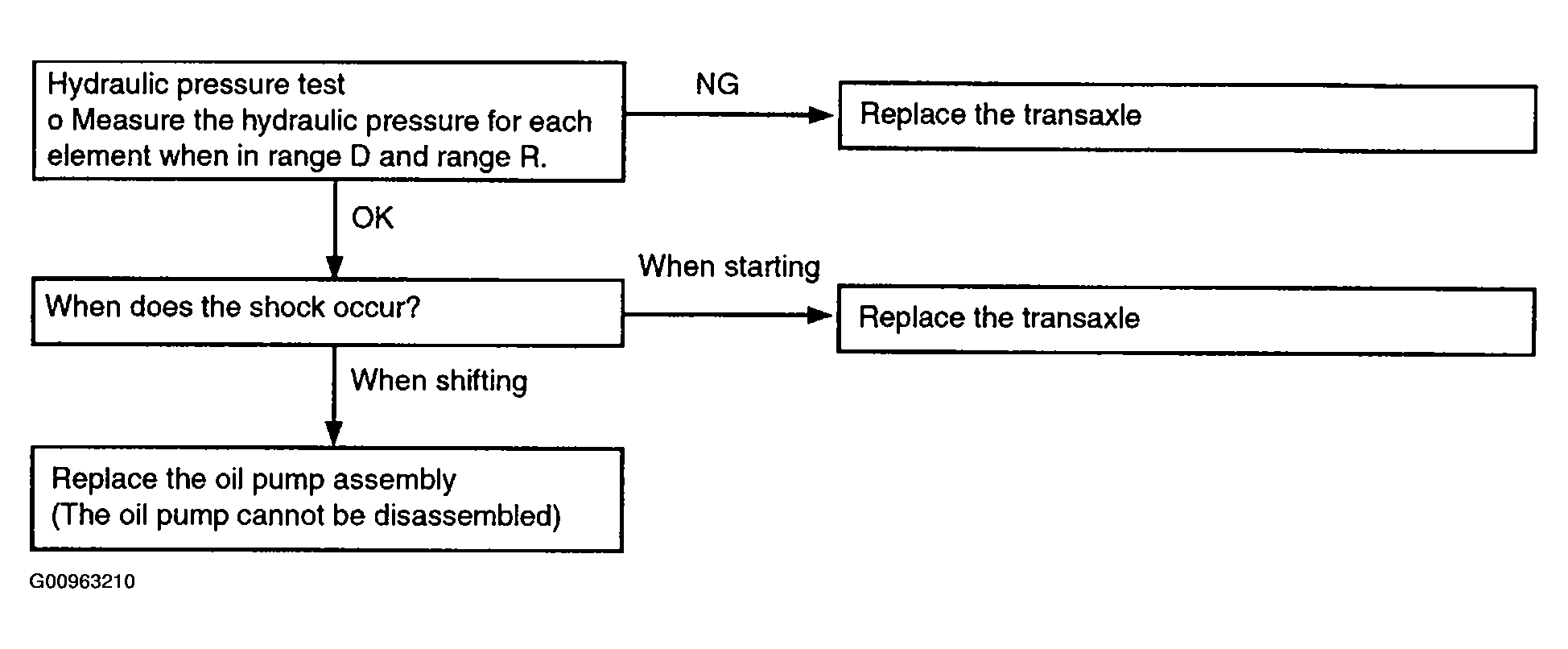

Fig 2: Shocks When Changing From Neutral-To-Reverse, Neutral-To-Drive & Large Time Lag Diagnostic Flow Chart
G00963210Courtesy of HYUNDAI MOTOR CO.
