HECU Block Diagram

  1. INPUT/OUTPUT DIAGRAM

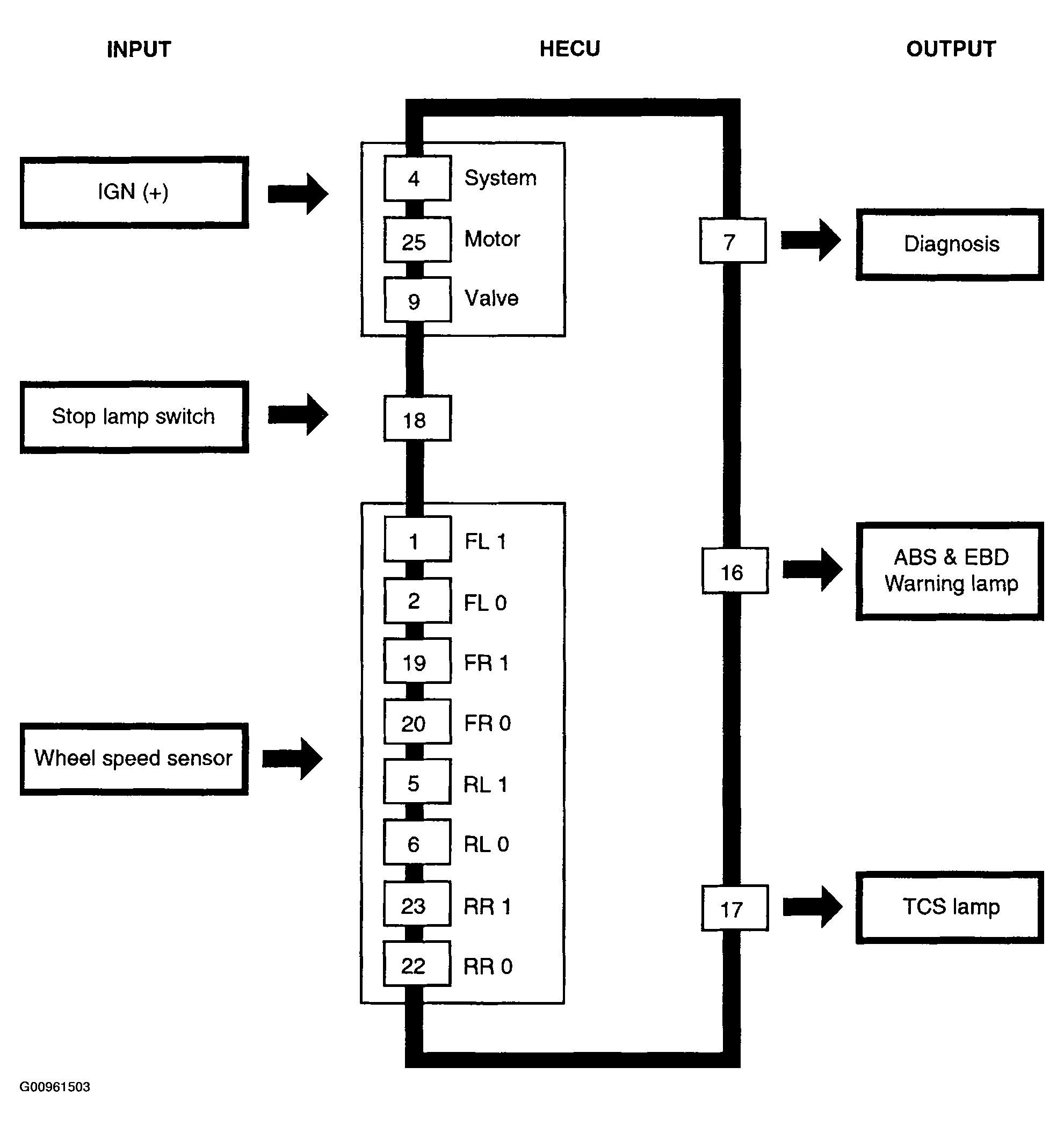

    Fig 1: Input & Output Diagram
    G00961503Courtesy of HYUNDAI MOTOR CO.
  2. ABS ECU BLOCK DIAGRAM

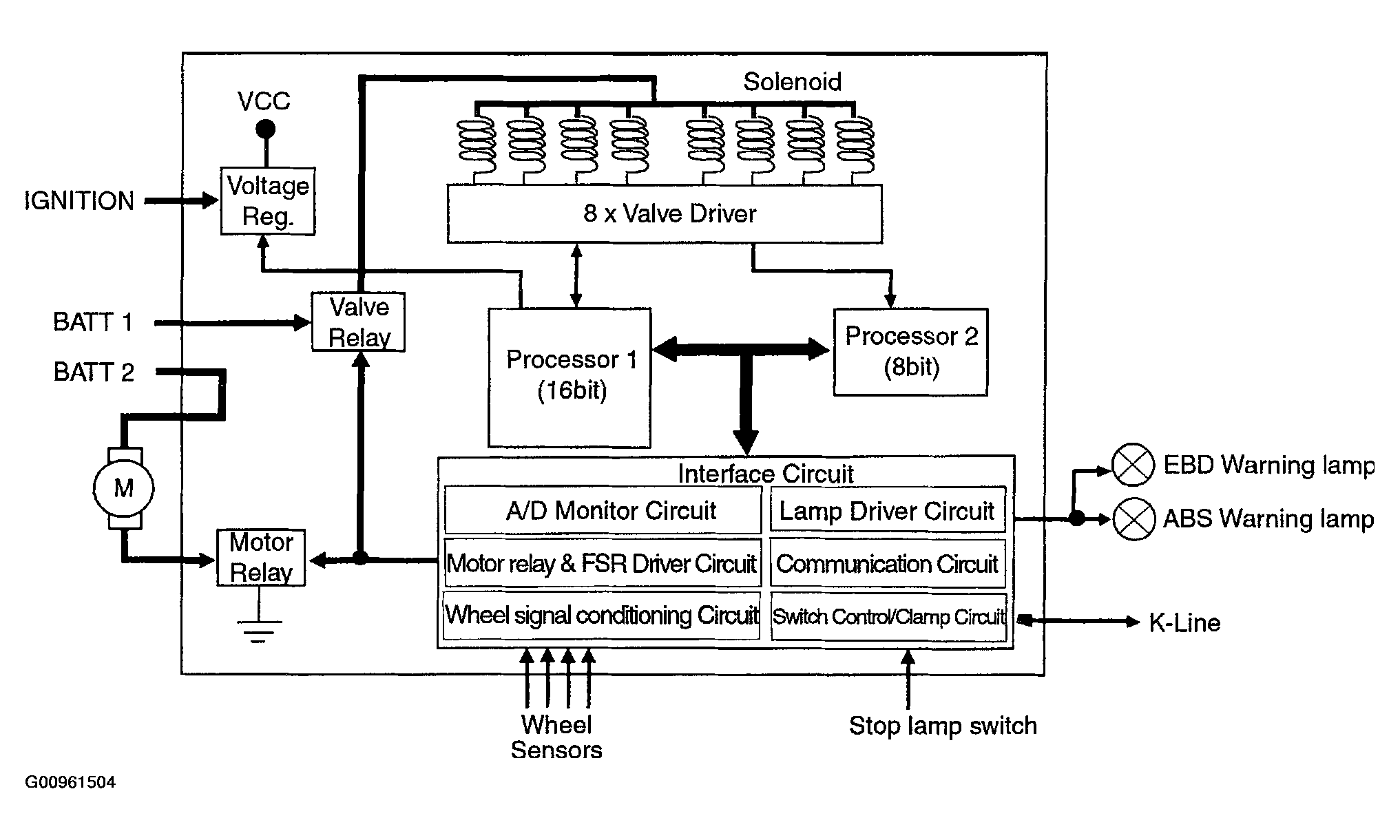

    Fig 2: ABS ECU Block Diagram
    G00961504Courtesy of HYUNDAI MOTOR CO.
  3. TCS ECU BLOCK DIAGRAM

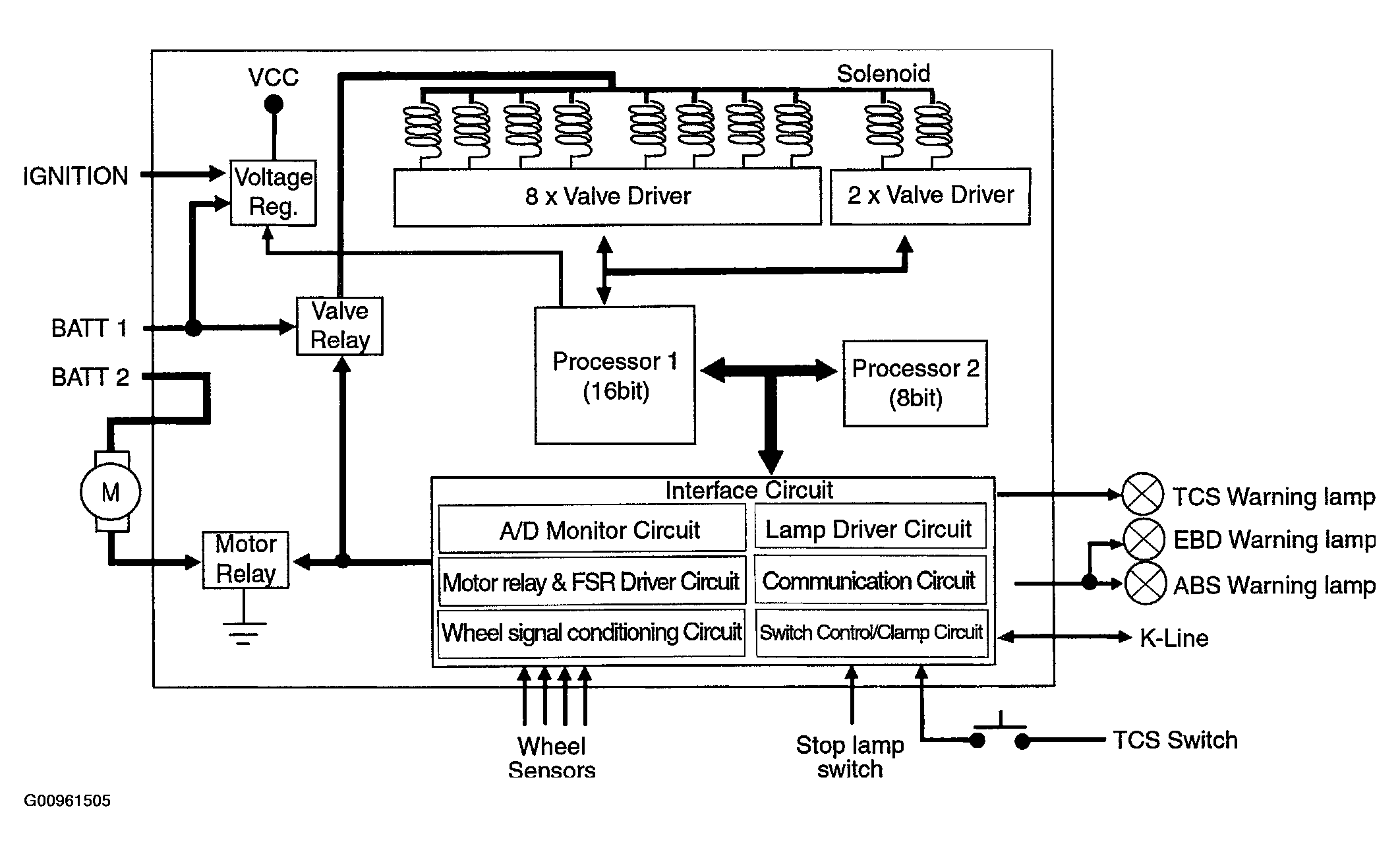

    Fig 3: TCS ECU Block Diagram
    G00961505Courtesy of HYUNDAI MOTOR CO.
