Component Locations

COMPONENT LOCATIONS

Component	Location
Battery	Left Front Of Engine Compartment. See Fig 1 .
Passenger Compartment Junction Block	Behind Left Knee Pad, To Left Side Of Steering Column. Fig 2 .
Engine Compartment Fuse Box	Left Side Of Engine Compartment, In Front Of Strut Tower. See Fig 1 .
Fusible Links	In Engine Compartment Fuse Box. See Fig 3 .
Generator	Left Front Of Engine. Fig 4 .
Pre-Excitation Resistor	In Engine Compartment Fuse Box. See Fig 5 .

Fig 1: Locating Battery & Engine Compartment Fuse Box

Courtesy of JAGUAR CARS INC.

Fig 2: Locating Passenger Compartment Junction Block

Courtesy of HYUNDAI MOTOR CO.

Fig 3: Locating Engine Compartment Relay & Fuse Box Fusible Links

Courtesy of HYUNDAI MOTOR CO.

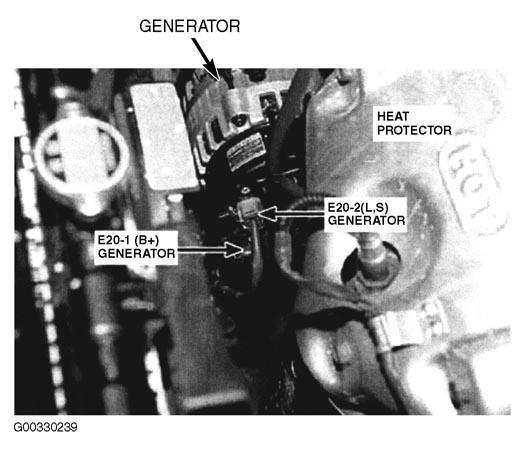

Fig 4: Locating Generator

Courtesy of HYUNDAI MOTOR CO.

Fig 5: Locating Pre-Excitation Resistor (Passenger Compartment Junction Block)

Courtesy of HYUNDAI MOTOR CO.
