Ignition Switch: Inspection
Remove the connector located under the steering column.
Check the continuity between terminals.

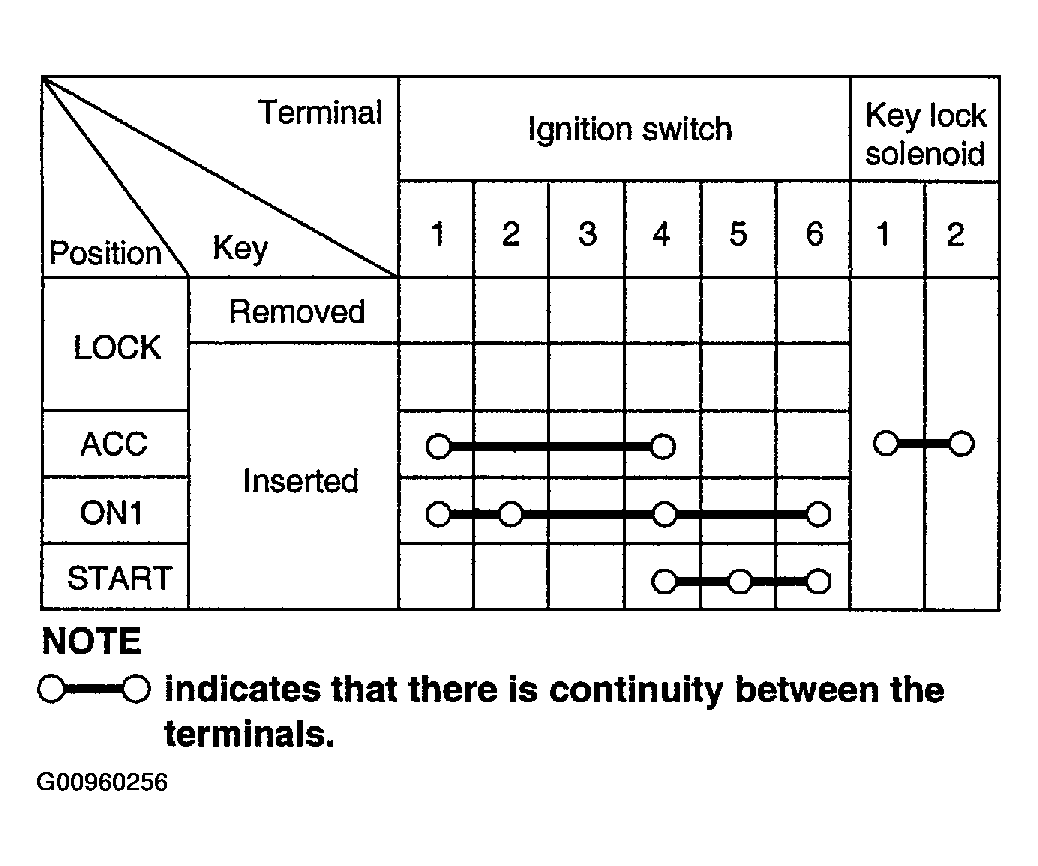

Fig 1: Ignition Switch Continuity Table
Courtesy of HYUNDAI MOTOR CO.

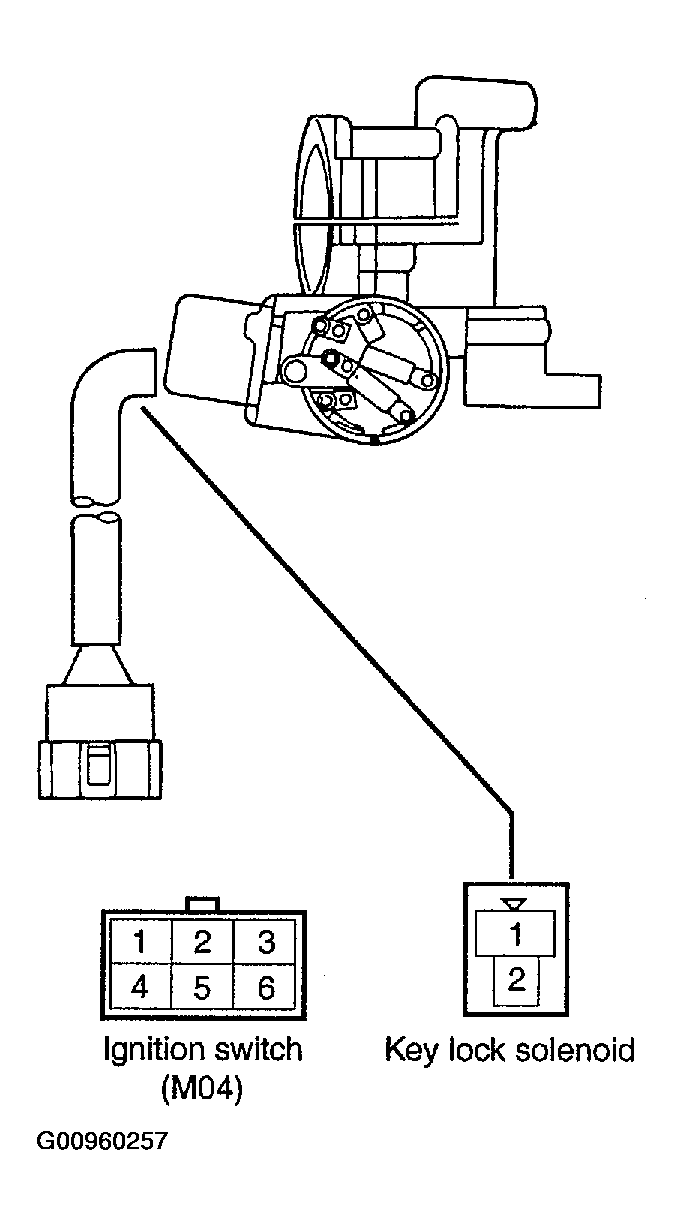

Fig 2: Identifying Ignition Switch Connector & Key Lock Solenoid Connector Terminals
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
