Inspection Procedure 1
WARNING:
This page is about a different variant/trim than selected.

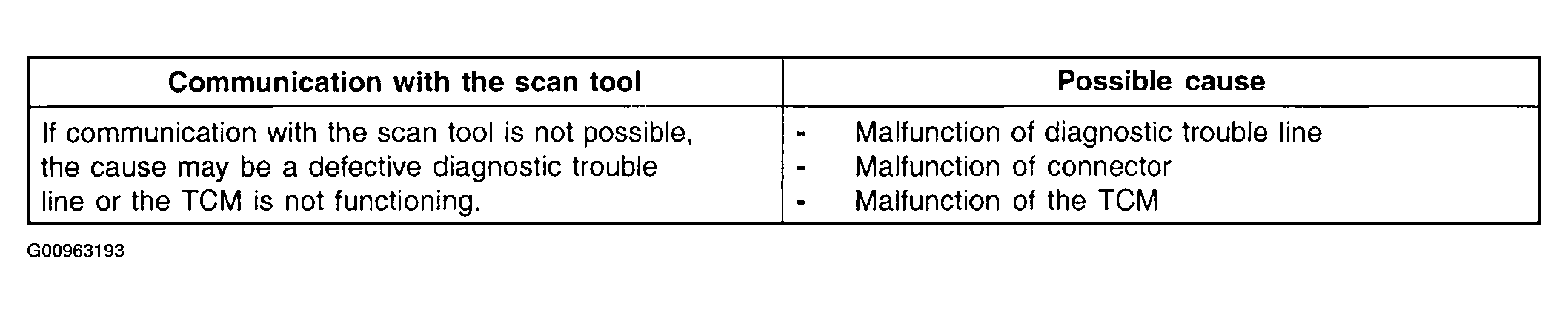

Fig 1: No Communication With Scan Tool Possible Causes Table
Courtesy of HYUNDAI MOTOR CO.

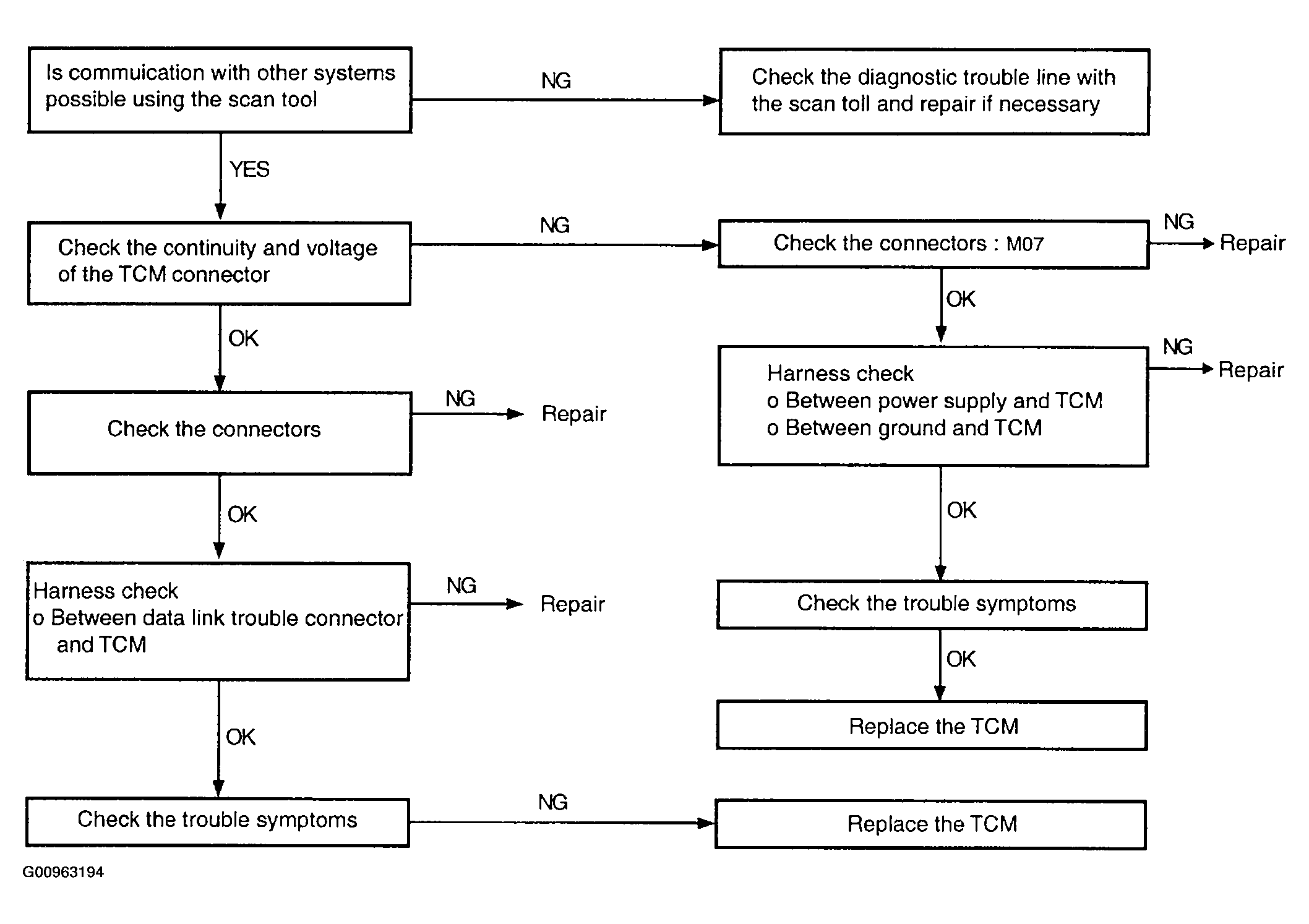

Fig 2: No Communication With Scan Tool Diagnostic Flow Chart
Courtesy of HYUNDAI MOTOR CO.
