Section 1 (Automatic Transaxle System)
>>
Automatic Transaxle System
>>
Inspection Process For Trouble Symptoms
>>
Inspection Procedure 3
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Inspection Procedure 3
WARNING:
This page is about a different variant/trim than selected.

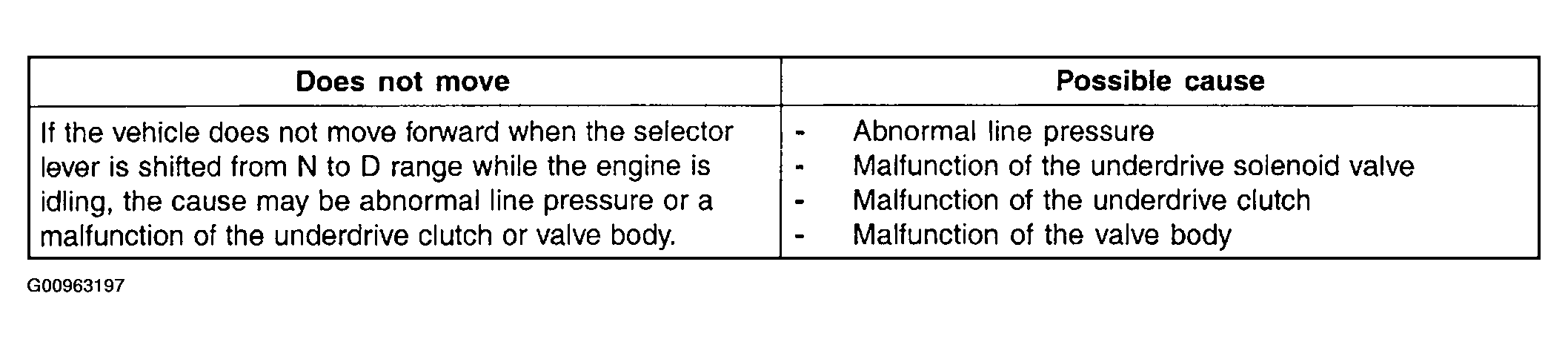

Fig 1: Vehicle Does Not Move Forward Possible Causes Table
Courtesy of HYUNDAI MOTOR CO.

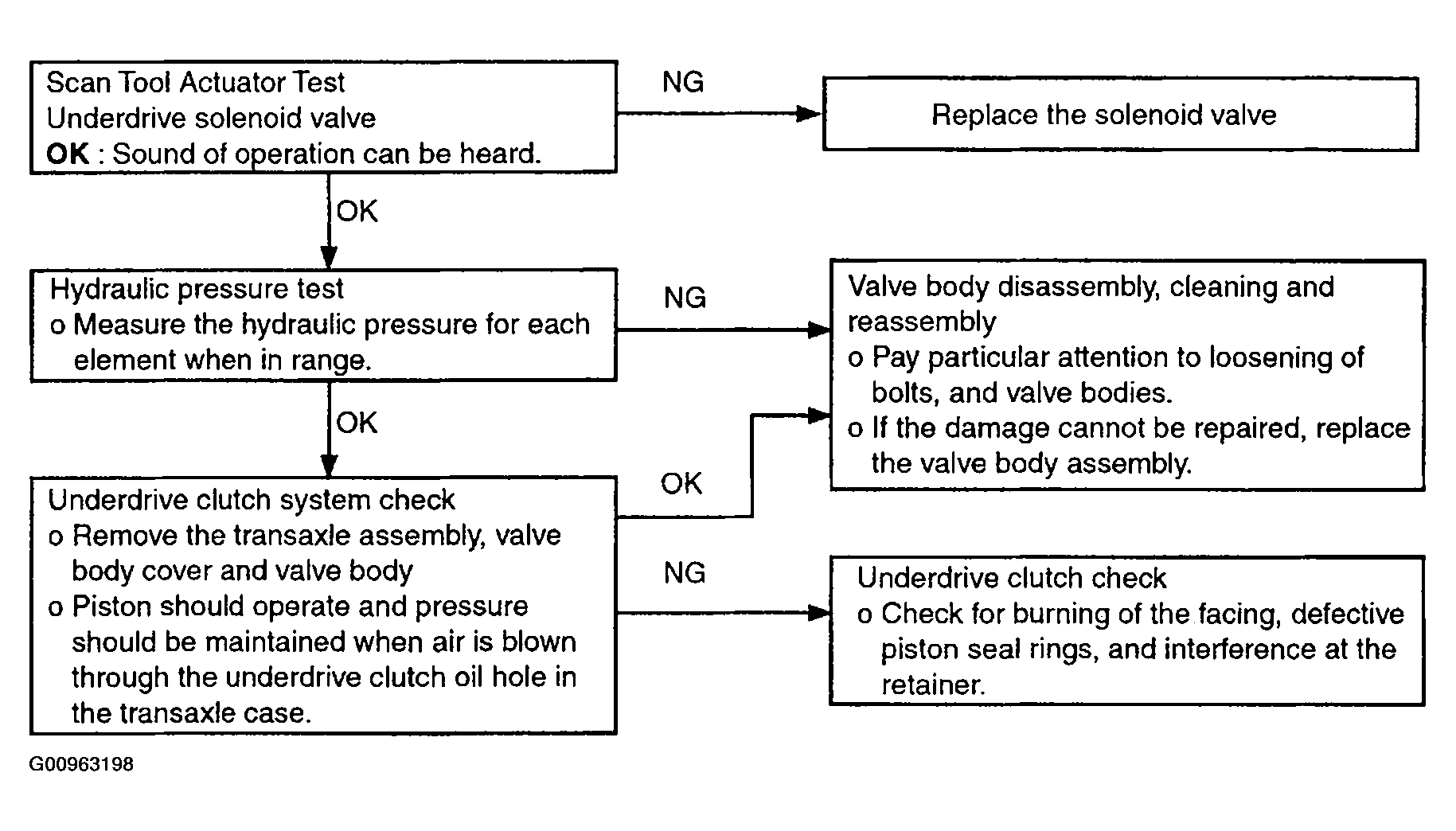

Fig 2: Vehicle Does Not Move Forward Diagnostic Flow Chart
Courtesy of HYUNDAI MOTOR CO.
