Manual Transaxle Shift Control: Removal

  1. After removing the shift knob, remove the floor console upper cover with a flat-bladed screwdriver.
    Fig 1: Identifying Shifter Knob Removed
    G00963311Courtesy of HYUNDAI MOTOR CO.
  2. Remove the screws and pull the floor console out.
    Fig 2: Identifying Floor Console Screws
    G00963312Courtesy of HYUNDAI MOTOR CO.
  3. Remove the floor console side cover.
    Fig 3: Identifying Floor Console Side Cover Screws
    G00963313Courtesy of HYUNDAI MOTOR CO.
  4. Remove the cotter pins and clips (shift lever side).
  5. Remove the shift lever assembly.
  6. Remove the retainer and bolts.
  7. Remove the cotter pins and clips (transaxle side).
  8. Remove the shift cable and select cable.

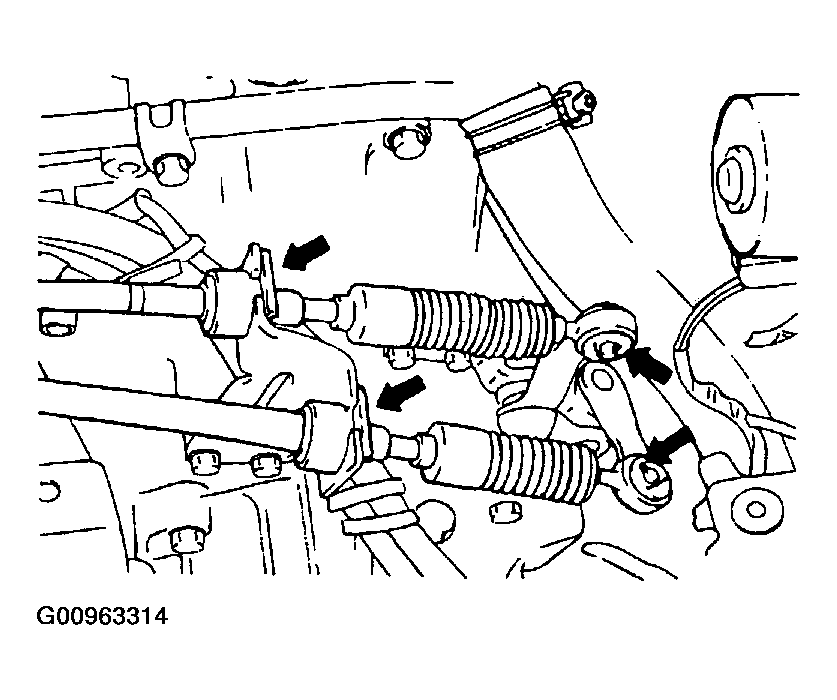

    Fig 4: Identifying Shift Cable & Select Cable
    G00963314Courtesy of HYUNDAI MOTOR CO.
