Brakes and Traction Control: Specifications

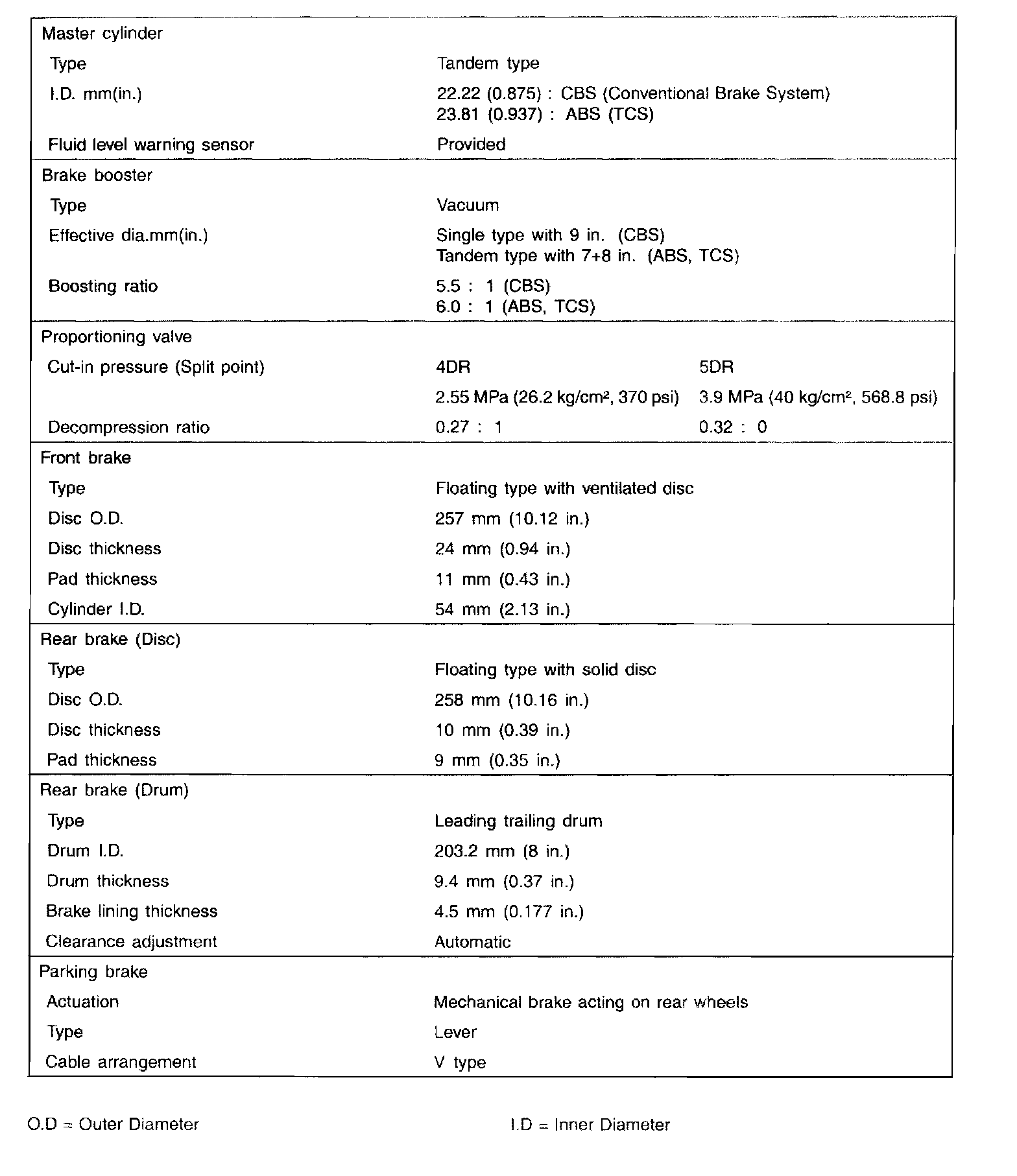

SPECIFICATIONS

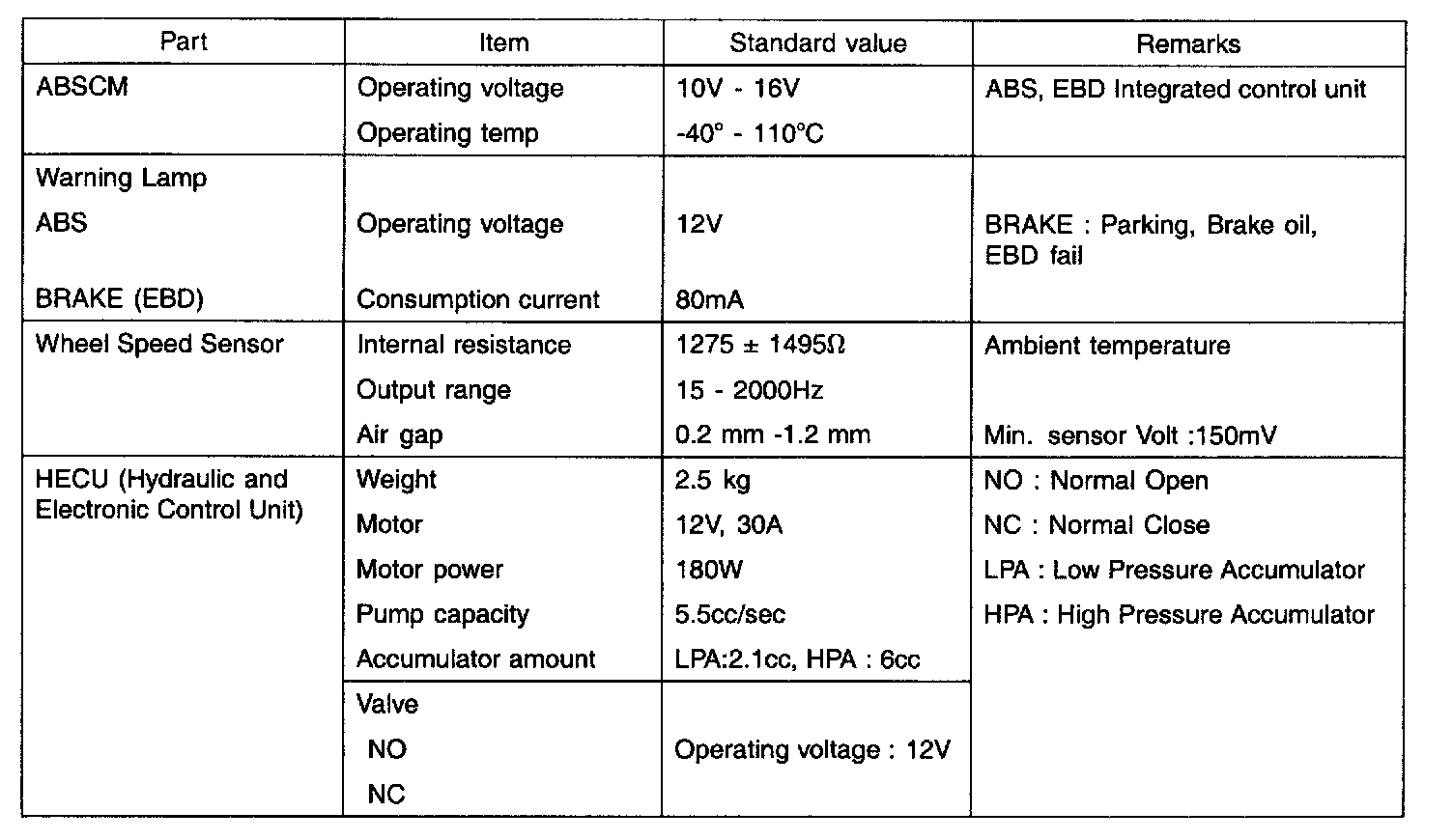

SPECIFICATION (ABS)

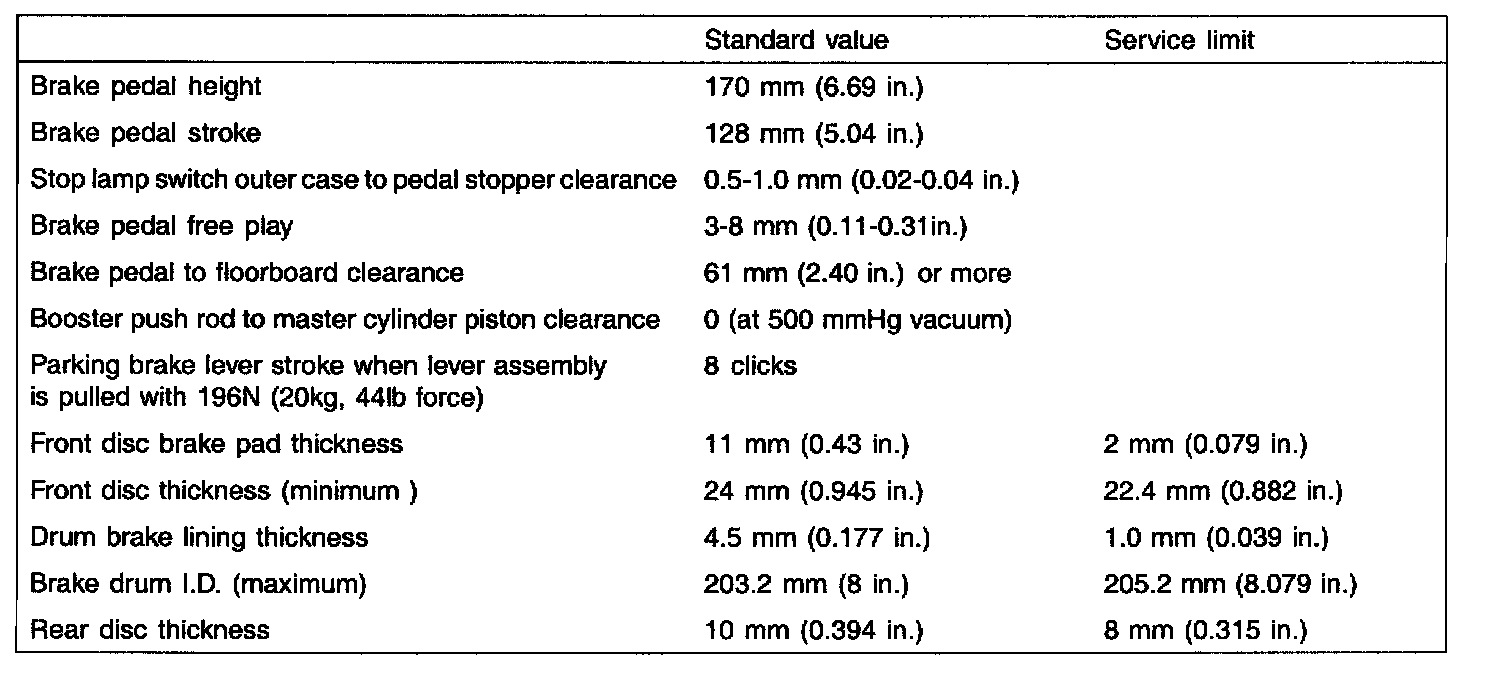

SERVICE STANDARD





TIGHTENING TORQUE

CAUTION: Replace self-locking nuts with new ones after removal.





TIGHTENING TORQUE (ABS)
