Control Assembly, HVAC

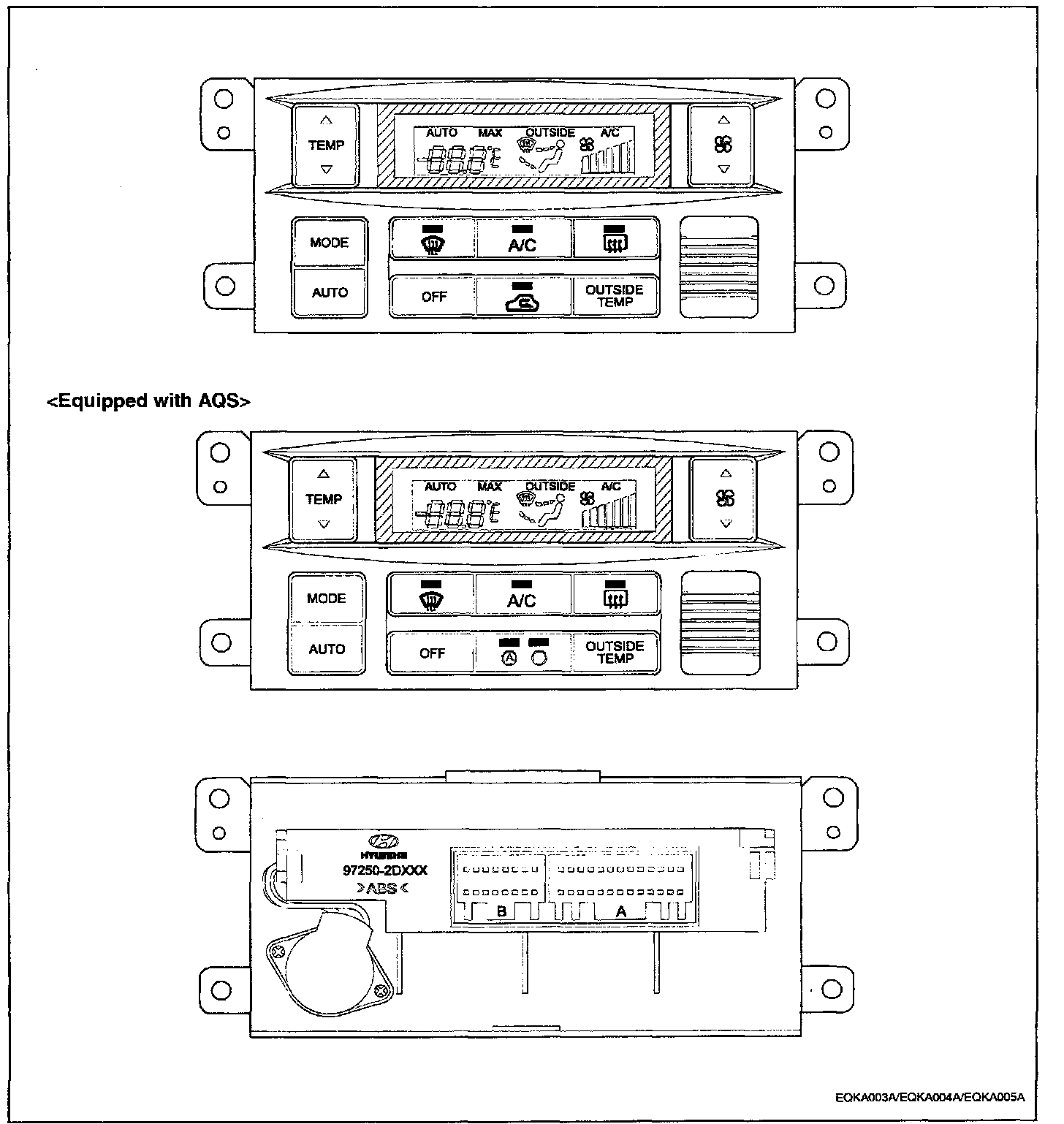

Control Panel, Full Automatic A/C (FATC):



FATC Control Unit Pin Configuration:

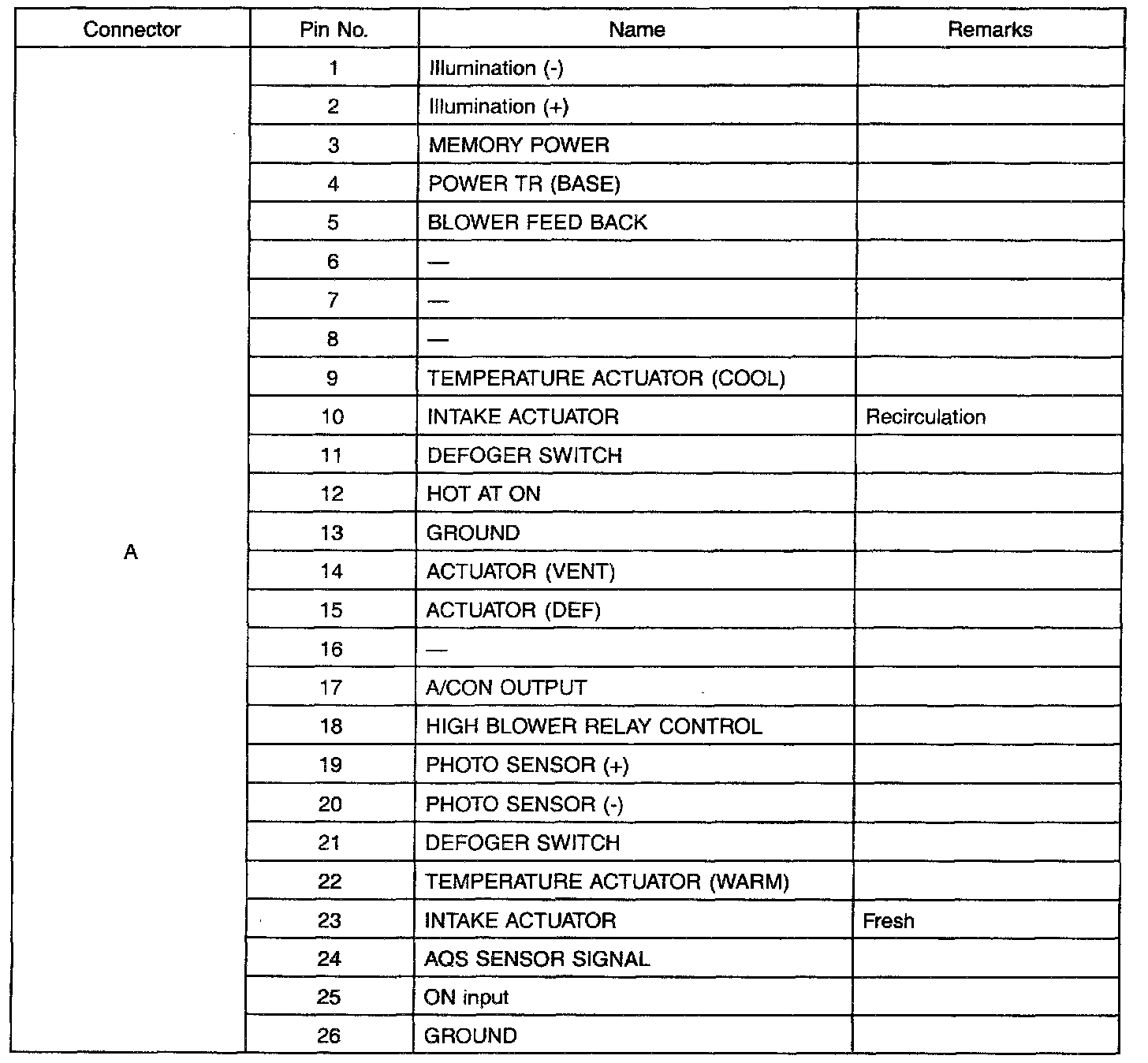

Connector A (Pin Nos: 1 - 26):



Connector B (Pin Nos: 1 - 16):
