Tightening Torque

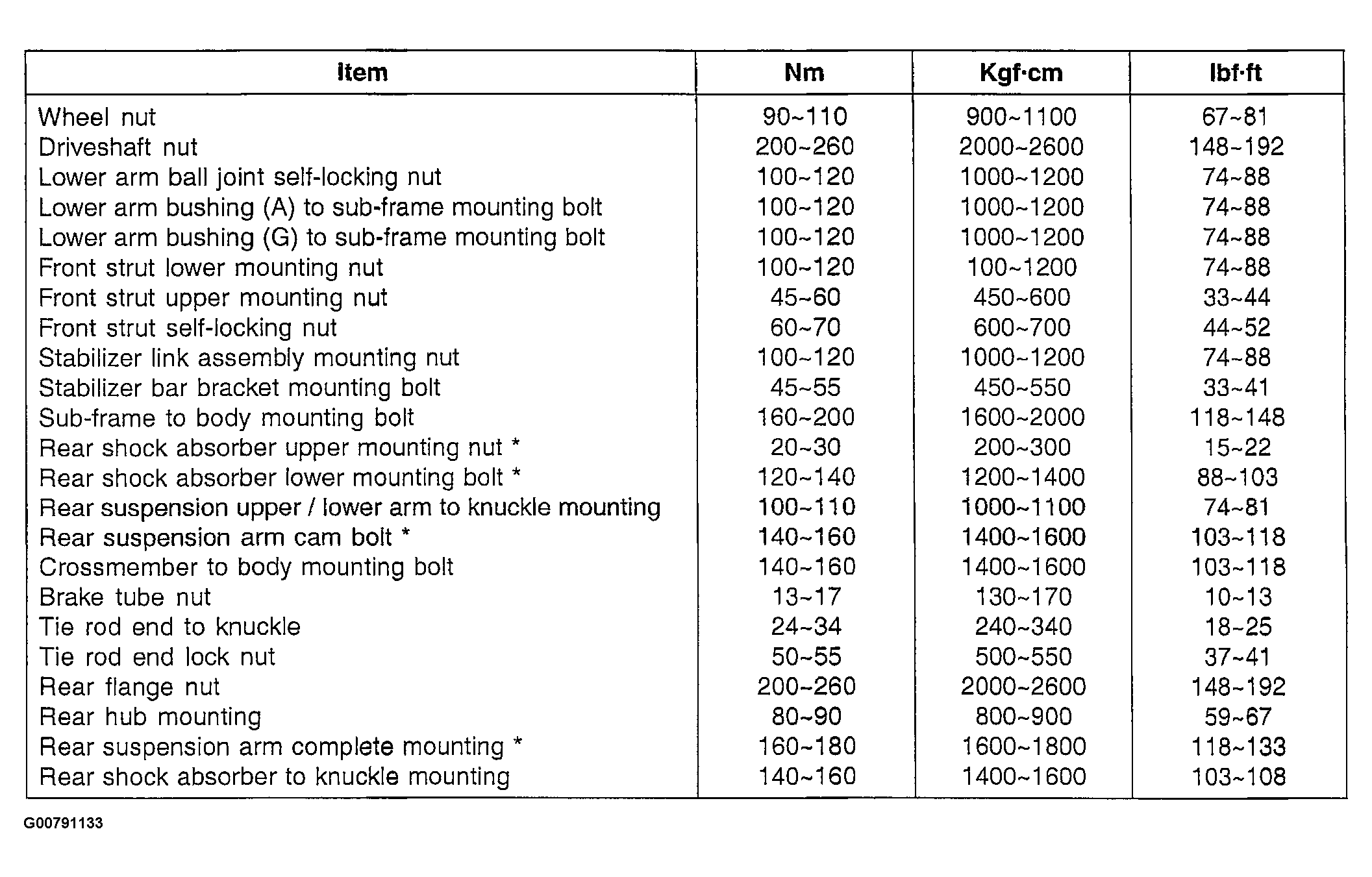

Fig 1: Tightening Torque Table
Courtesy of HYUNDAI MOTOR CO.
CAUTION:
Replace the self-locking nuts with new ones after removal.
'*' marks indicate parts which should be temporarily tightened, and then fully tightened with the vehicle on the ground in an unladen condition.
