Manual A/C Compressor Controls: Compressor: Components

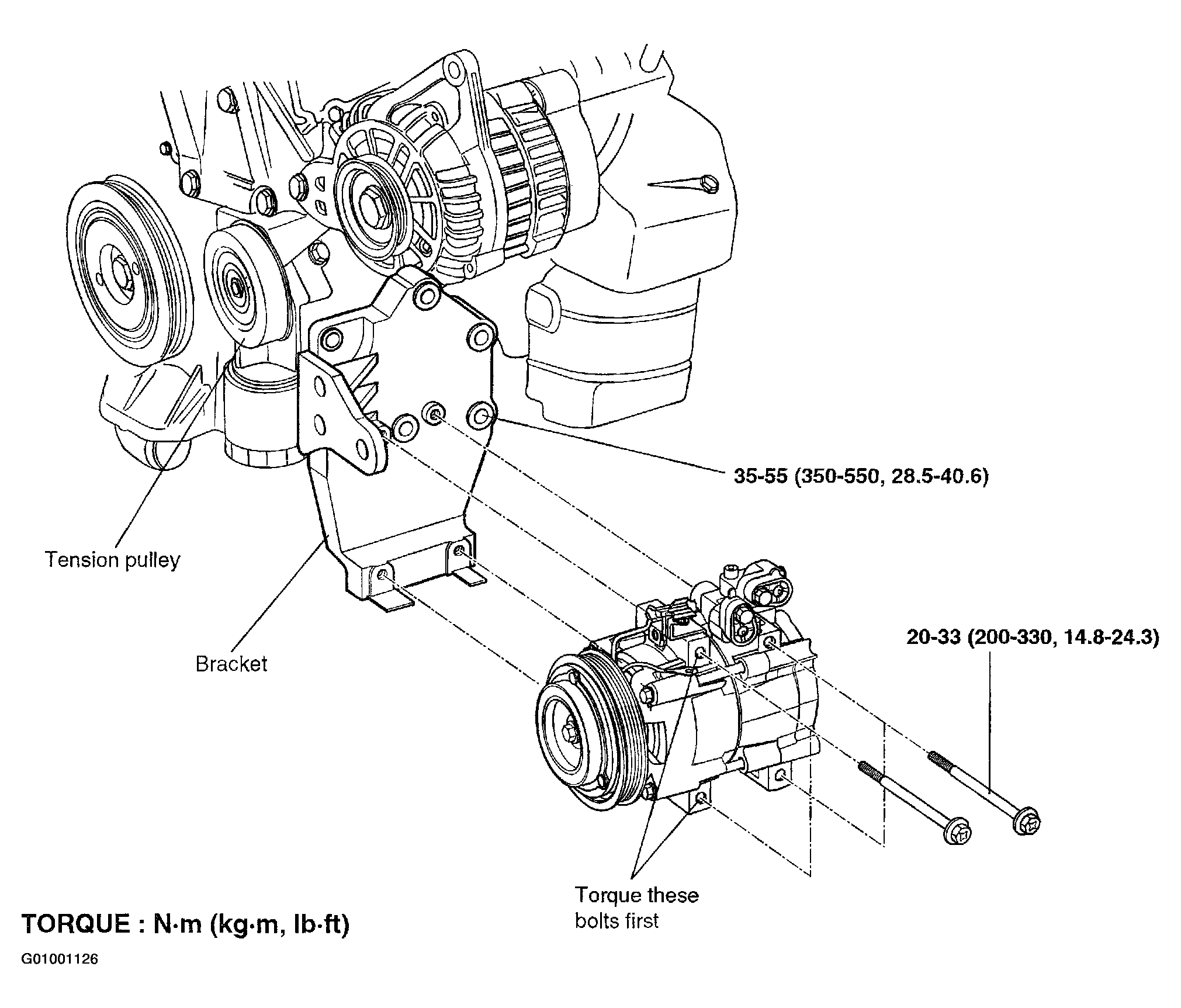

Fig 1: Compressor Components
G01001126Courtesy of HYUNDAI MOTOR CO.

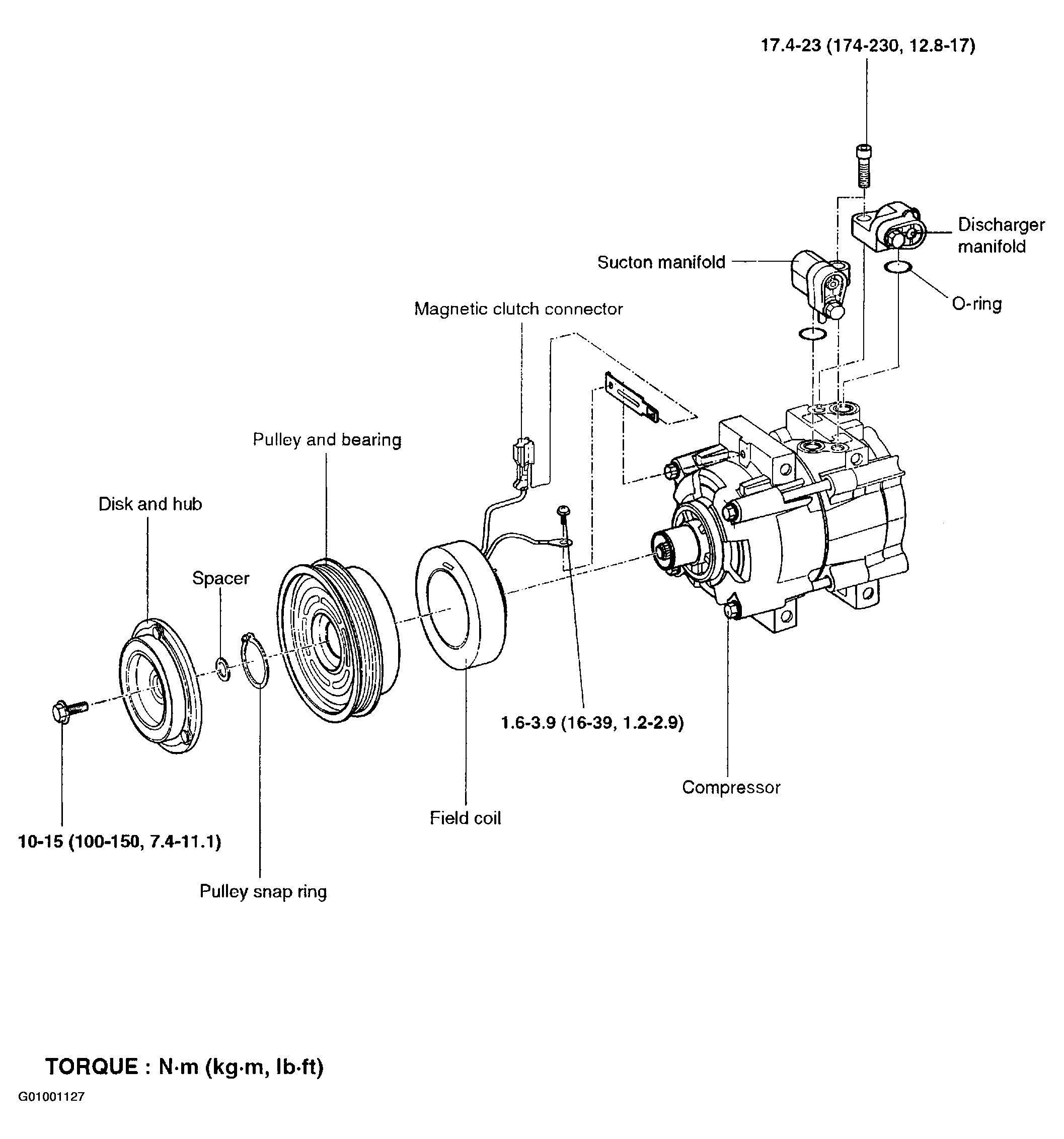

Fig 1: Exploded View Of Compressor Components
G01001127Courtesy of HYUNDAI MOTOR CO.
