Removal & Installation

  1. Remove the battery negative terminal.
  2. Disconnect the accelerator cable and cruise control cable from throttle assembly by turning the throttle bellcrank to full open position.
  3. Disconnect the accelerator cable from the accelerator pedal connection.
  4. Remove the accelerator cable mounting bolts.

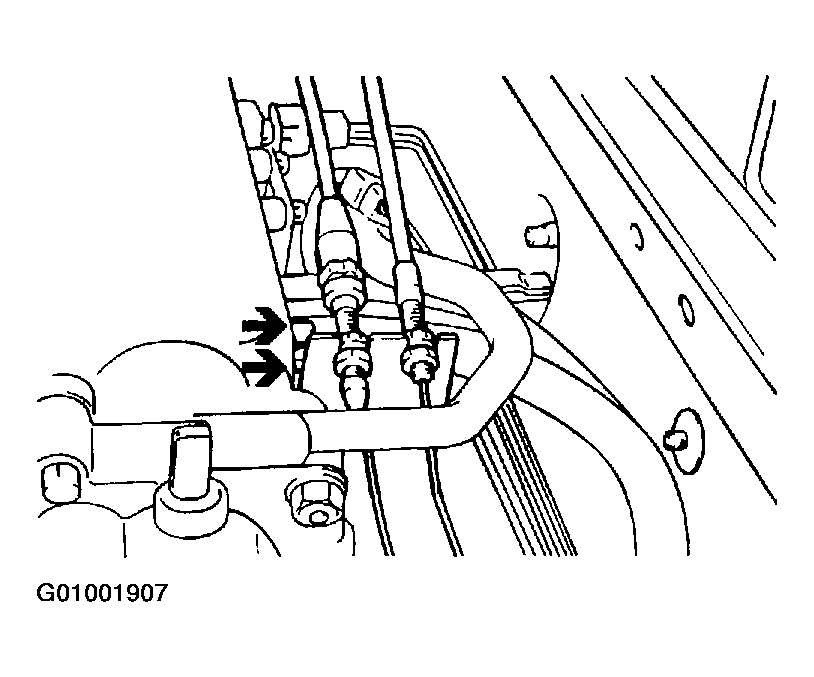

    Fig 1: Identifying Accelerator Mounting Bolts
    G01001907Courtesy of HYUNDAI MOTOR CO.
  5. Remove the actuator unit mounting bolt.
  6. Installation is the reverse of removal.

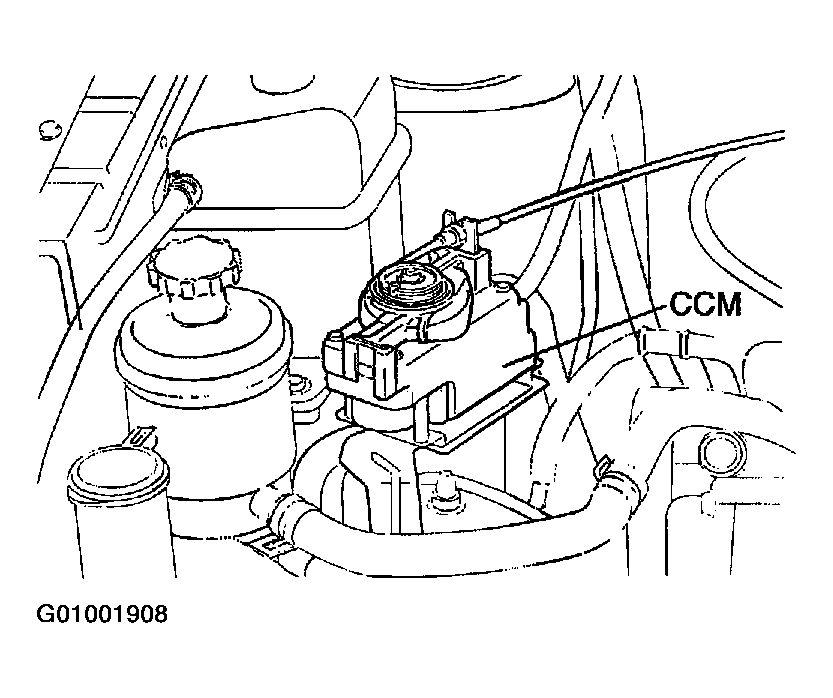

    Fig 2: Identifying Cruise Control Actuator Unit
    G01001908Courtesy of HYUNDAI MOTOR CO.
