Abs (Anti-Lock Brake System): Specification

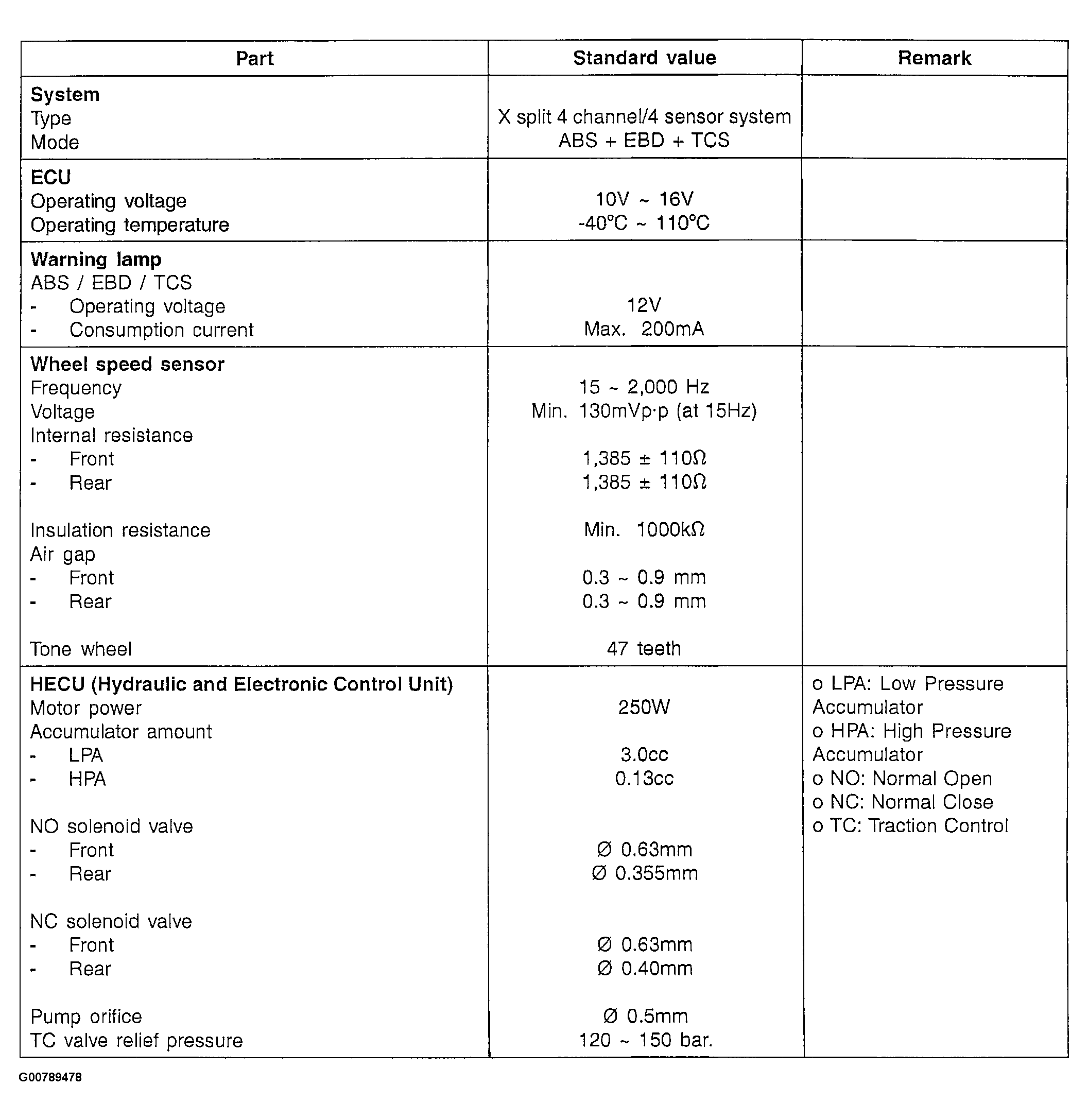

Fig 1: Anti-Lock Brake System Specification Table
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
