Engine And Transaxle Assembly: Removal

  1. Remove the battery.
  2. Detach the air cleaner.

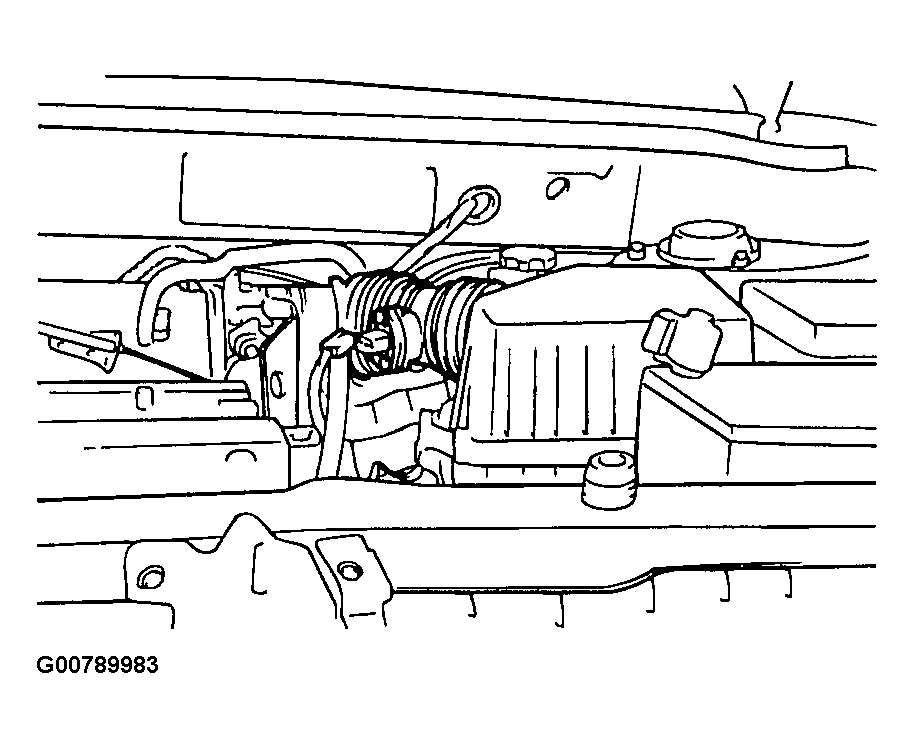

    Fig 1: View Of Air Cleaner
    G00789983Courtesy of HYUNDAI MOTOR CO.
  3. Disconnect the engine harness connectors.
    1. Engine wiring connectors (alternator, starter, etc.)
    2. TPS connector
    3. Power steering switch connector, oil pressure gauge connector.
    4. Back up lamp switch connector.
    5. A/T solenoid, inhibitor switch connector.
    6. Coolant temperature sensor.
    7. Ignition coil, power TR connector.
    8. Idle speed control valve (ISC) connector.
    9. MAP and ATS connectors.
    10. Oxygen sensor connector.

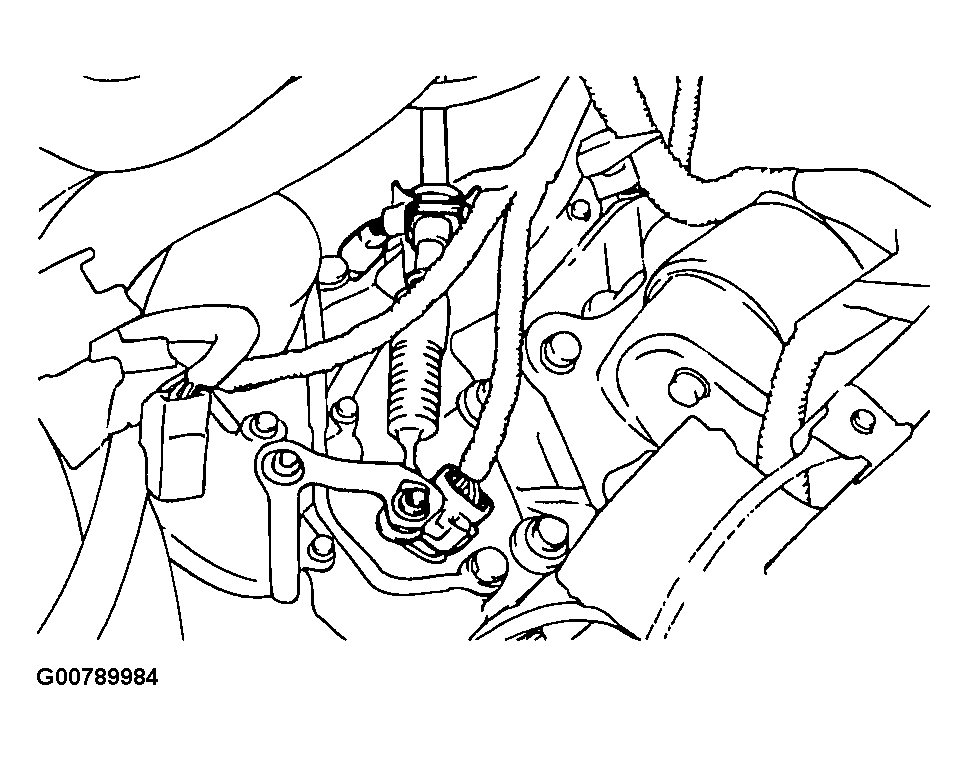

    Fig 2: View Transmission Range Sensor
    G00789984Courtesy of HYUNDAI MOTOR CO.

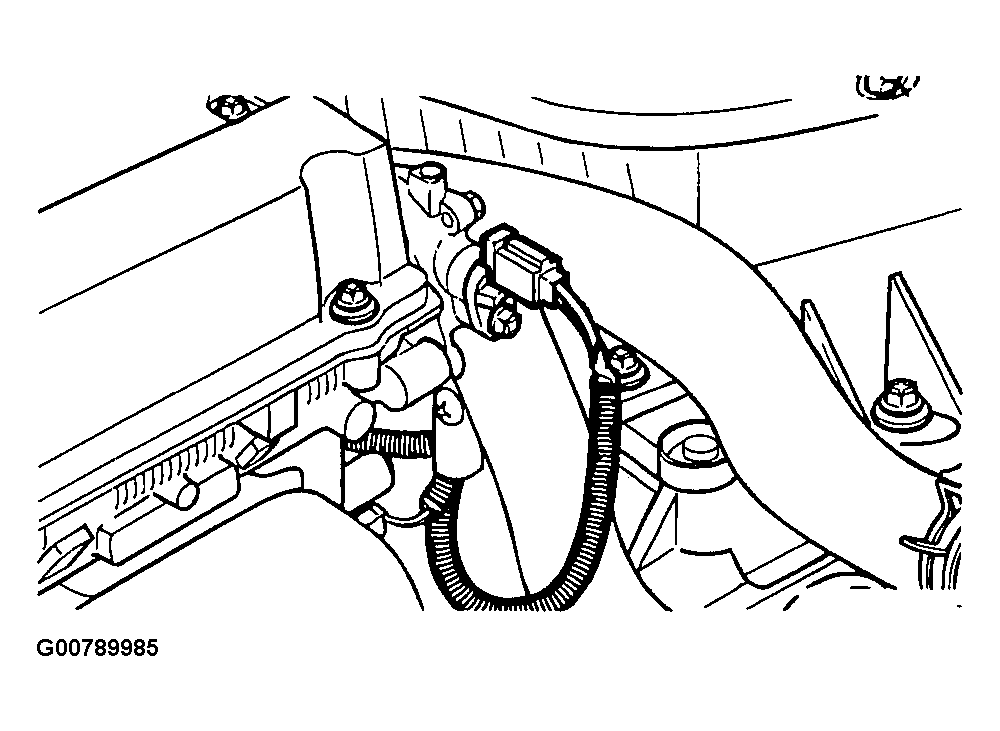

    Fig 3: View Engine Coolant Temperature Sensor
    G00789985Courtesy of HYUNDAI MOTOR CO.
  4. Drain the engine coolant.
  5. For a vehicle with automatic transaxles, disconnect the transaxle oil cooler hoses.
    NOTE: When disconnecting hoses, make identification marks to avoid making any mistake when installing them again.
    CAUTION: Be careful not to spill any of oil or fluid out of the hoses. Plug the openings to prevent the entry of foreign material.
  6. Disconnect the radiator upper and lower hoses on the engine side then remove the radiator assembly.

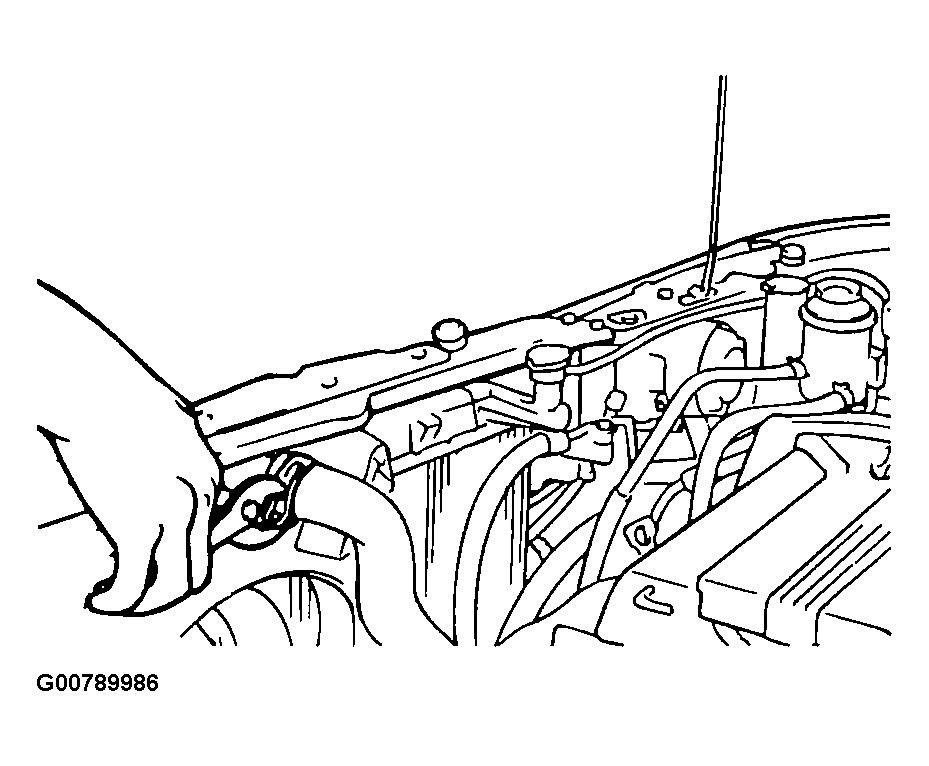

    Fig 4: Removing Upper Radiator Hose
    G00789986Courtesy of HYUNDAI MOTOR CO.
  7. Disconnect the engine ground.
  8. Disconnect the brake booster vacuum hose.

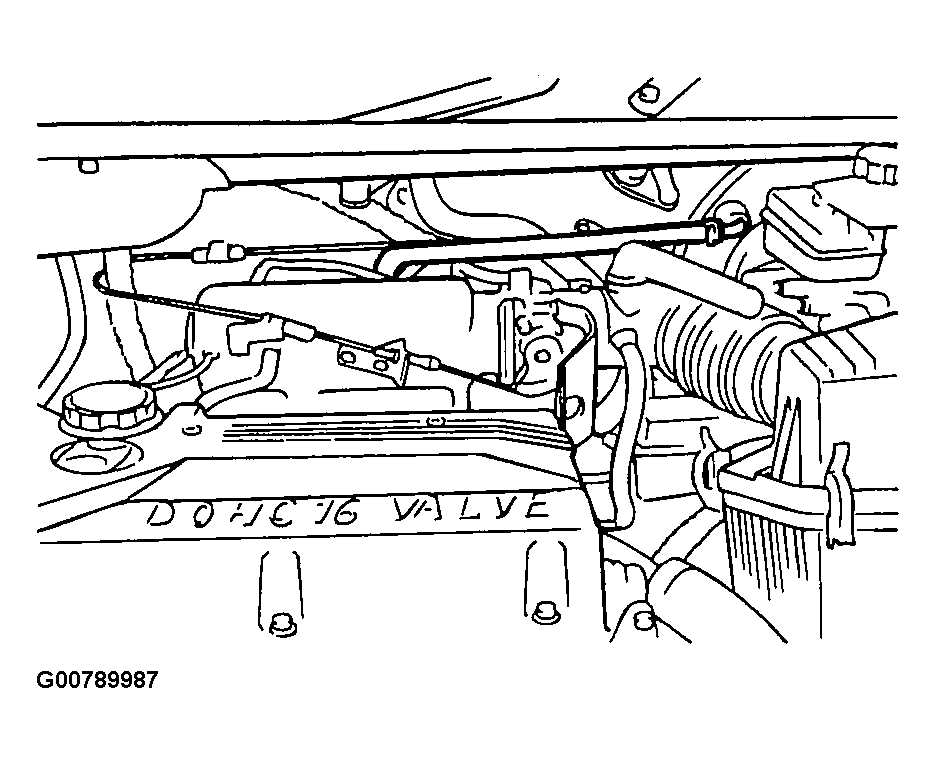

    Fig 5: Identifying Brake Booster Vacuum Hose
    G00789987Courtesy of HYUNDAI MOTOR CO.
  9. Disconnect the heater hoses (inlet and outlet) on the engine side.
  10. Disconnect the accelerator cable at the engine side.

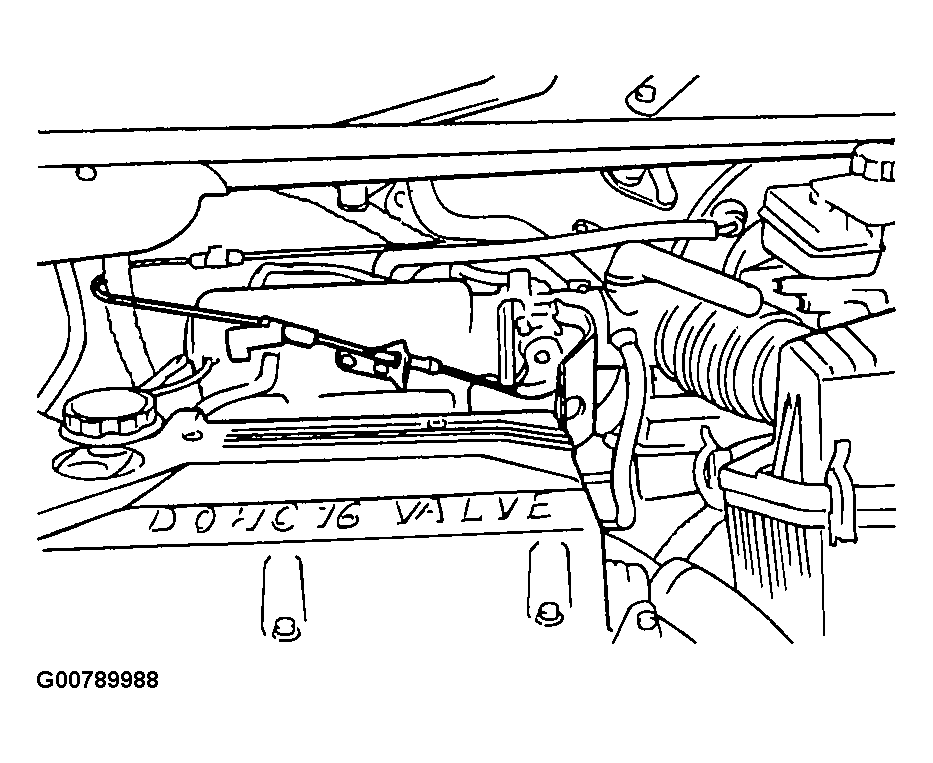

    Fig 6: Identifying Accelerator Cable
    G00789988Courtesy of HYUNDAI MOTOR CO.
  11. Using a special tool, remove the main fuel line at the delivery pipe (supply/return).
  12. Disconnect the speedometer cable from the transaxle.
  13. Disconnect the clutch cable or control cable from the transaxle.

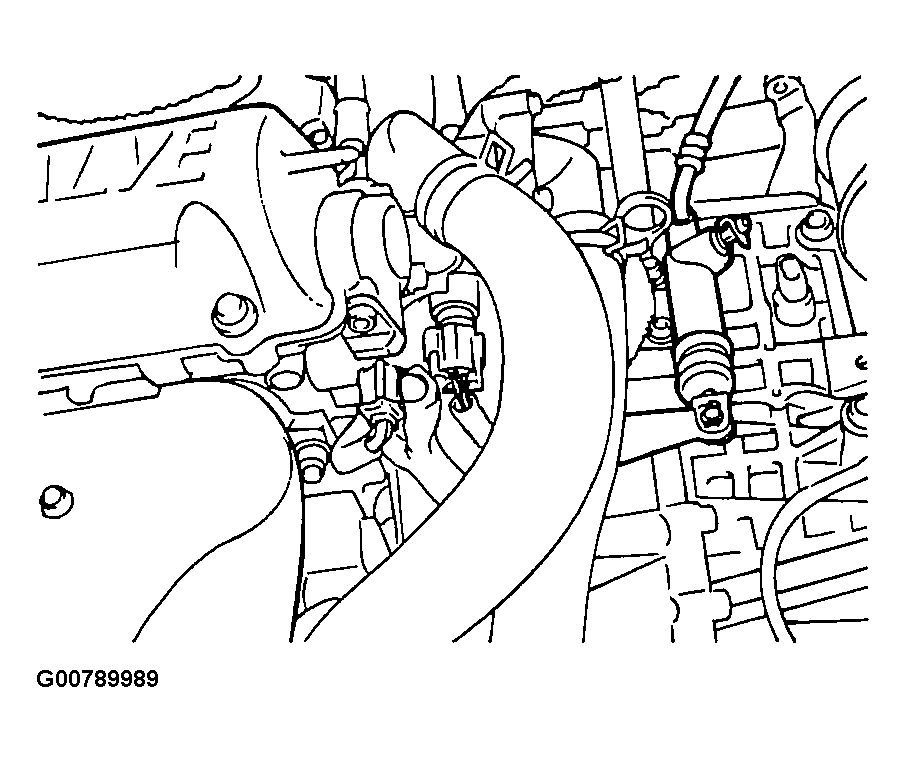

    Fig 7: Identifying Clutch Cable Or Control Cable
    G00789989Courtesy of HYUNDAI MOTOR CO.
  14. Disconnect the power steering suction hose and return hose from the pump.

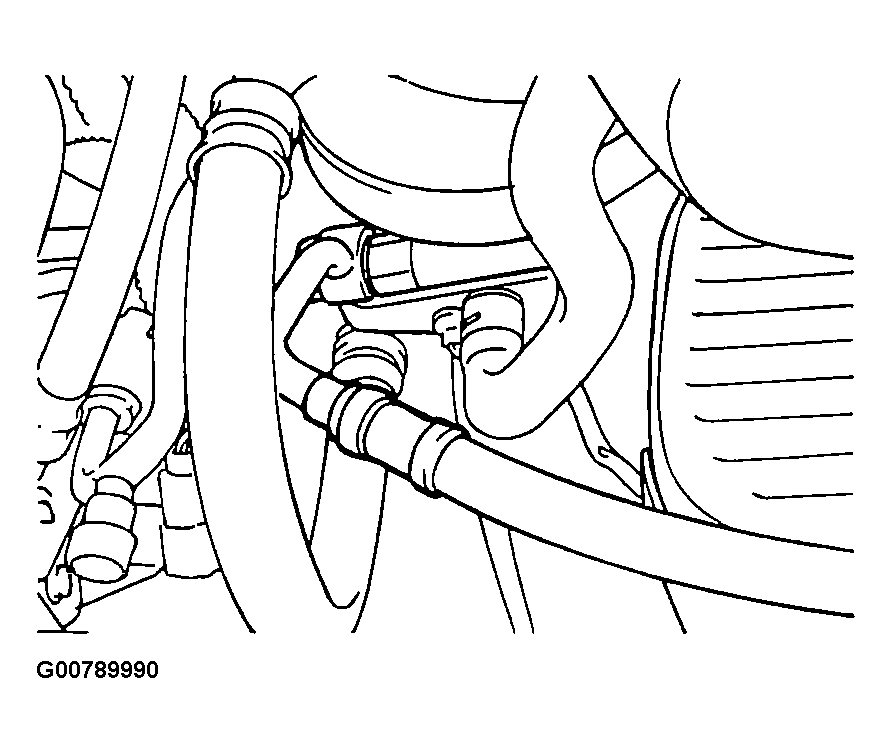

    Fig 8: Identifying Power Steering Hoses
    G00789990Courtesy of HYUNDAI MOTOR CO.
  15. Detach the steering dust cover in the engine compartment and then disconnect the gear box universal joint bolt.
    NOTE: Make sure to make identification marks between the universal joint and the gear box for reassembly.

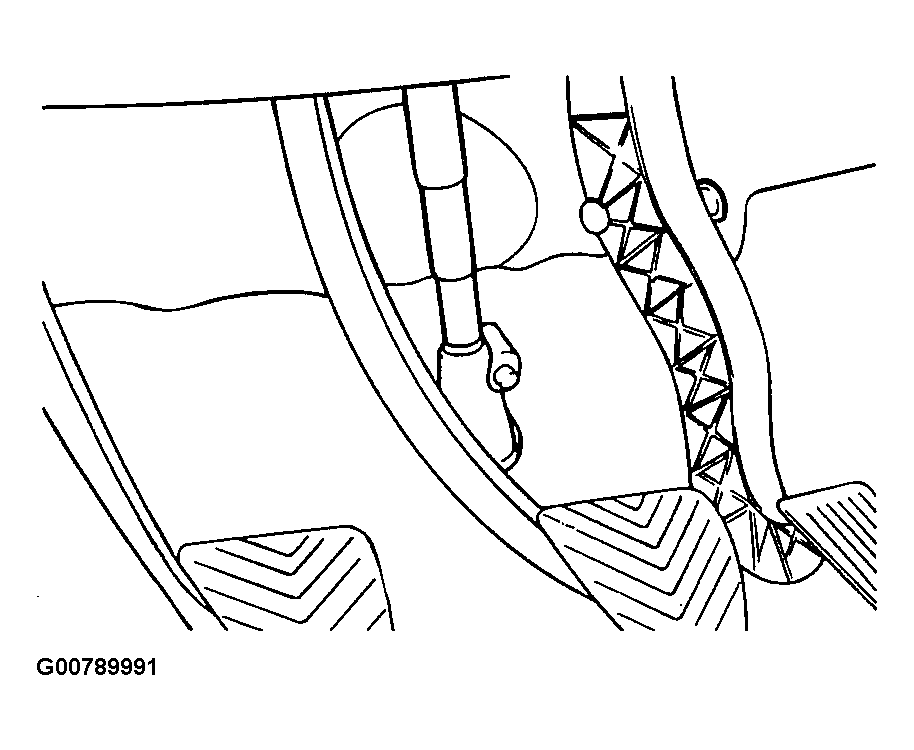

    Fig 9: Identifying Steering Column Through Floor Board Location
    G00789991Courtesy of HYUNDAI MOTOR CO.
  16. Raise the vehicle and then remove the front tire.
  17. Remove the calliper assembly from the knuckle. Tie it using wire, hang it from the suspension.

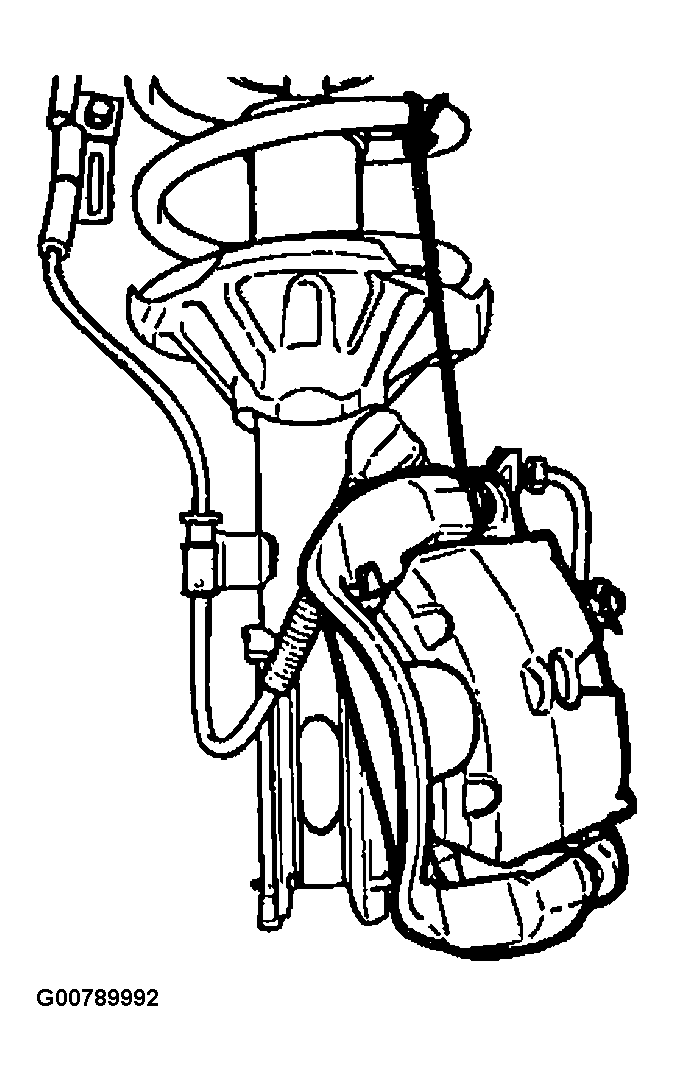

    Fig 10: Supporting Brake Caliper
    G00789992Courtesy of HYUNDAI MOTOR CO.
  18. Loosen the strut lower bolt and then remove it.

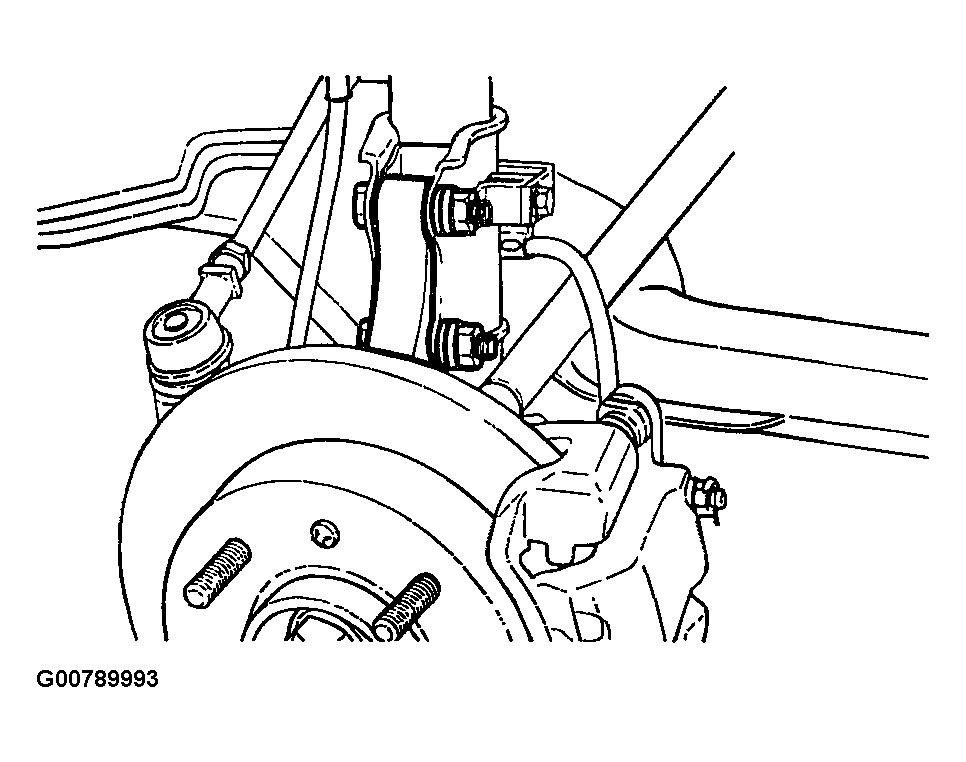

    Fig 11: Removing Knuckle From Strut
    G00789993Courtesy of HYUNDAI MOTOR CO.
  19. Drain the transaxle oil.

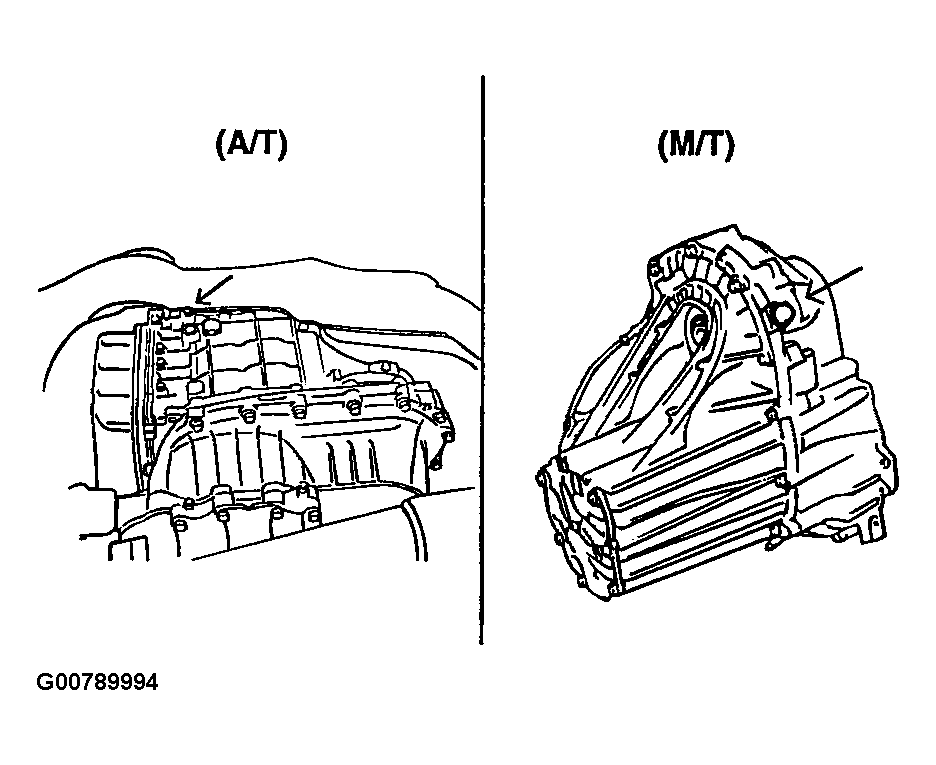

    Fig 12: Identifying Drain Plug Bolt
    G00789994Courtesy of HYUNDAI MOTOR CO.
  20. Remove the front muffler bolts.

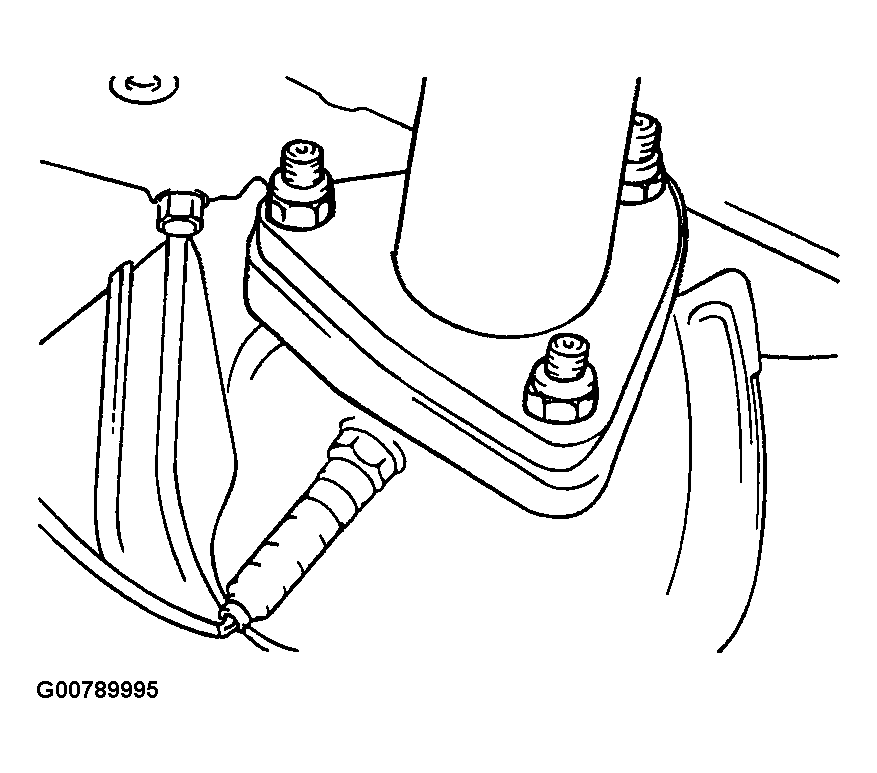

    Fig 13: Identifying Front Muffler Bolts
    G00789995Courtesy of HYUNDAI MOTOR CO.
  21. Remove the transaxle control rod and extension rod (M/T only).

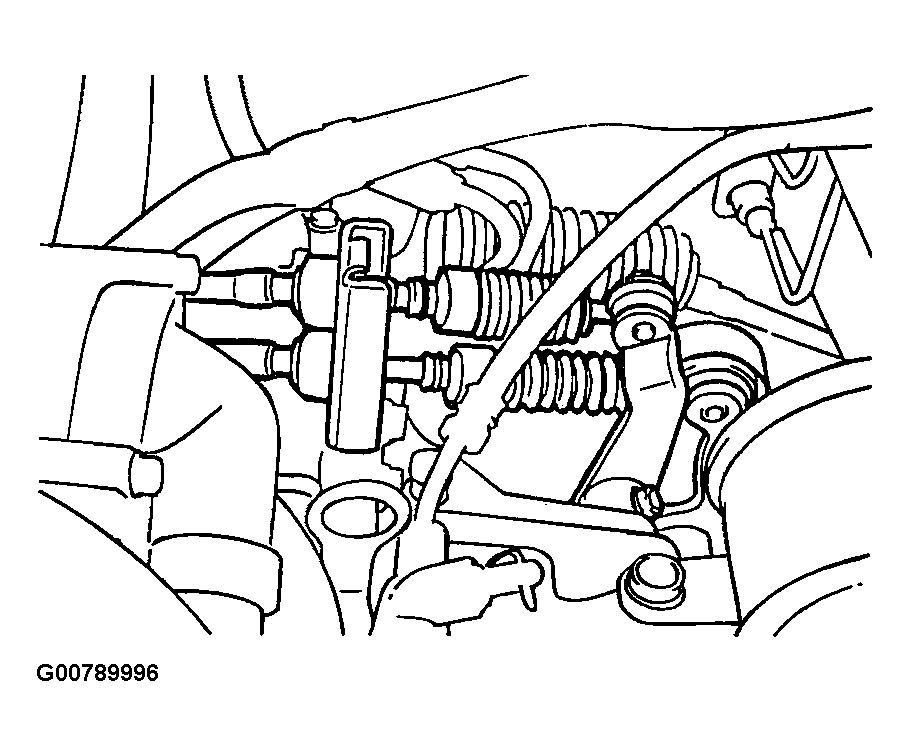

    Fig 14: Identifying Transaxle Control Rod & Extension Rod
    G00789996Courtesy of HYUNDAI MOTOR CO.
  22. Put the special fixture on the T/M jack and then adjust it to the sub-frame.
    NOTE: Check that all the cables, harness connector and hose are disconnected from the engine and transaxle assembly.

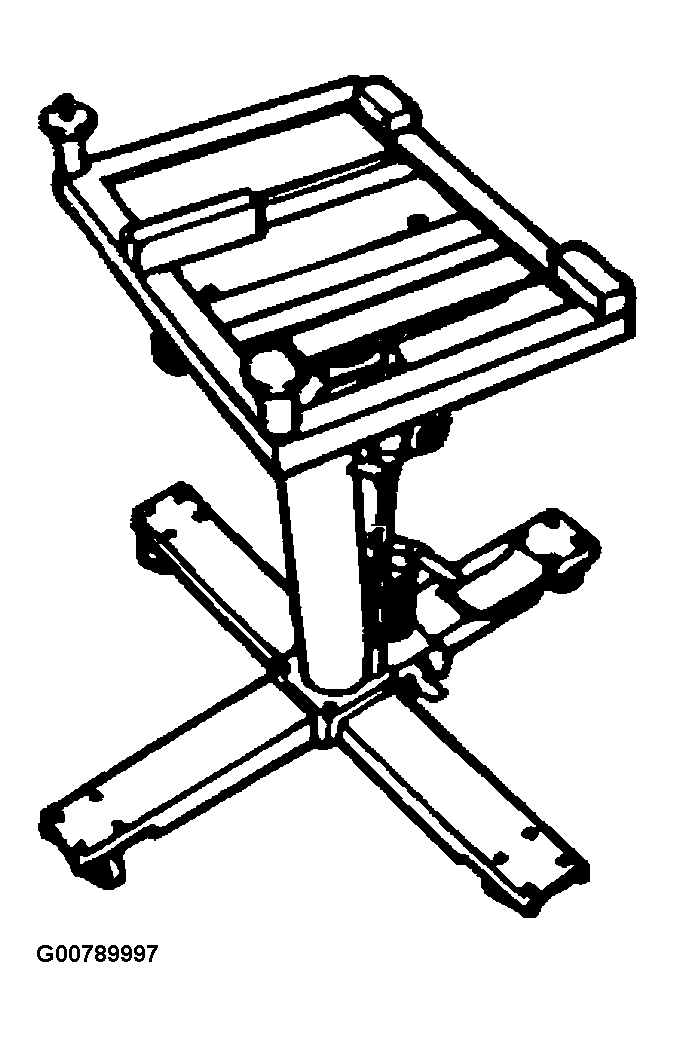

    Fig 15: Identifying T/M Jack
    G00789997Courtesy of HYUNDAI MOTOR CO.
  23. Remove the engine mounting bracket and the transaxle mounting bracket.

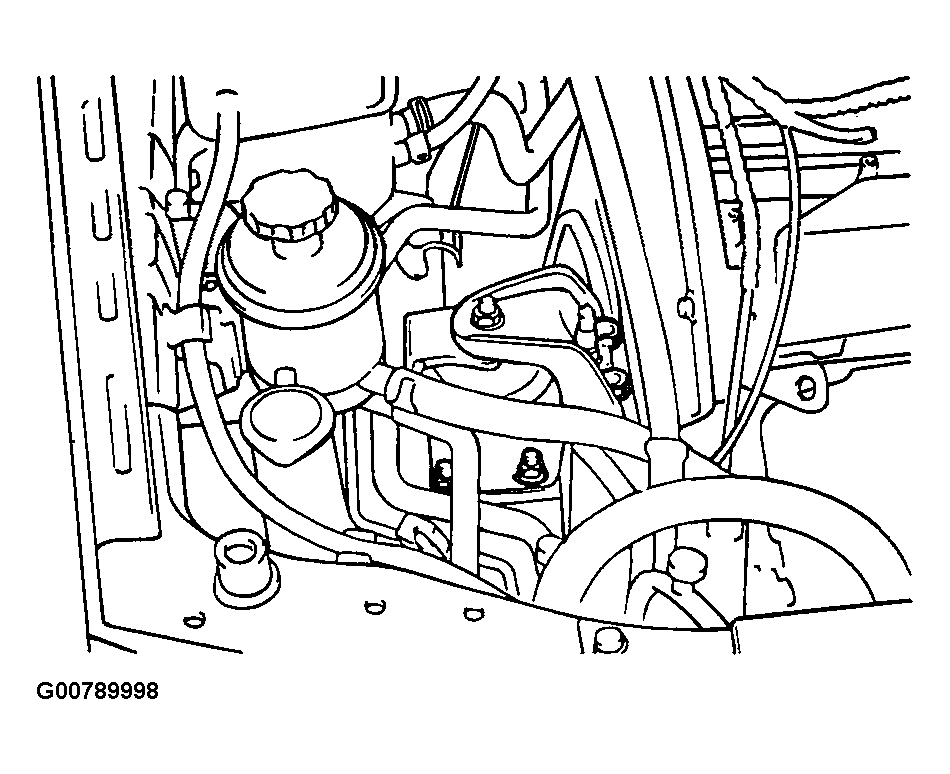

    Fig 16: Identifying Engine Mount Bracket
    G00789998Courtesy of HYUNDAI MOTOR CO.

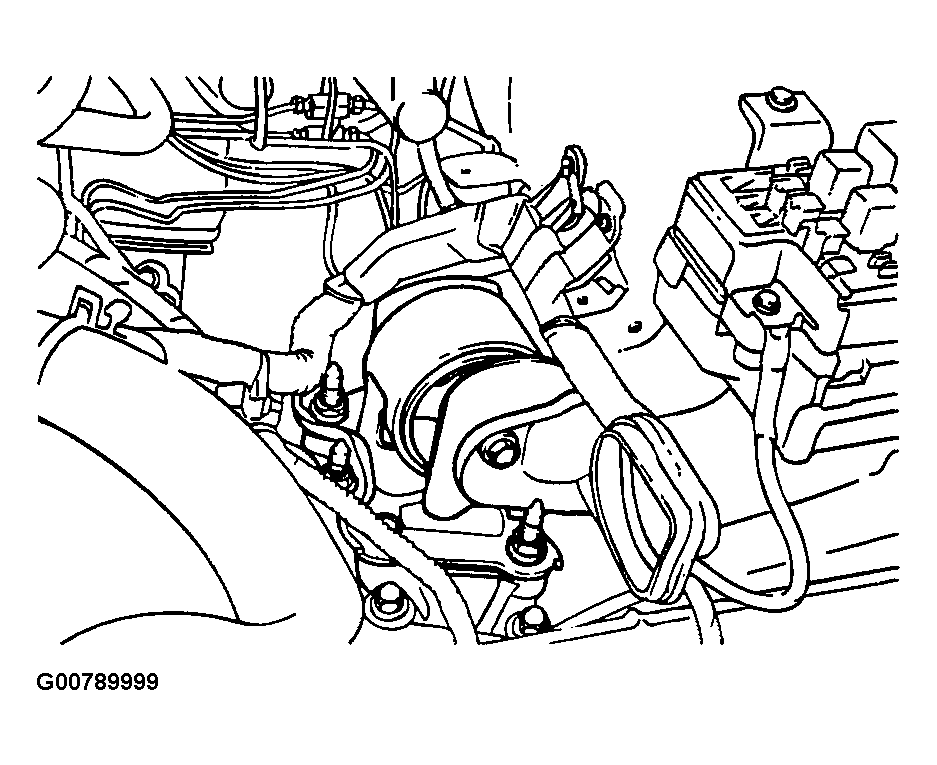

    Fig 17: Identifying Transaxle Mounting Bracket
    G00789999Courtesy of HYUNDAI MOTOR CO.
  24. Remove the sub-frame installation bolts.

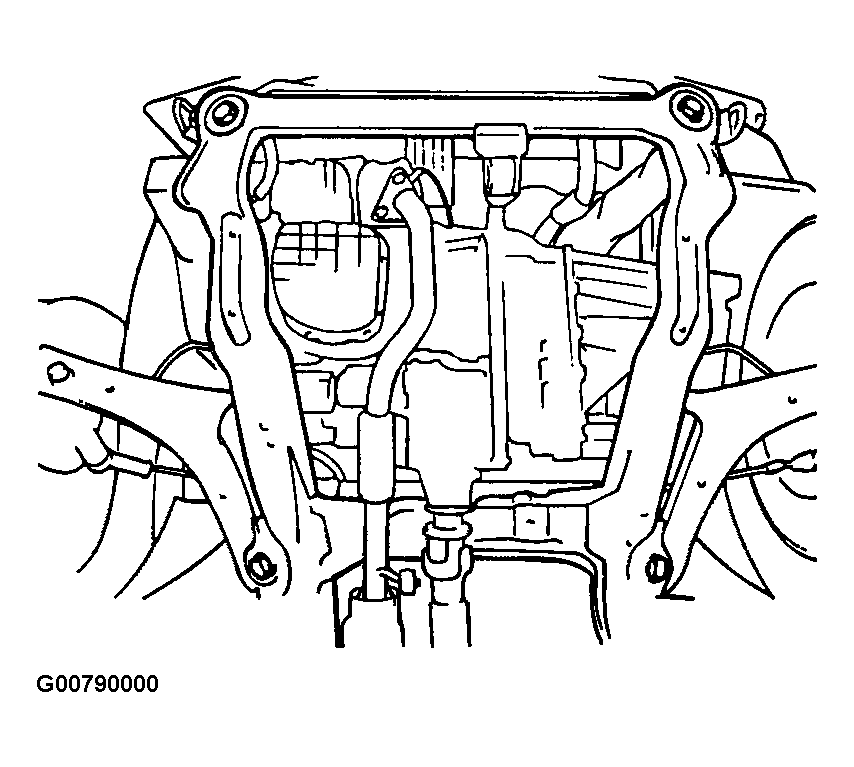

    Fig 18: Identifying Sub-Frame Bolts
    G00790000Courtesy of HYUNDAI MOTOR CO.
  25. After removing the drive shaft, lower the engine and transaxle assembly on the jack then, remove the front roll stopper and the rear roll stopper.
  26. Remove the engine and transaxle assembly as a unit.

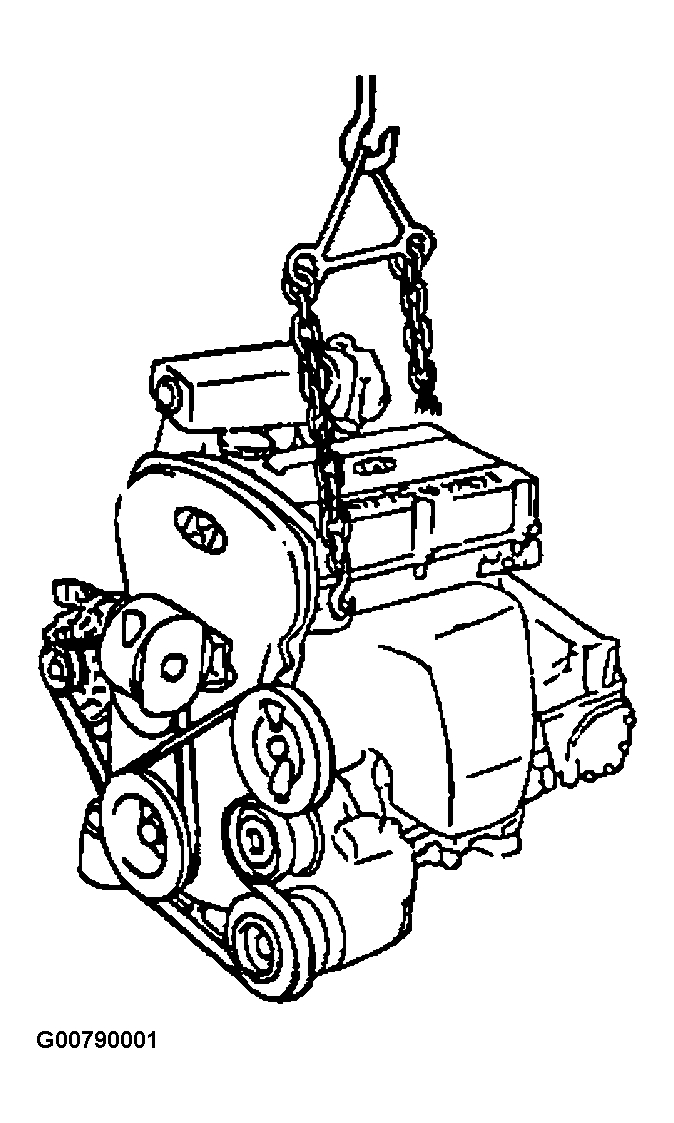

    Fig 19: Removing Engine
    G00790001Courtesy of HYUNDAI MOTOR CO.
