Engine Mounting

  1. Remove the engine mounting insulator bolts.
  2. Remove the engine mounting bracket from the engine.

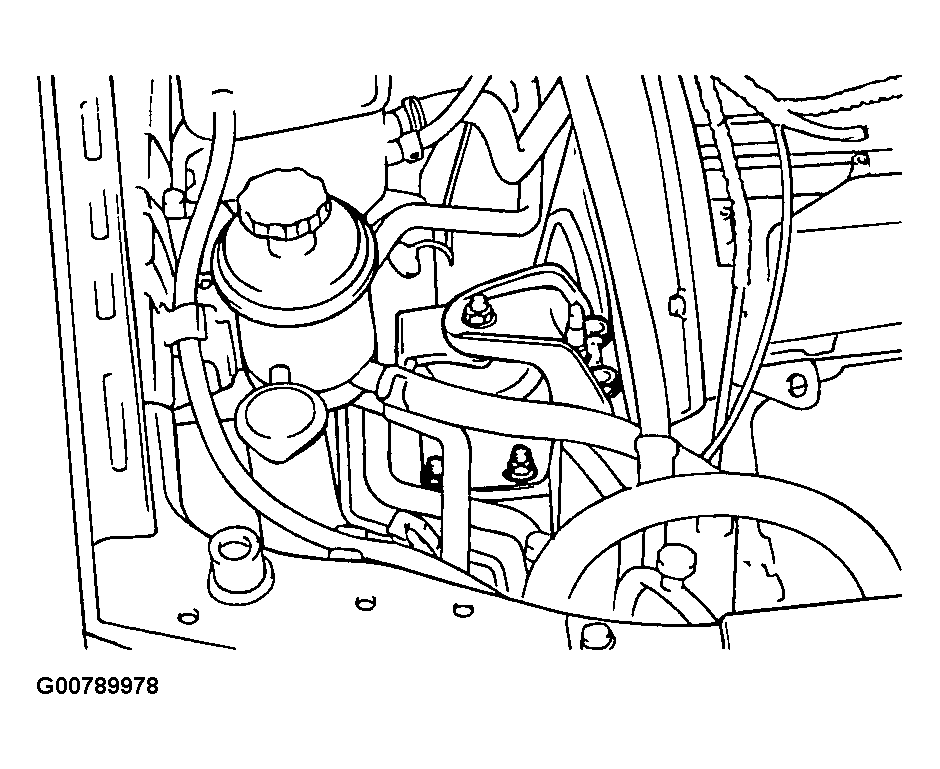

Fig 1: Identifying Engine Mounting Bracket
G00789978Courtesy of HYUNDAI MOTOR CO.
