Engine Mounts: Removal: Notes

Attach a chain or cable to the engine hooks and lift enough so that there is no pressure on the motor mounts.

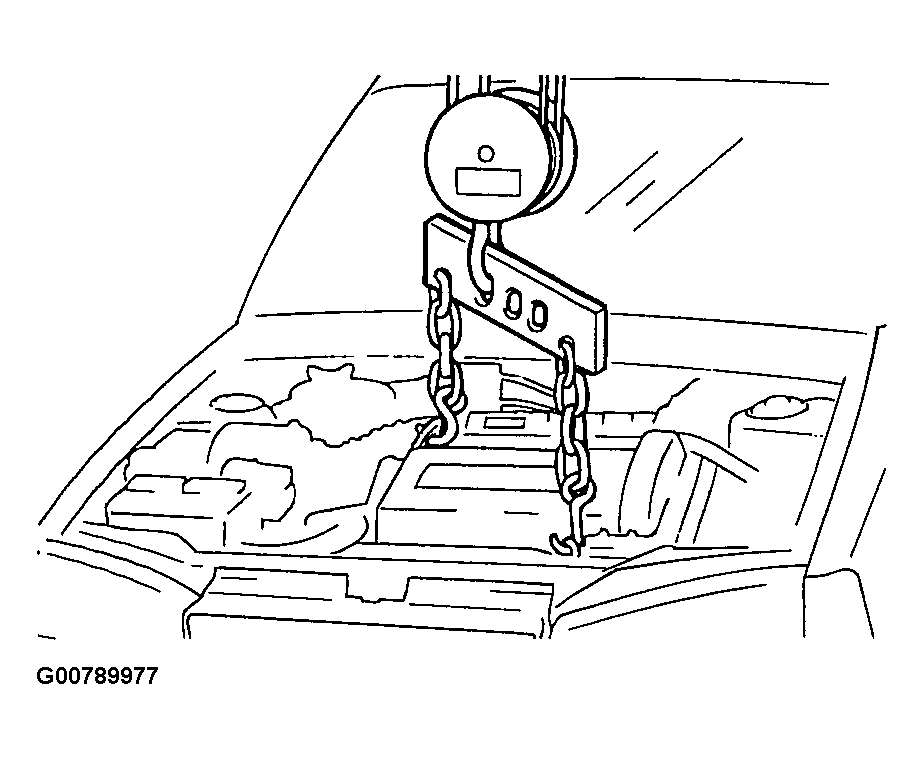

Fig 1: Lifting Engine
G00789977Courtesy of HYUNDAI MOTOR CO.
