Front Case And Lubrication System: Components

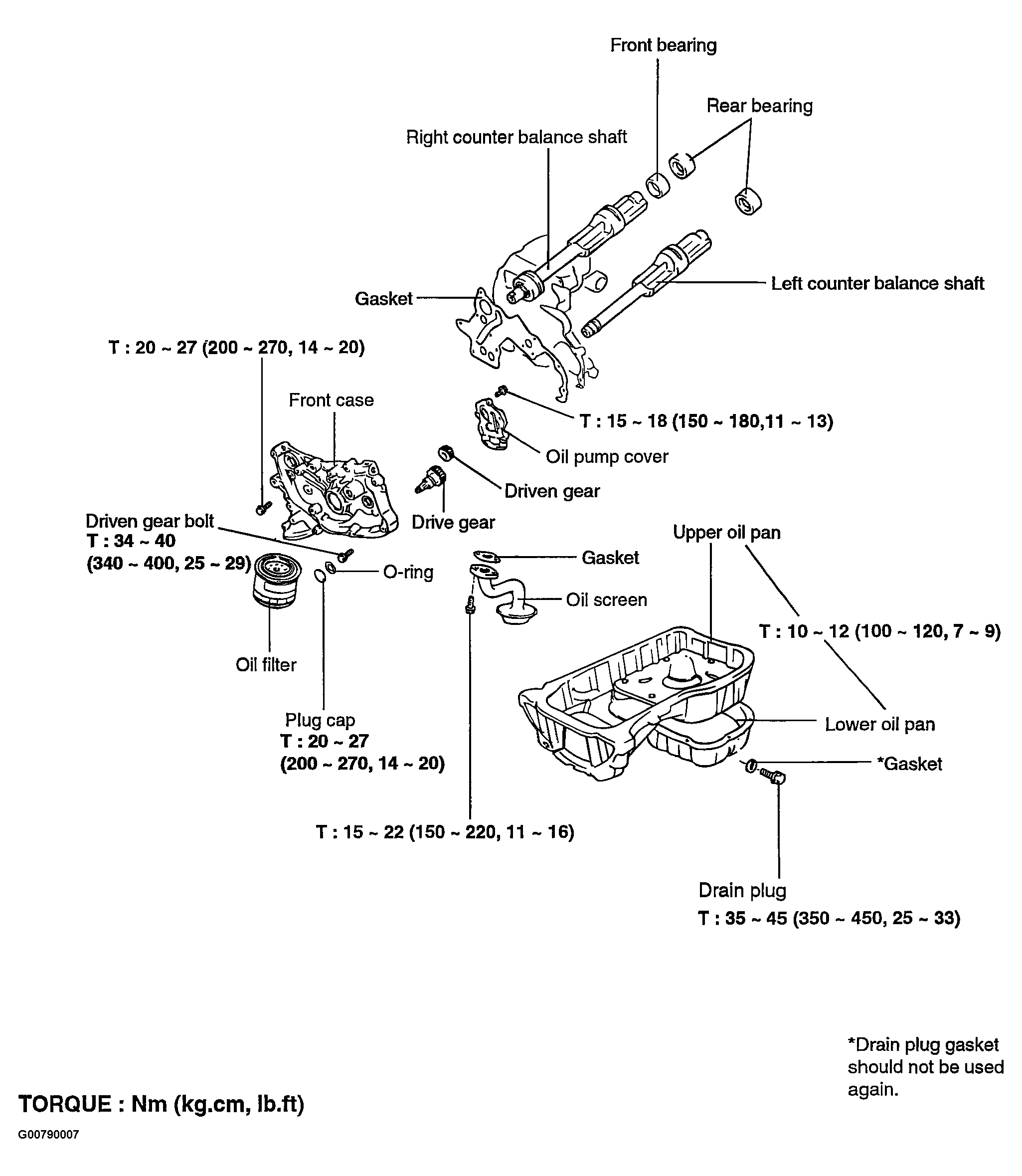

Fig 1: Front Case Components
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
