Intake Manifold: Components

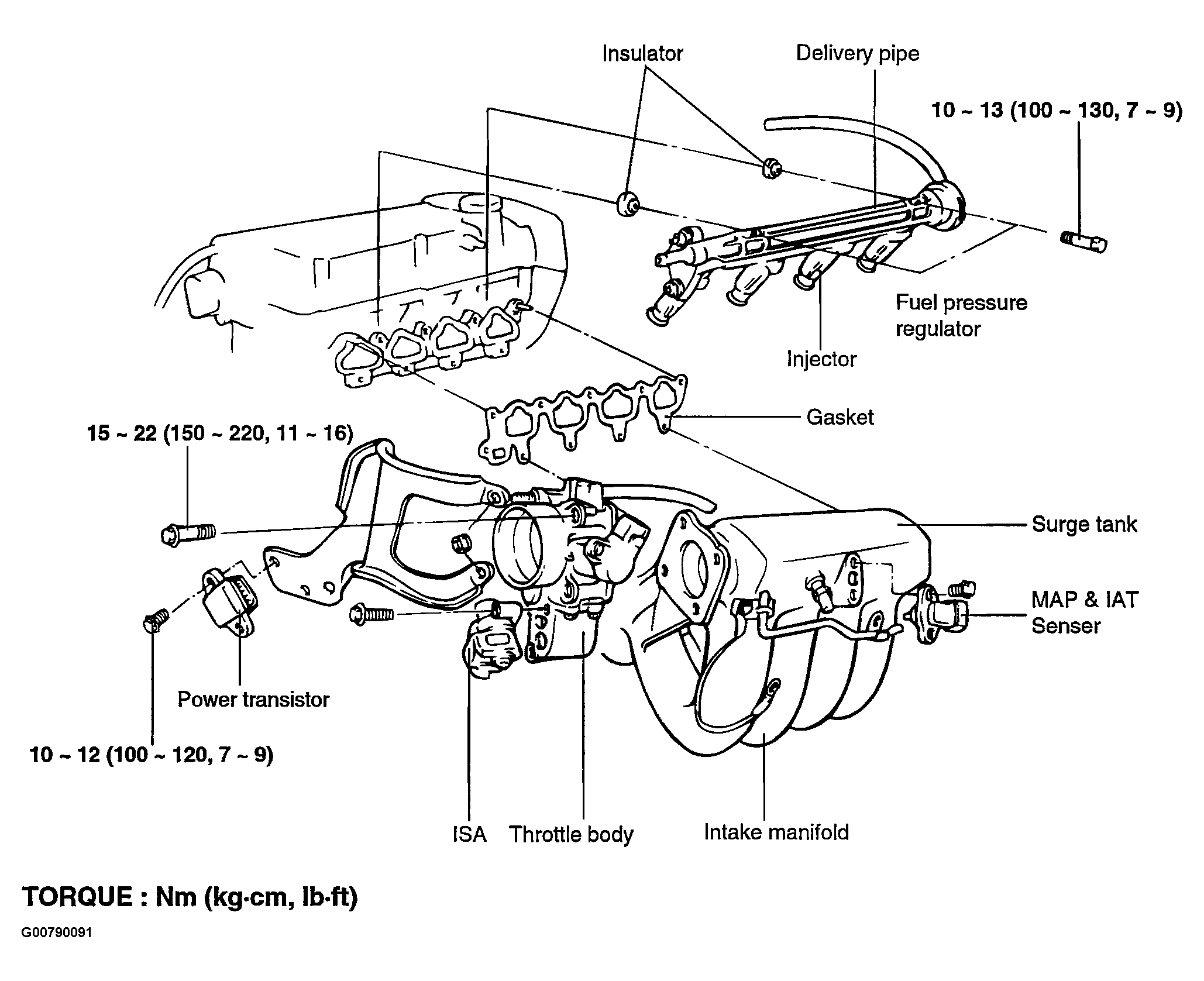

Fig 1: Intake Manifold Components

G00790091

Courtesy of HYUNDAI MOTOR CO.
