Connector Locations

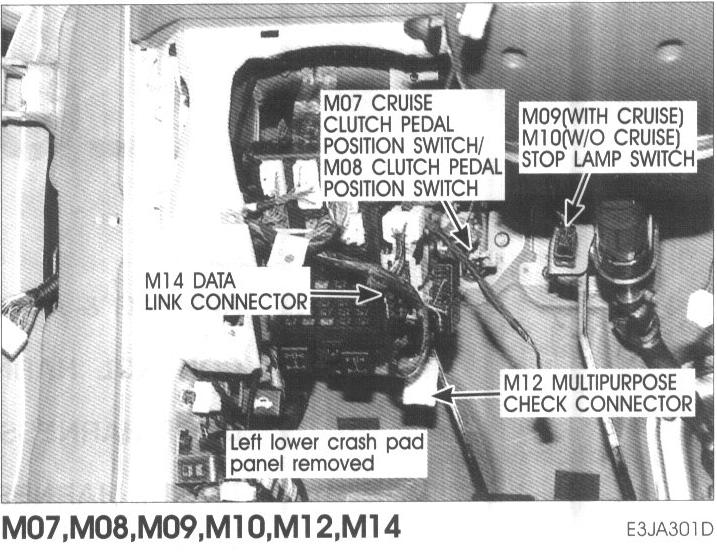

M07 Cruise Clutch Pedal Position Switch, M08 Clutch Pedal Position Switch, M09, M10 Stop Lamp Switch (With And W/O Cruise), M12 Multipurpose Check Connector, M14 Data Link Connector:
