Automatic Transmission/Transaxle

AUTOMATIC TRANSAXLE HYDRAULIC CIRCUIT

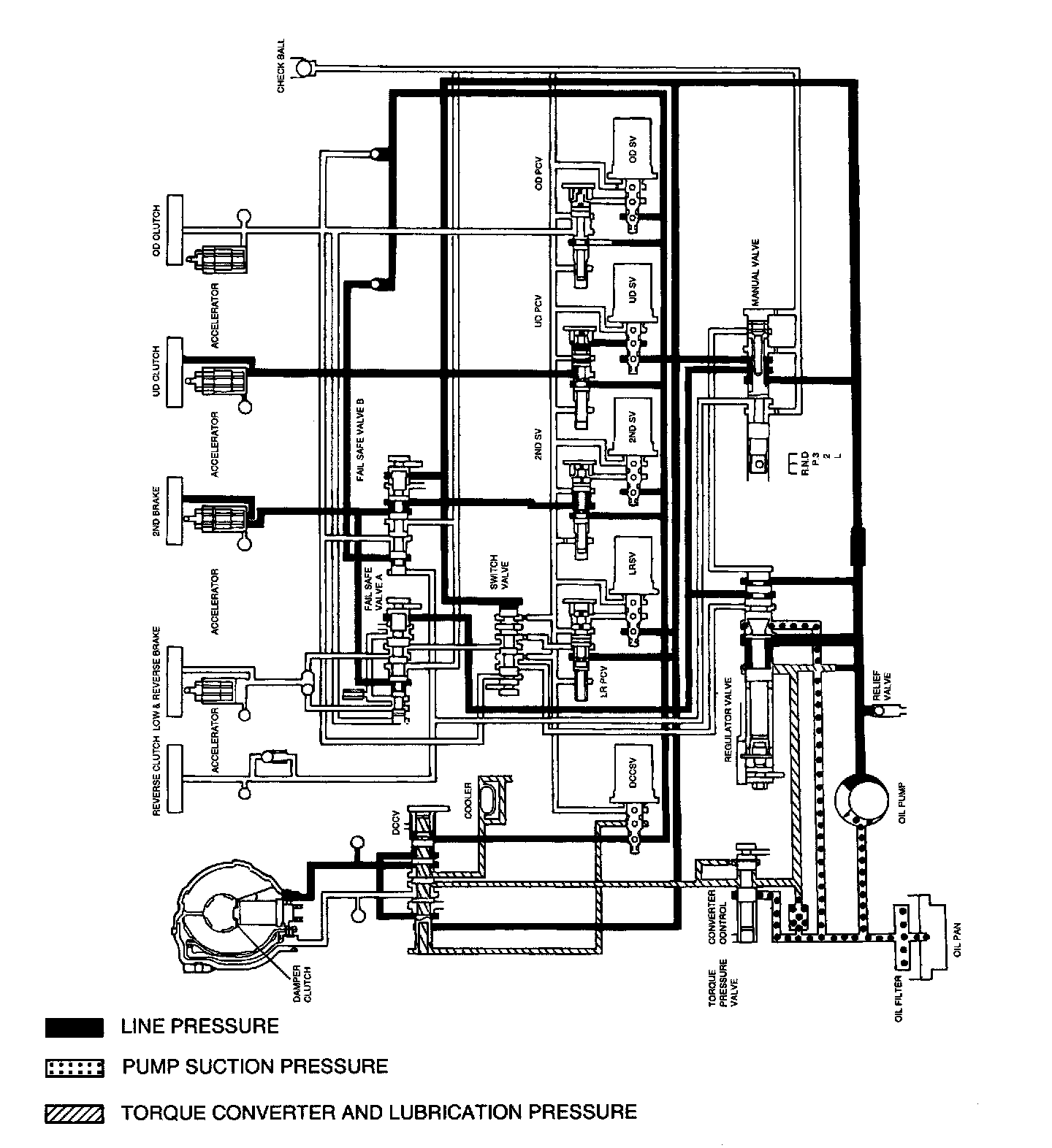

PARK & NEUTRAL

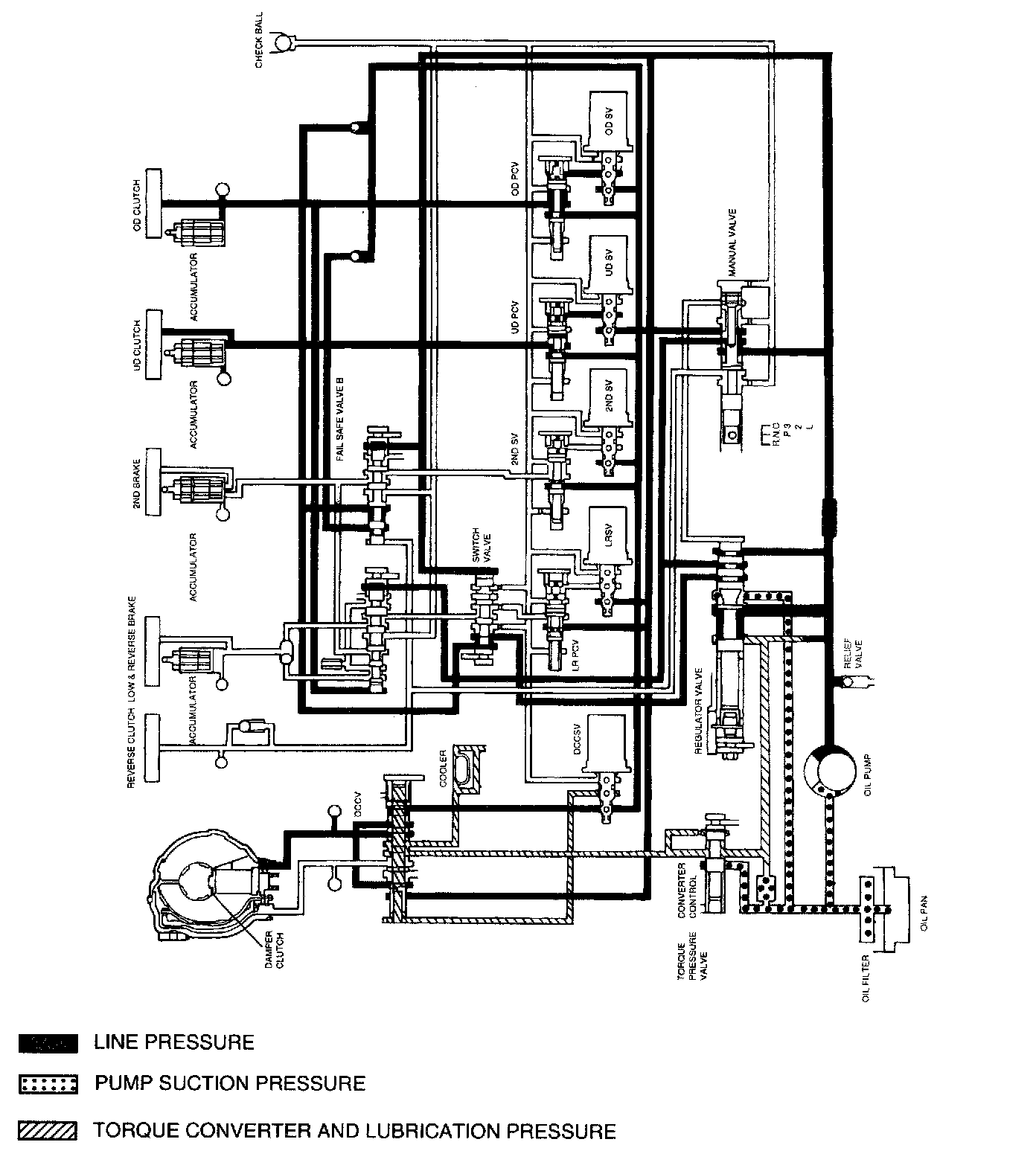

FIRST

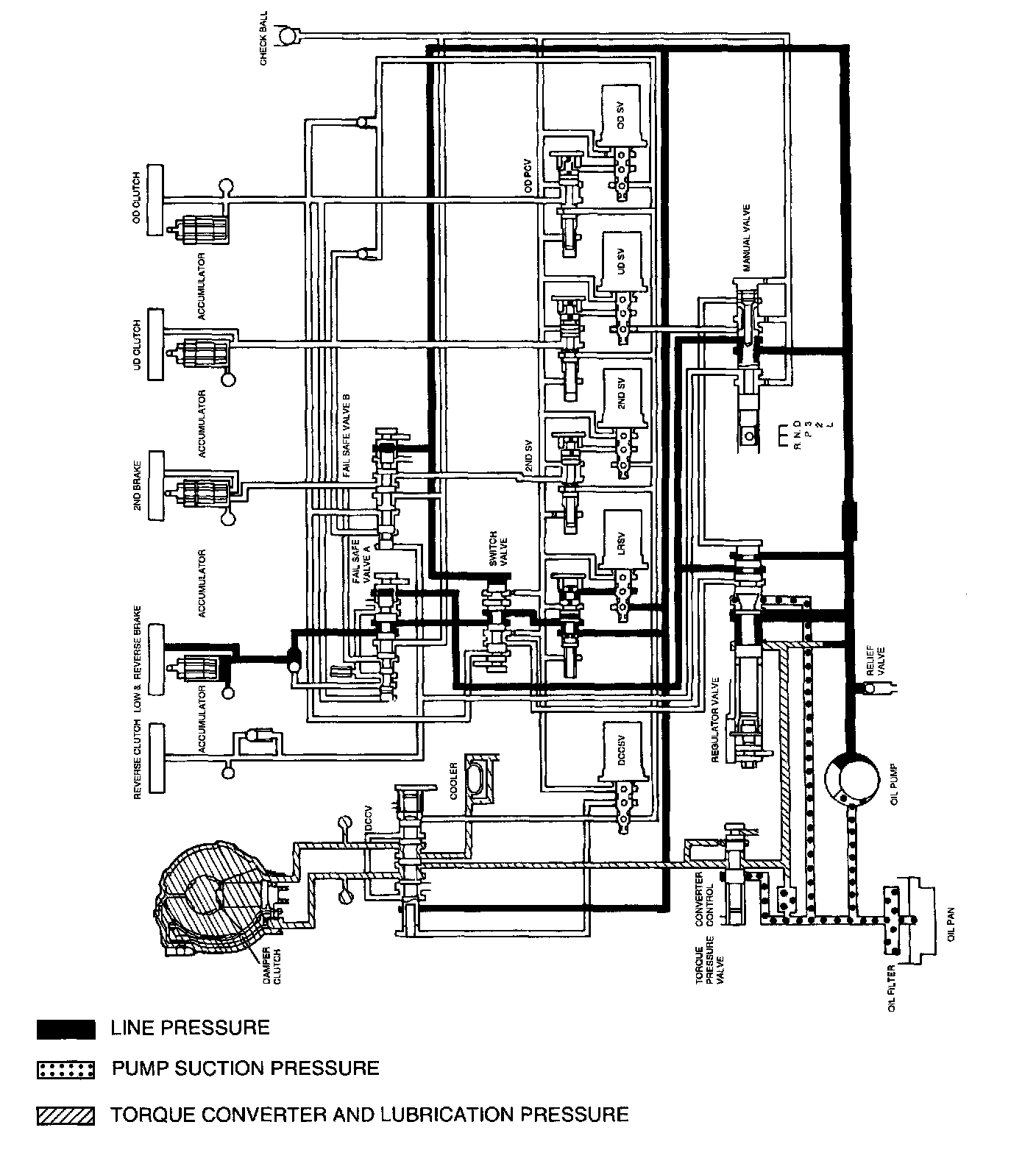

SECOND

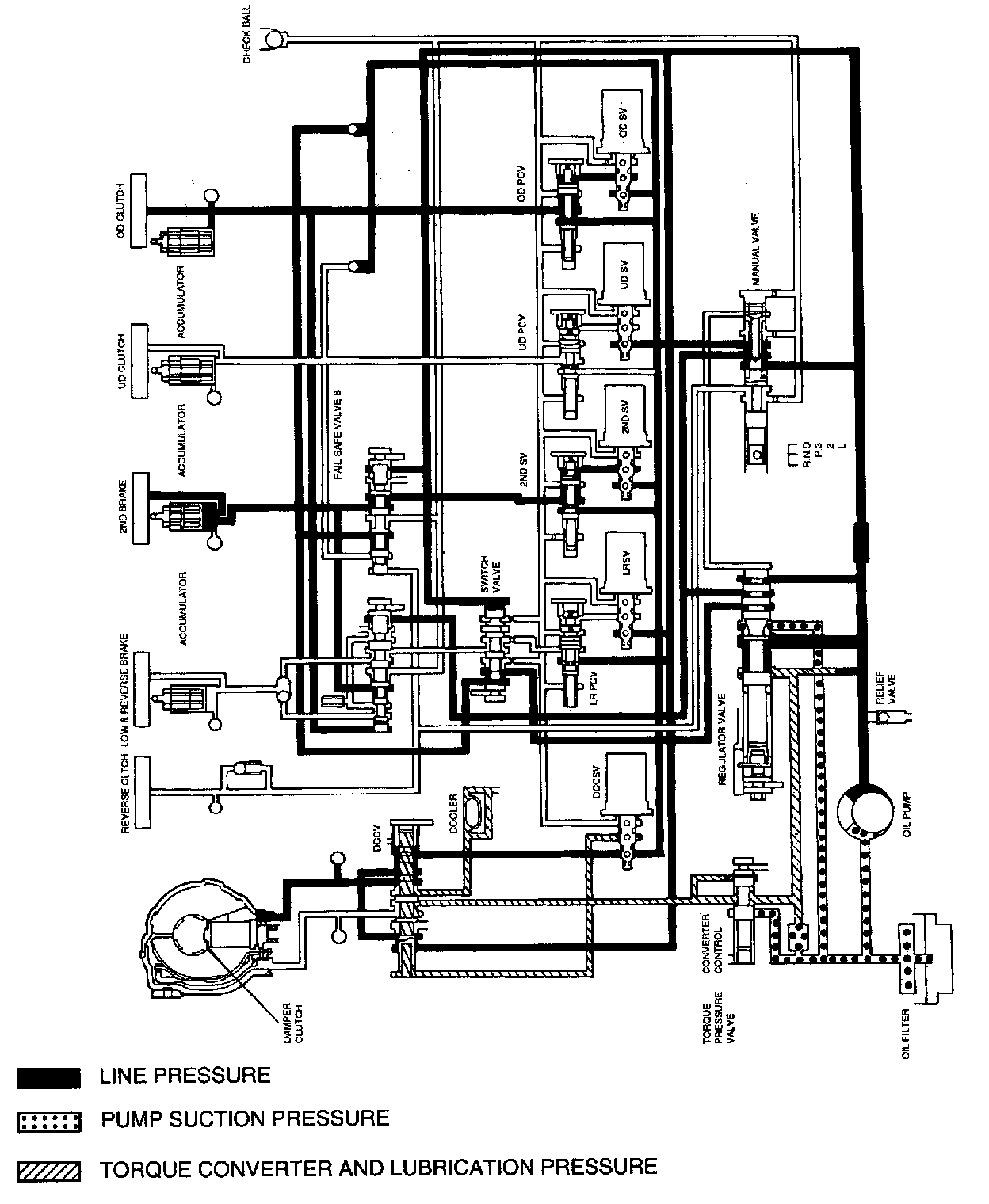

THIRD

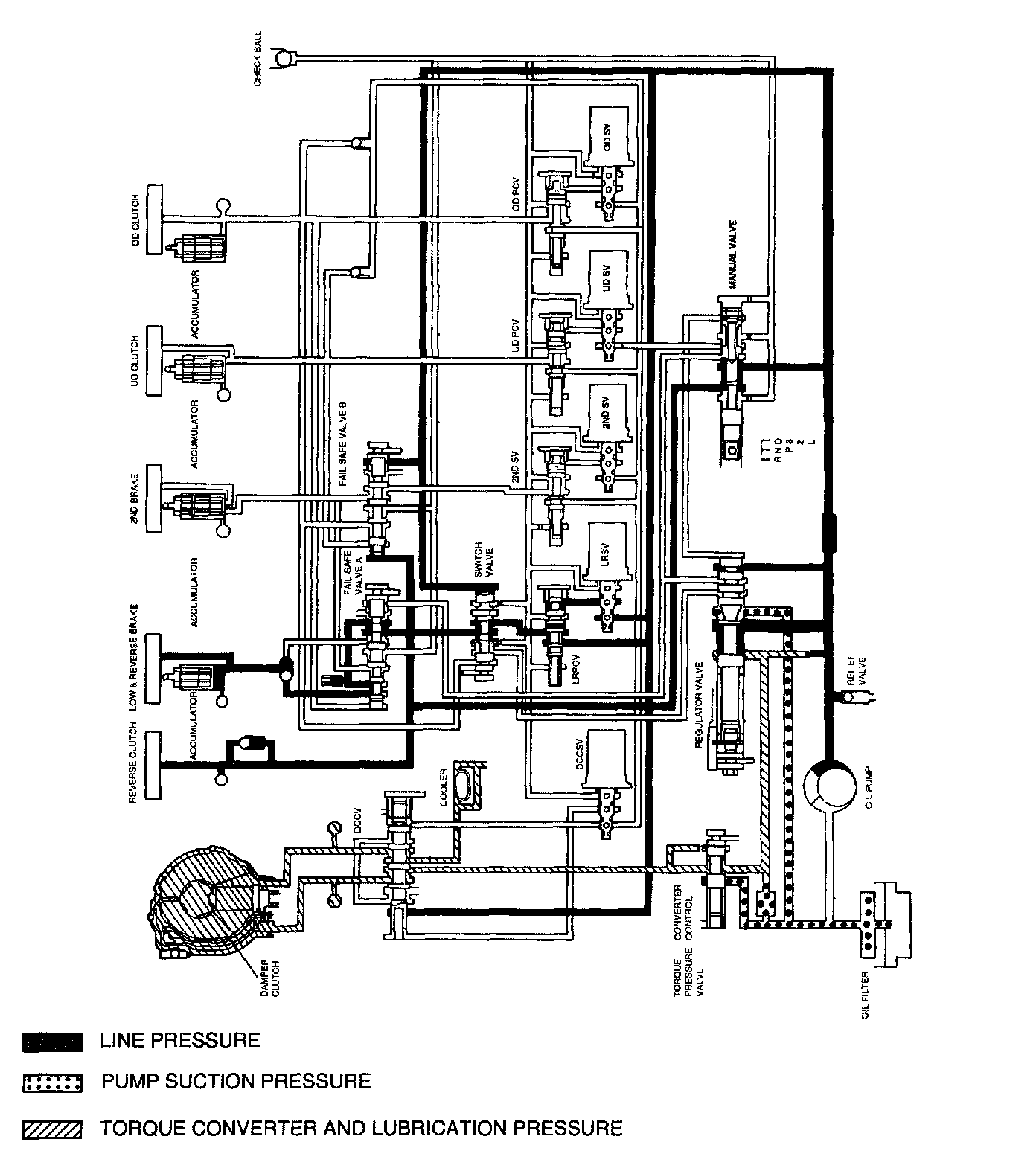

FOURTH

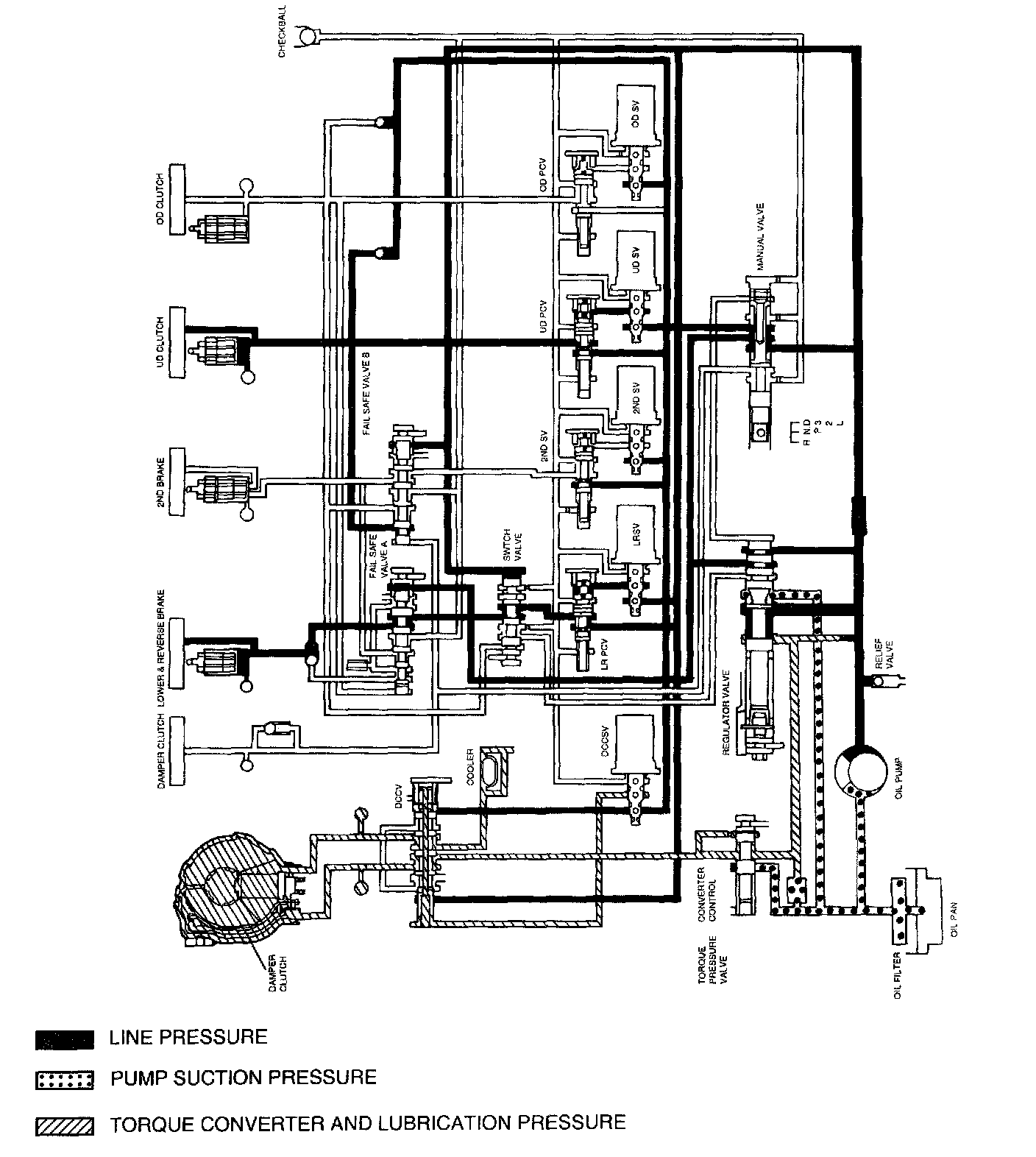

REVERSE
