Anti-Lock Brake System: General: Specifications

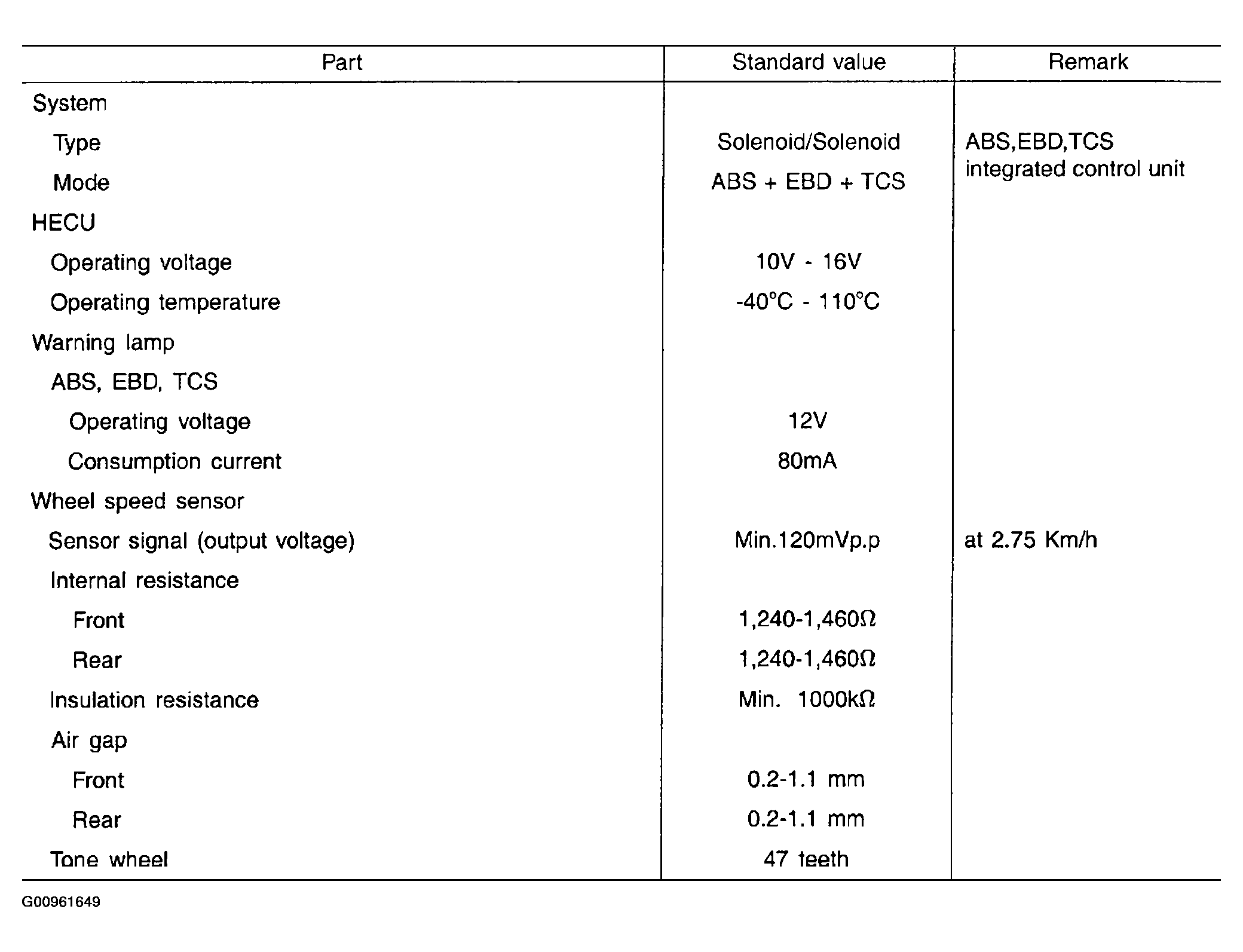

Fig 1: ABS Specifications

G00961649

Courtesy of HYUNDAI MOTOR CO.
