Fuel Tank Pressure Sensor: Testing and Inspection

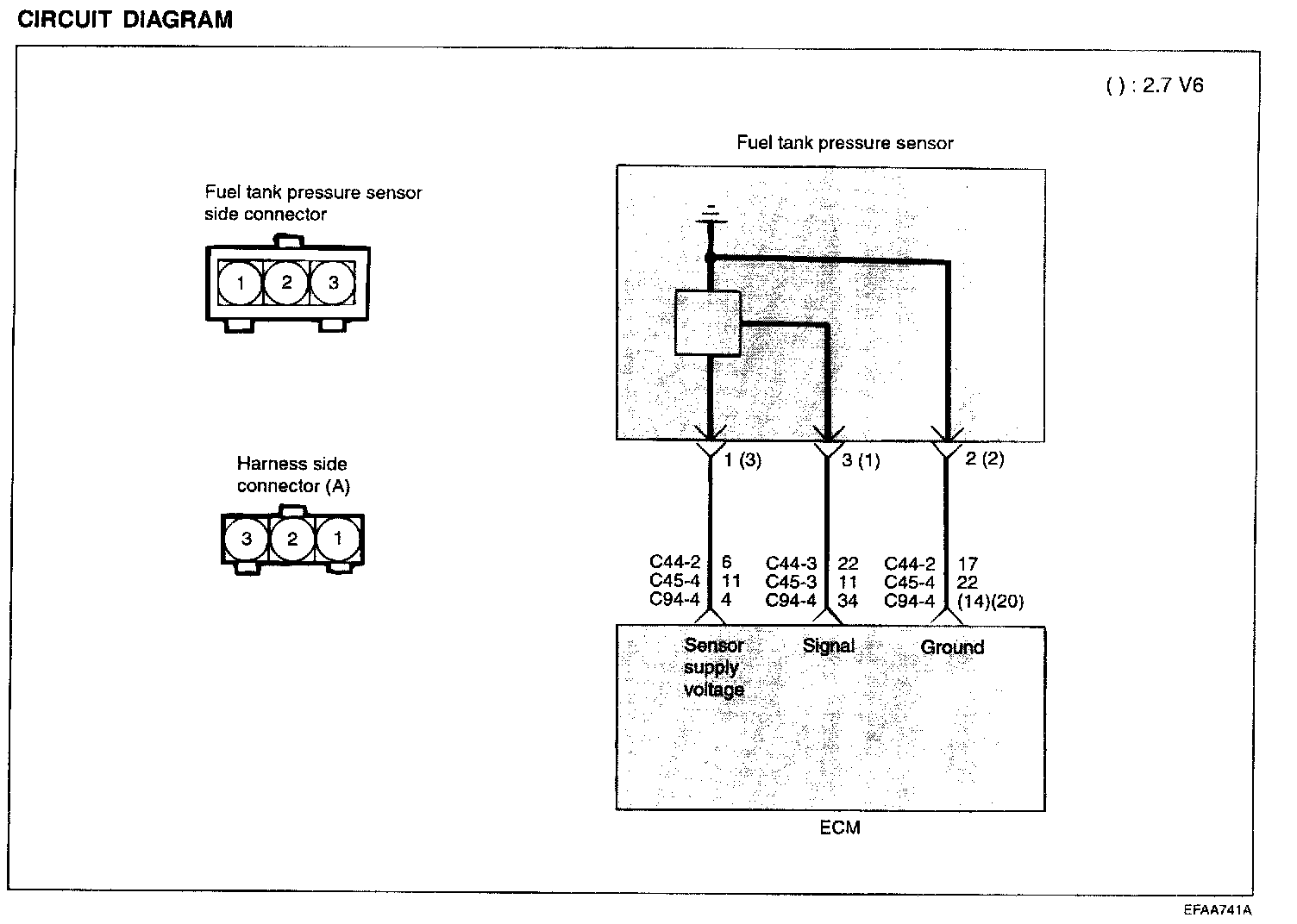

FUEL TANK PRESSURE SENSORCircuit Diagram:
The fuel tank pressure sensor is a pressure sensitive variable resistor It measures the change of pressure in the fuel tank and monitors leakage detection It is used to close the evaporative system and observes tank pressure respectively with canister close valve.

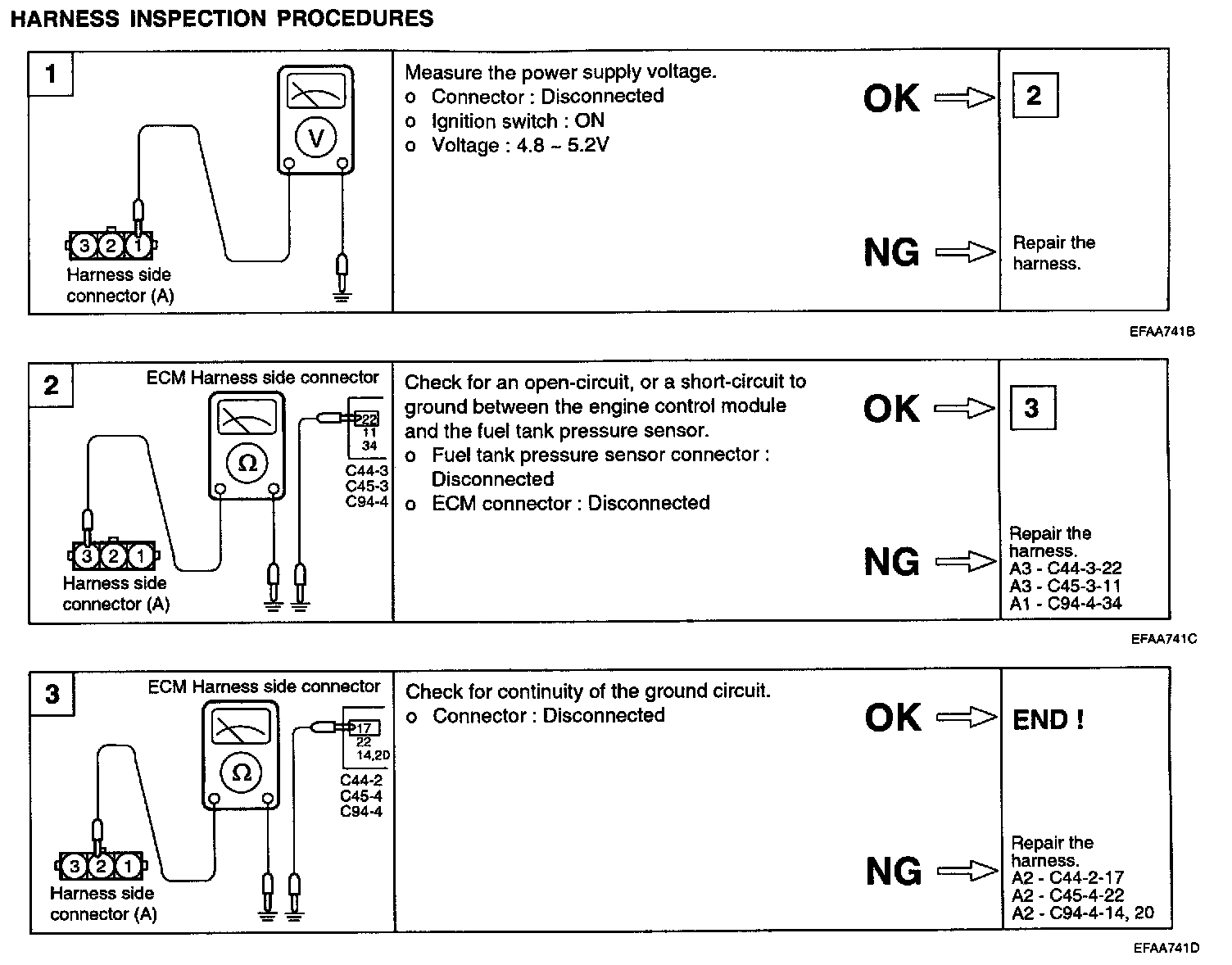

Harness Inspection Procedure:
SENSOR INSPECTION
Refer to Emission Control System
