Tightening Torque

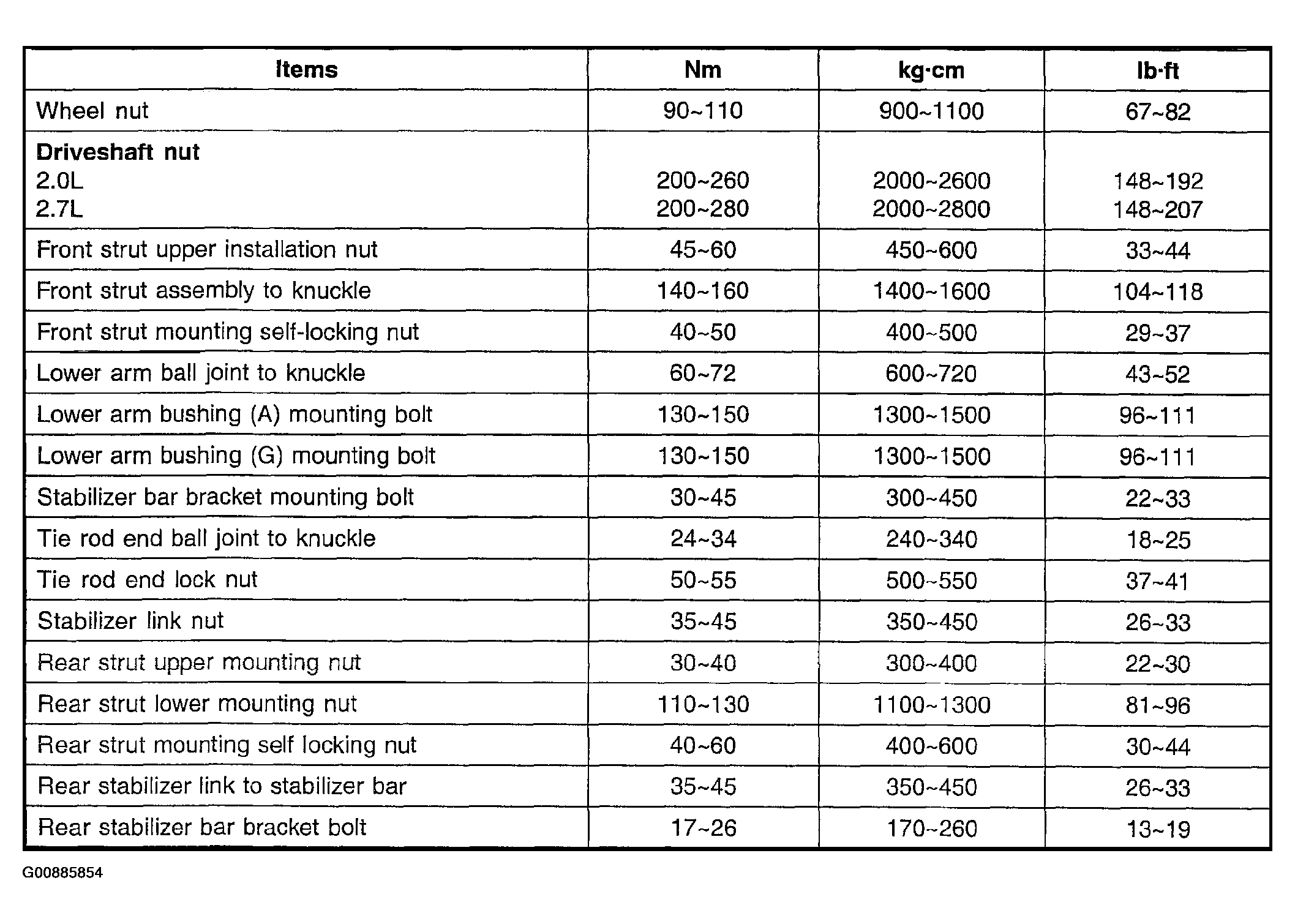

Fig 1: Tightening Torque Specifications (1 Of 2)
G00885854Courtesy of HYUNDAI MOTOR CO.

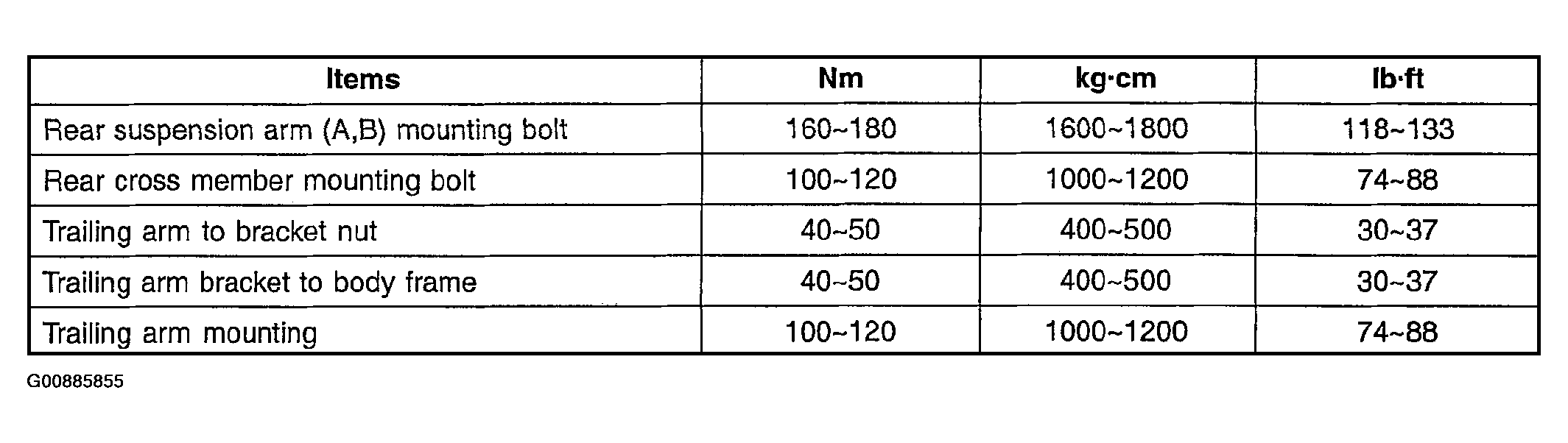

Fig 2: Tightening Torque Specifications (2 Of 2)
G00885855Courtesy of HYUNDAI MOTOR CO.
CAUTION: Replace the self-locking nuts with new ones after removal.
