Component Locations

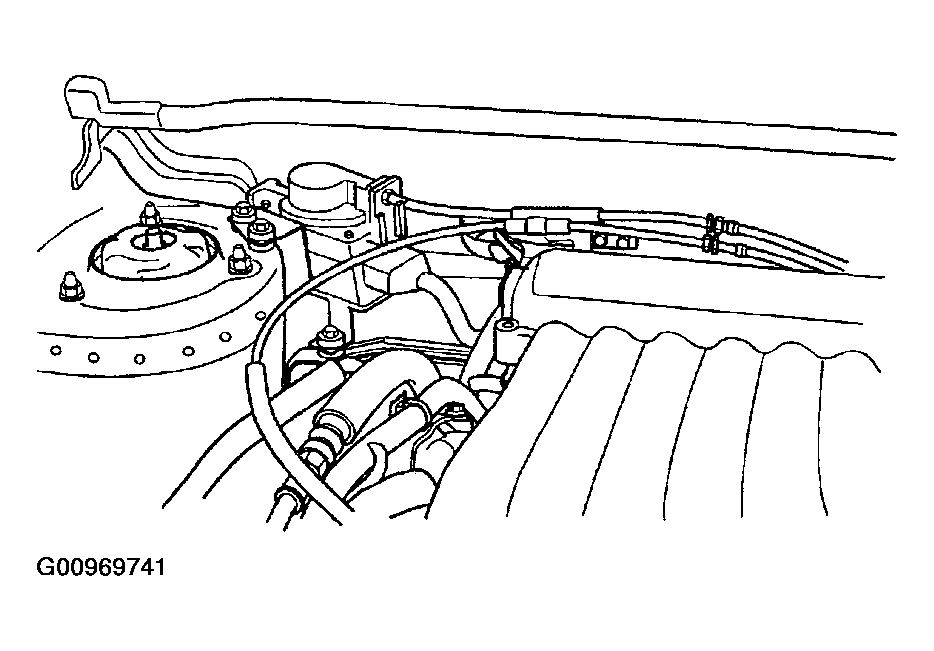

Fig 1: Identifying Cruise Control Cable
G00969741Courtesy of HYUNDAI MOTOR CO.

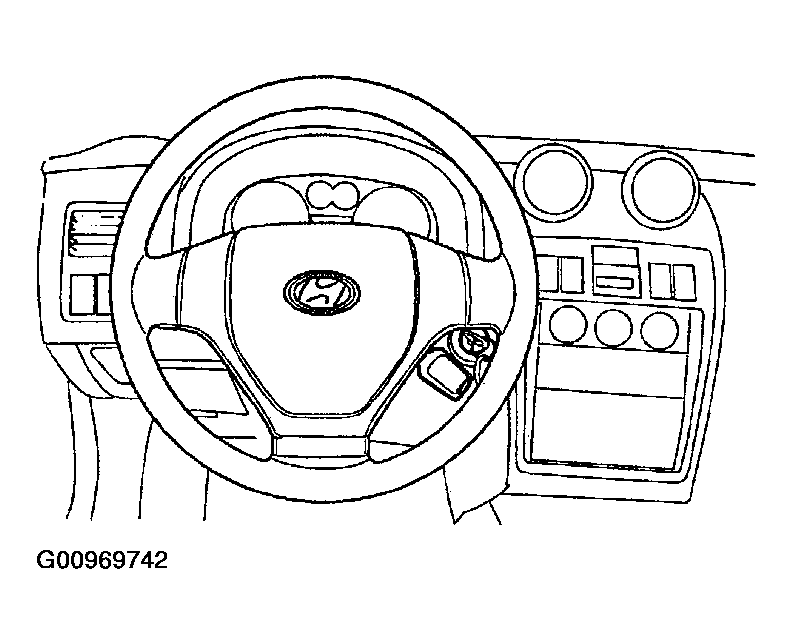

Fig 2: Identifying Steering Wheel
G00969742Courtesy of HYUNDAI MOTOR CO.

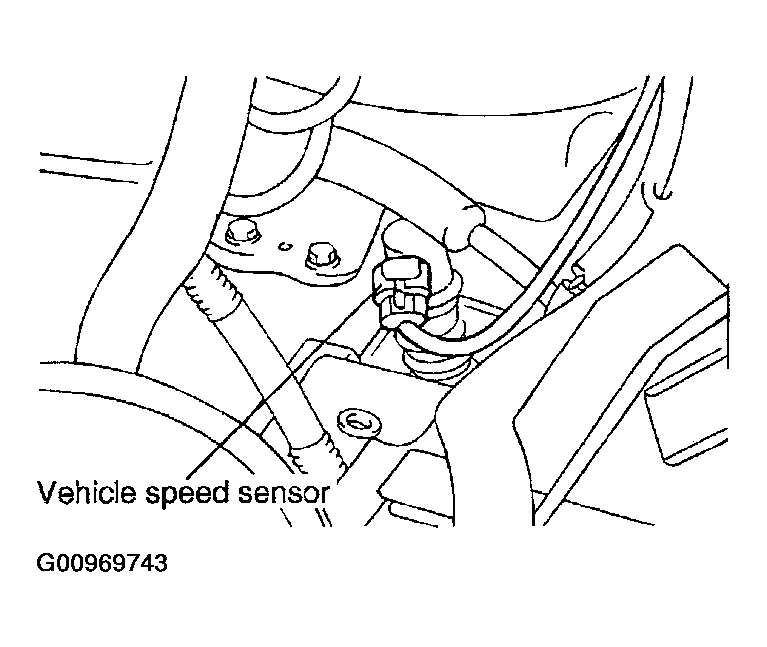

Fig 3: Identifying Vehicle Speed Sensor
G00969743Courtesy of HYUNDAI MOTOR CO.

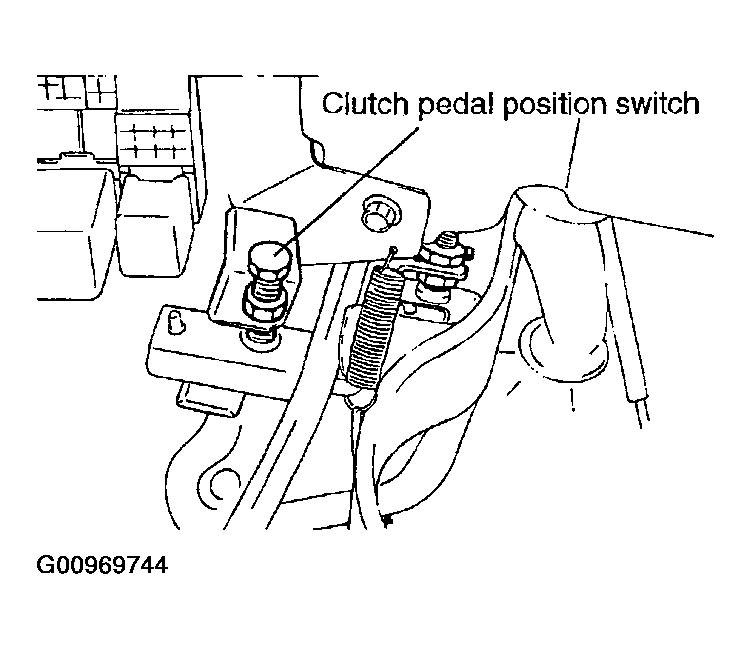

Fig 4: Identifying Clutch Pedal Position Switch
G00969744Courtesy of HYUNDAI MOTOR CO.

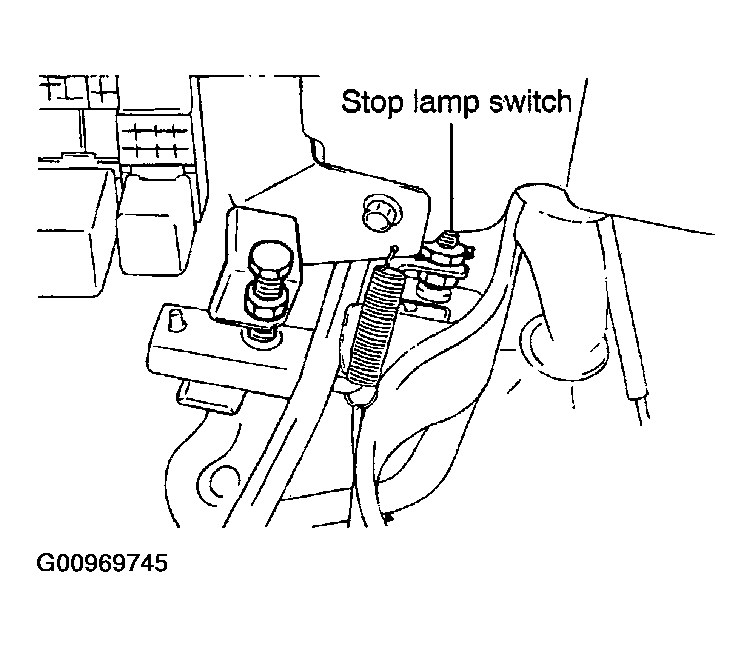

Fig 5: Identifying Stop Lamp Switch
G00969745Courtesy of HYUNDAI MOTOR CO.
