Removal & Installation

  1. Remove the battery negative terminal.
  2. Disconnect the accelerator cable and cruise control cable from throttle assembly by turning throttle lever to full open position.
  3. Disconnect the accelerator cable from accelerator pedal connection.
  4. Remove the accelerator cable mounting bolts.

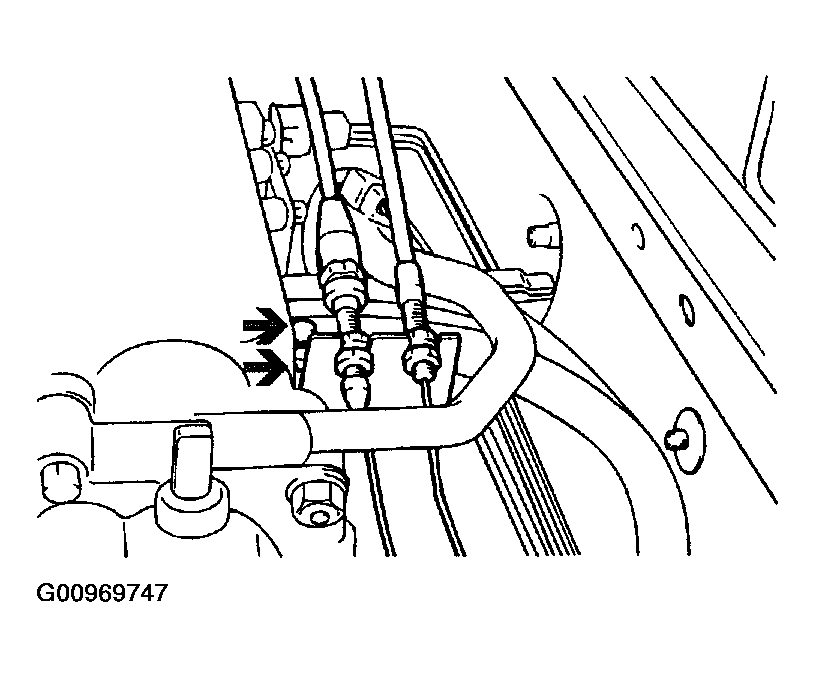

    Fig 1: Identifying Accelerator Cable Mounting Bracket
    G00969747Courtesy of HYUNDAI MOTOR CO.
  5. Remove the actuator and unit assembly mounting bolt.
  6. Installation is the reverse order of removal.

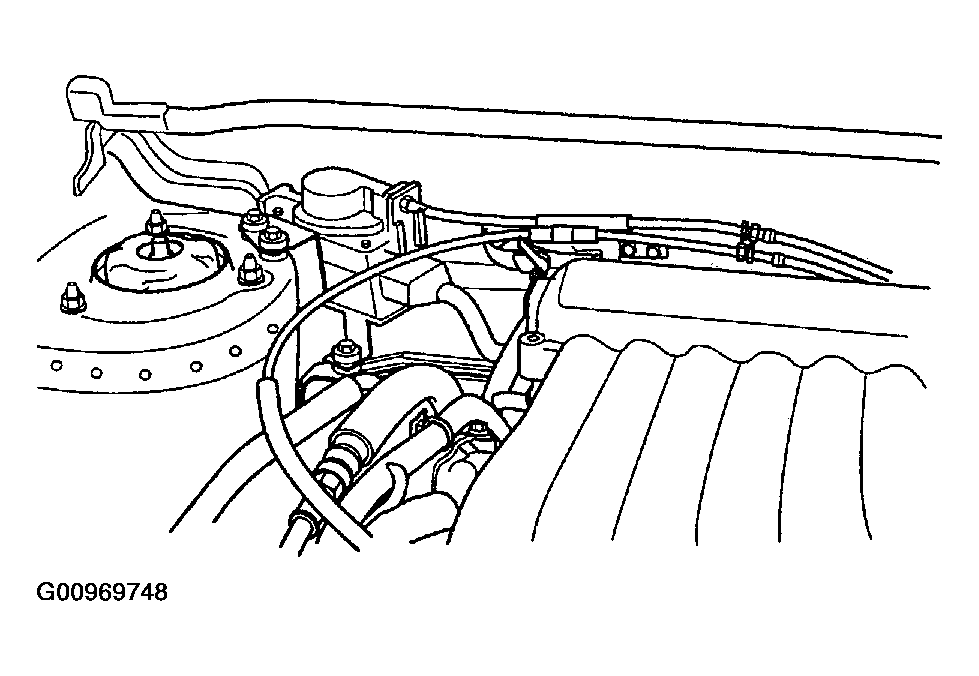

    Fig 2: Identifying Cruise Control Cable & Accelerator Cable
    G00969748Courtesy of HYUNDAI MOTOR CO.
