Component Parts & Function Outline

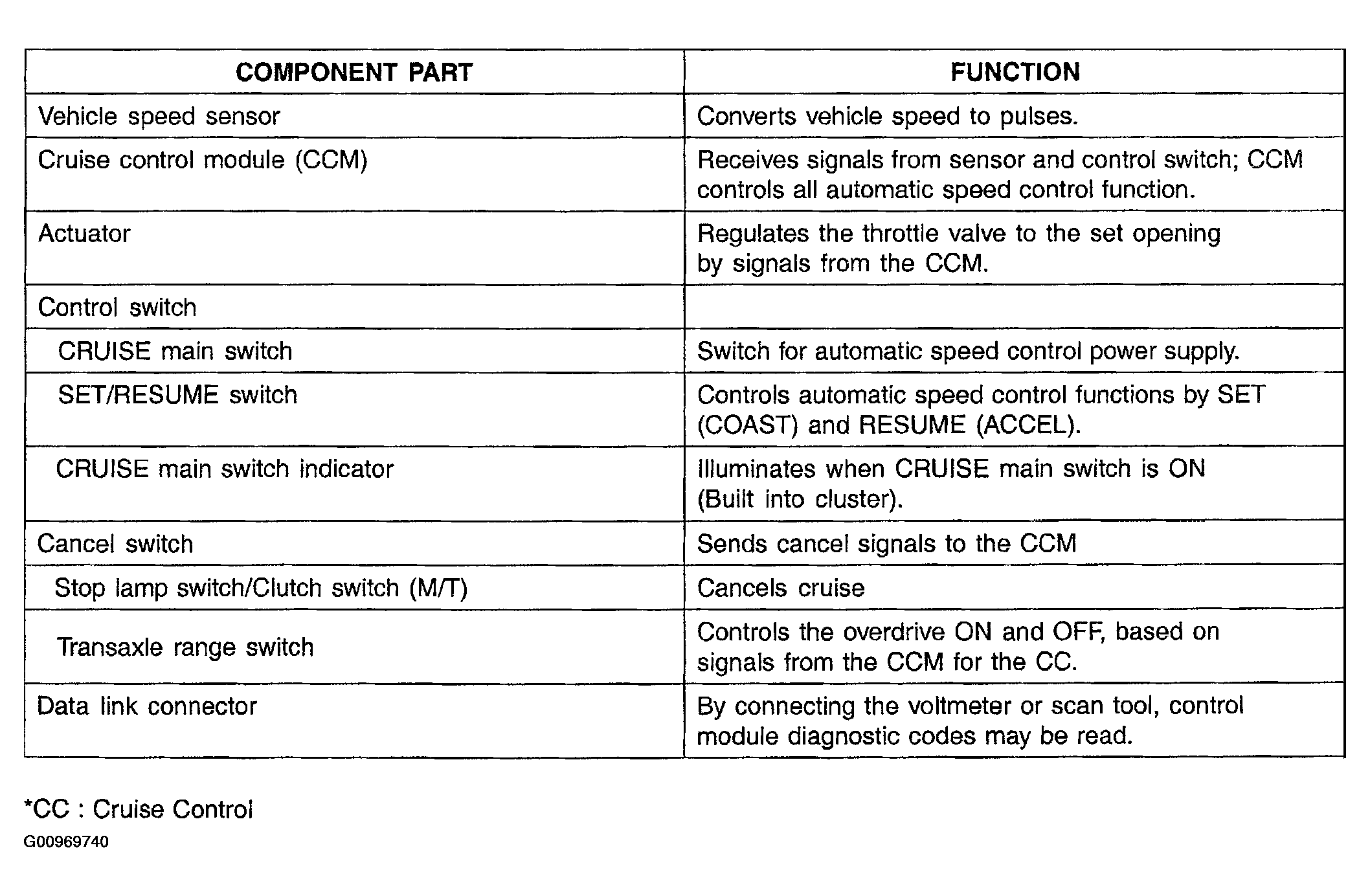

Fig 1: Component Parts & Function Outline Table
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
