Audio Fault Code

If you see any error indication in the display while using the CD or Tape mode, find the cause in the chart below.

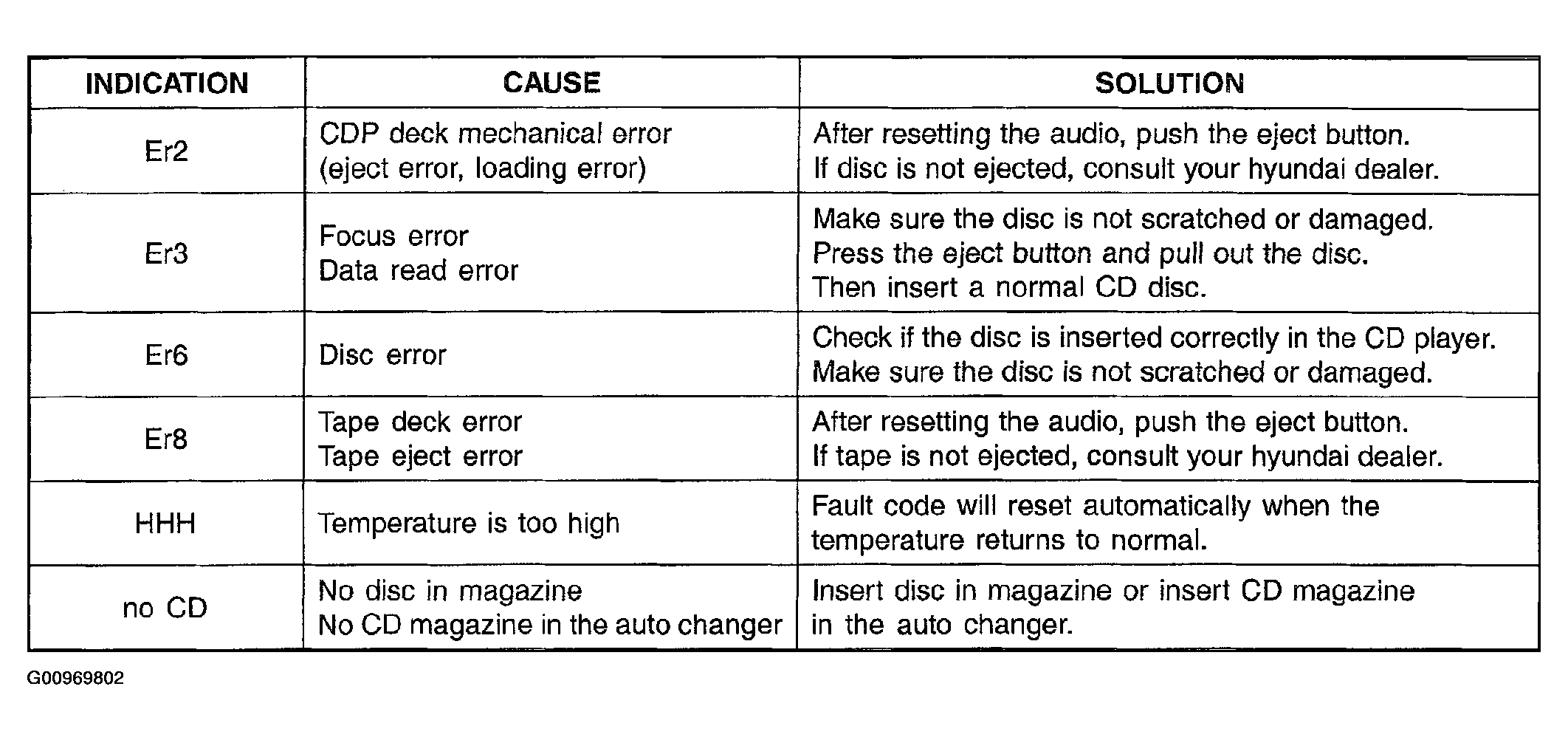

Fig 1: Audio Fault Code Table

Courtesy of HYUNDAI MOTOR CO.

NOTE: In order to reset the audio, pull out the audio fuse (10A) in the body control module after waiting at least 10 seconds, then insert the audio fuse.
