Inspection At HECU Terminals
Fig 1: Identifying HECU Connector Terminals
Courtesy of HYUNDAI MOTOR CO.

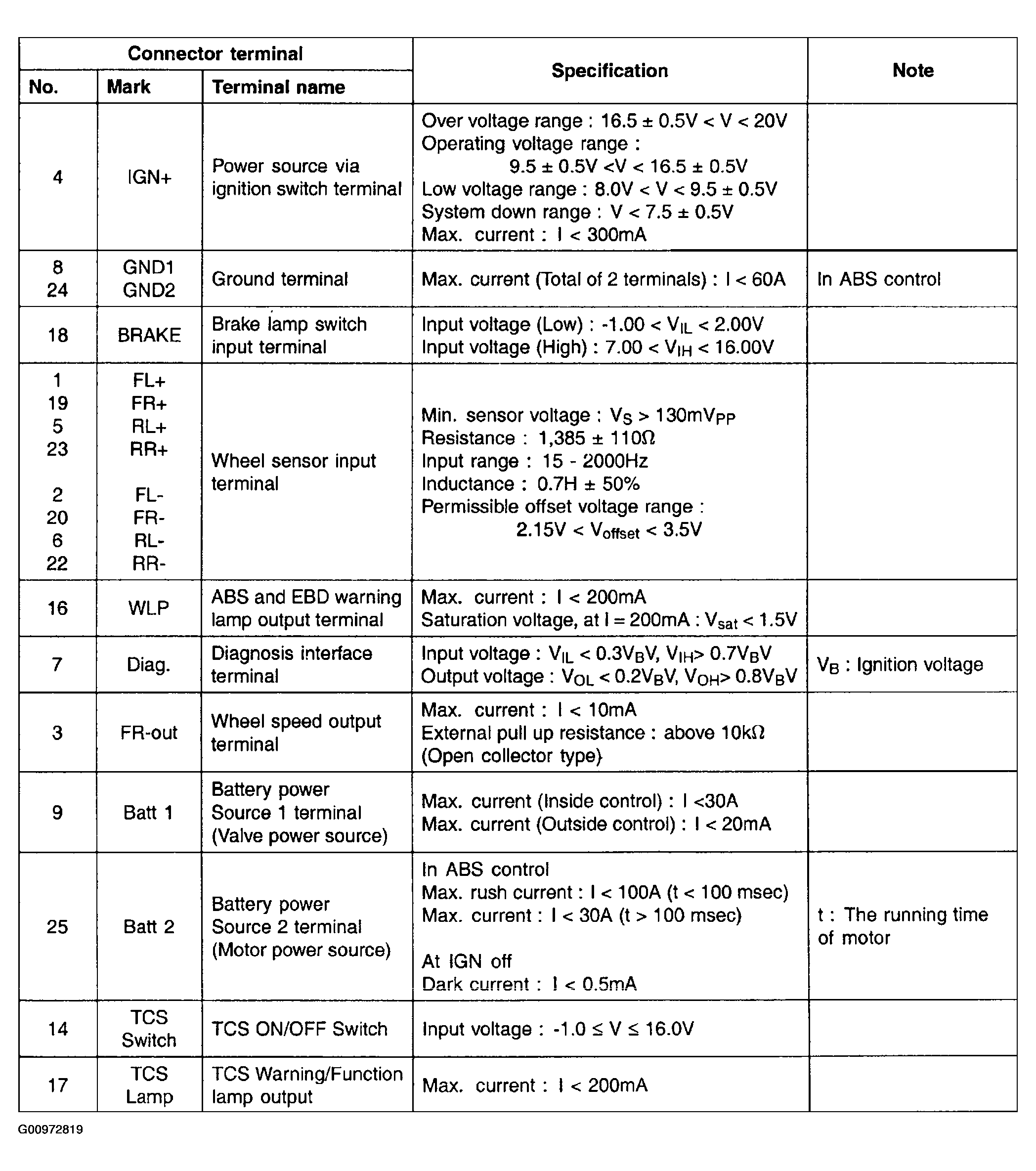

Fig 2: HECU Inspection Table (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

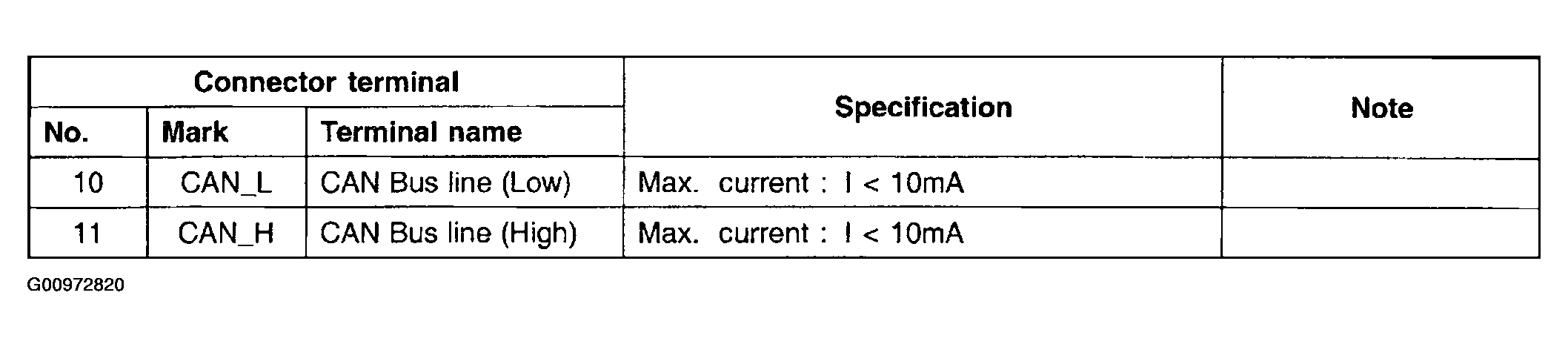

Fig 3: HECU Inspection Table (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
