Abs (Anti-Lock Brake System): Troubleshooting

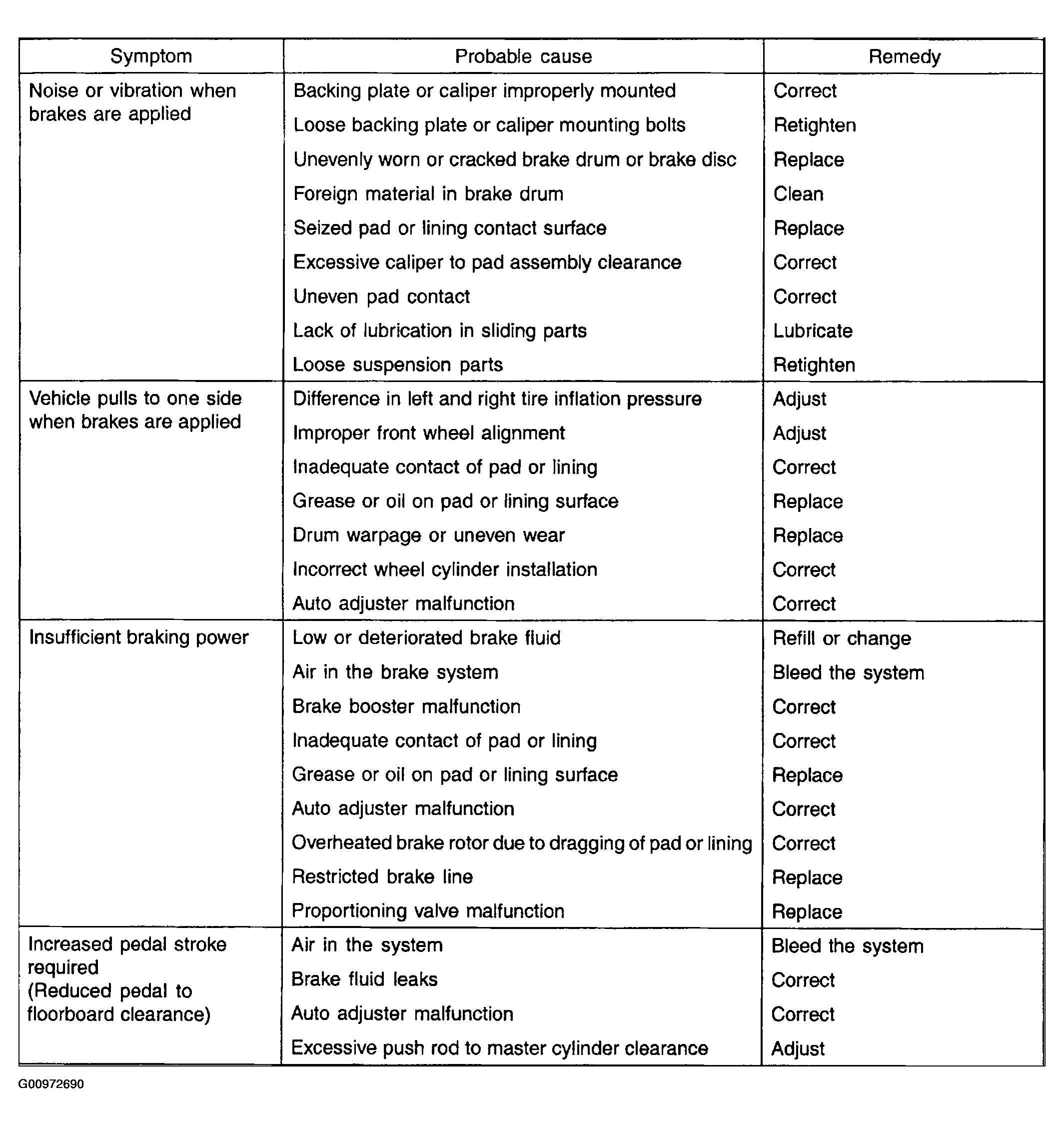

Fig 1: Symptom & Probable Cause Table (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

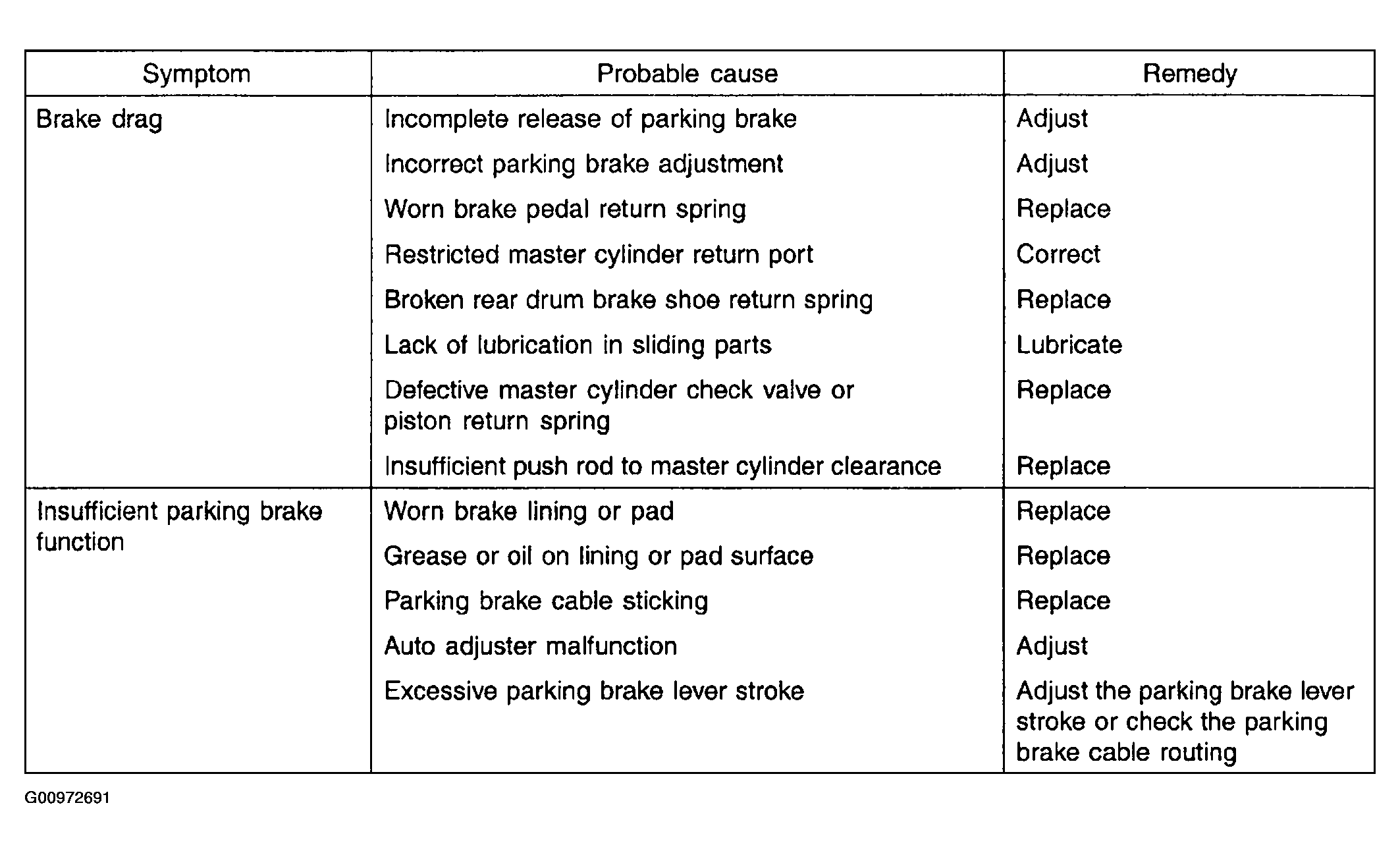

Fig 2: Symptom & Probable Cause Table (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
