Radiator Cap: Notes

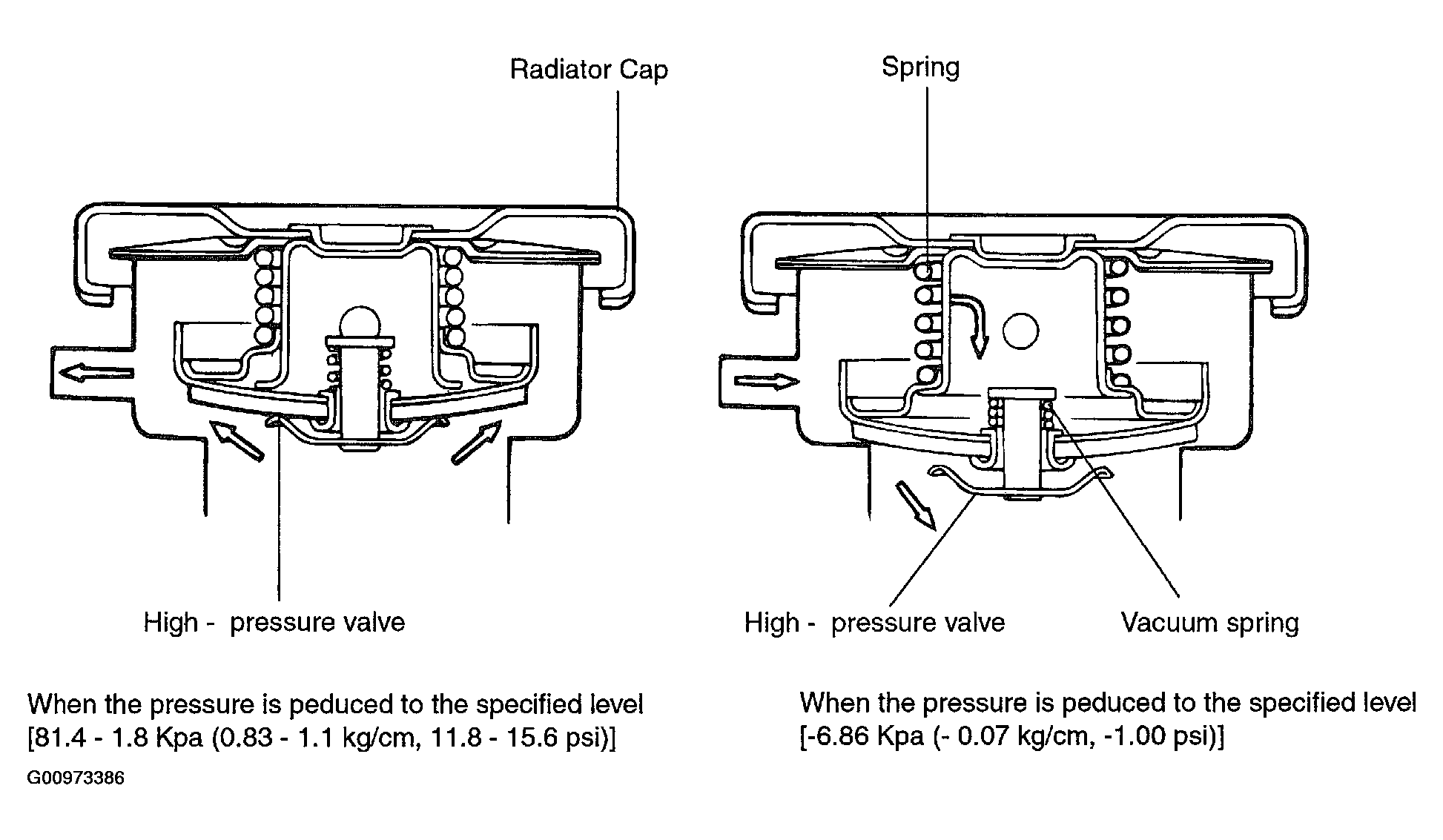

Fig 1: Radiator Cap Components
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
