Specific Gravity Test: Notes

  1. Measure the specific gravity of the coolant with a hydrometer.

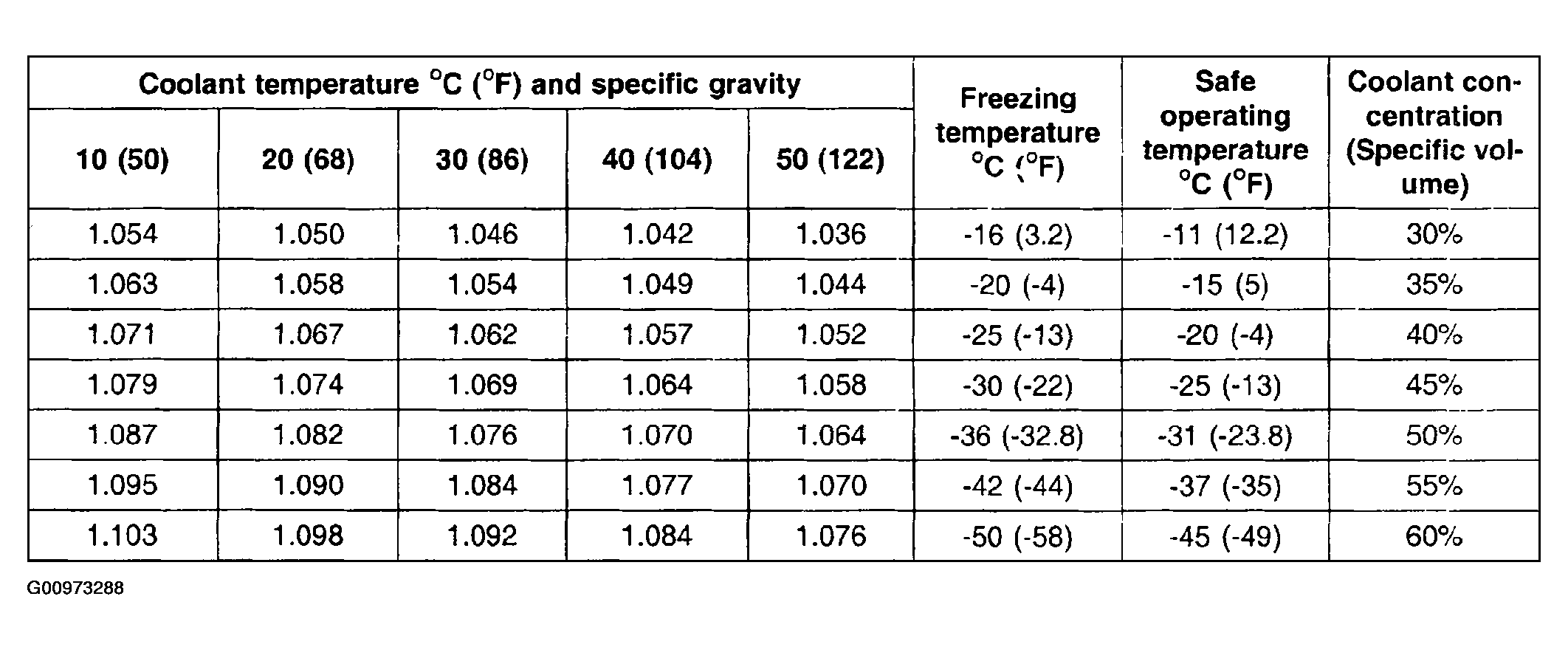

  2. Measure the coolant temperature and calculate the concentration from the relation between the specific gravity and temperature, using the following table for reference. See Figure.

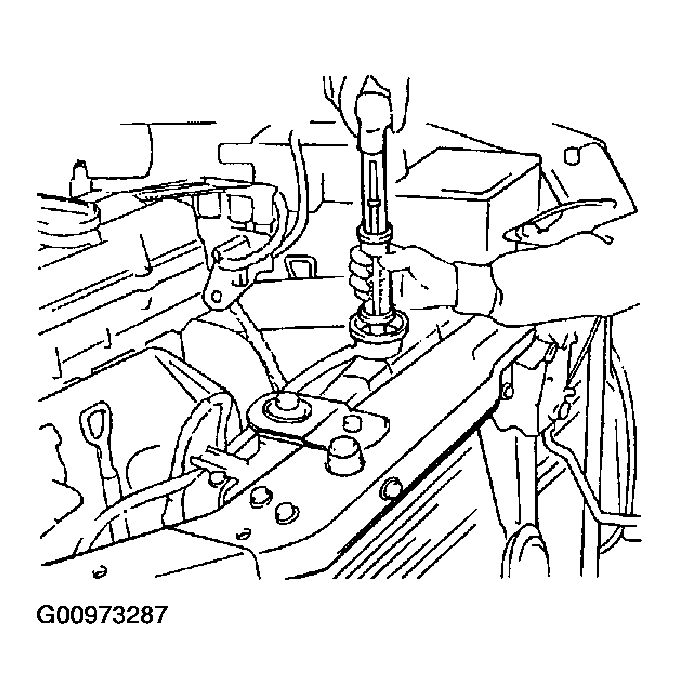

    Fig 1: Checking Engine Coolant With Hydrometer
    G00973287Courtesy of HYUNDAI MOTOR CO.
