Main Moving System: Piston: Components

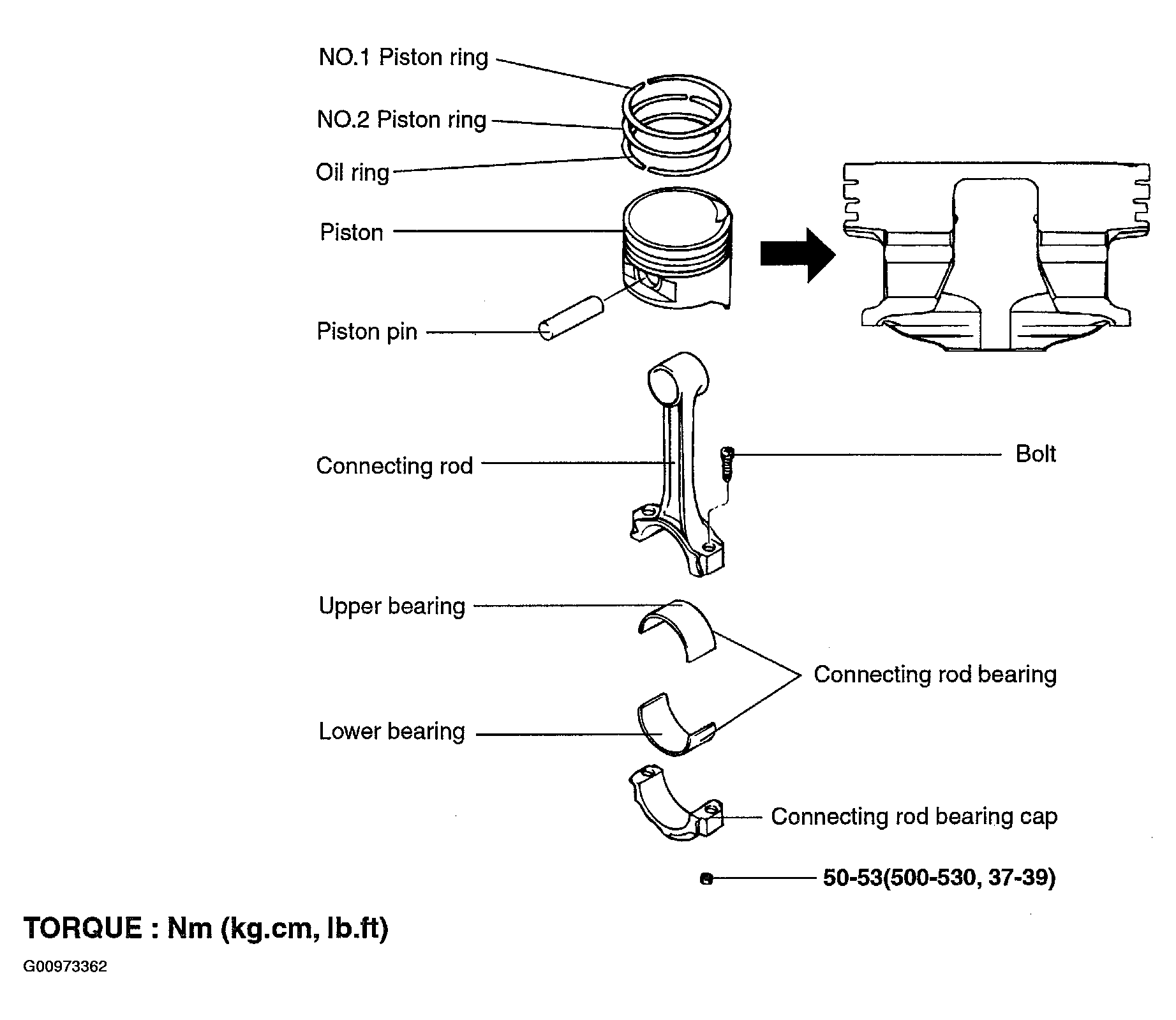

Fig 1: Piston Components

G00973362

Courtesy of HYUNDAI MOTOR CO.
