Strut Assembly: Removal

  1. Remove the front wheel.
  2. Detach the brake hose bracket from the strut assembly.
    NOTE: Do not apply excessive force to the components.
  3. Remove the stabilizer link.

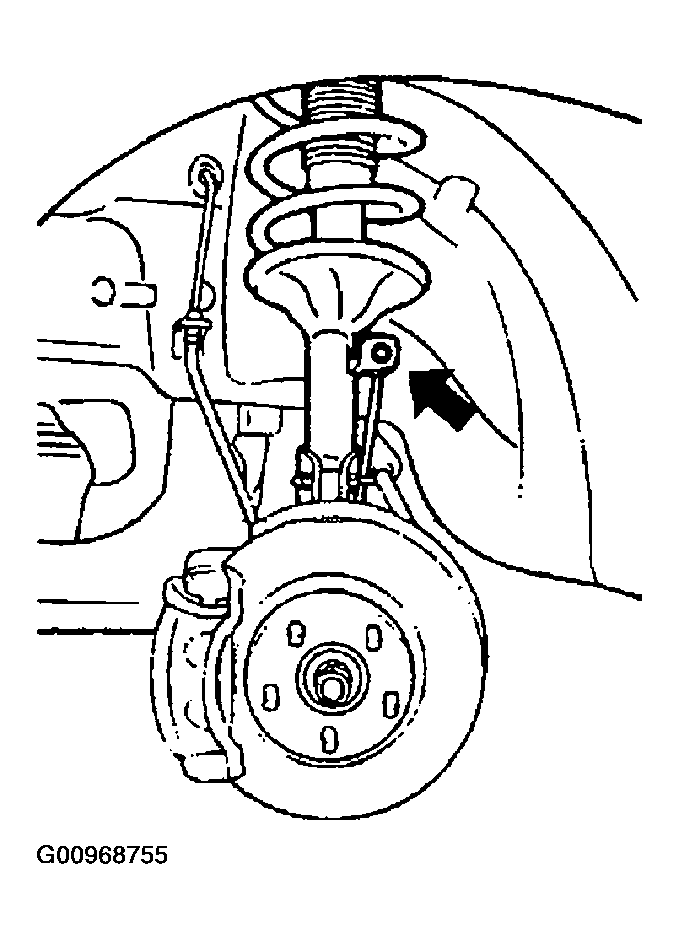

    Fig 1: Identifying Stabilizer Link
    G00968755Courtesy of HYUNDAI MOTOR CO.
  4. Remove the strut upper mounting bolts (3).

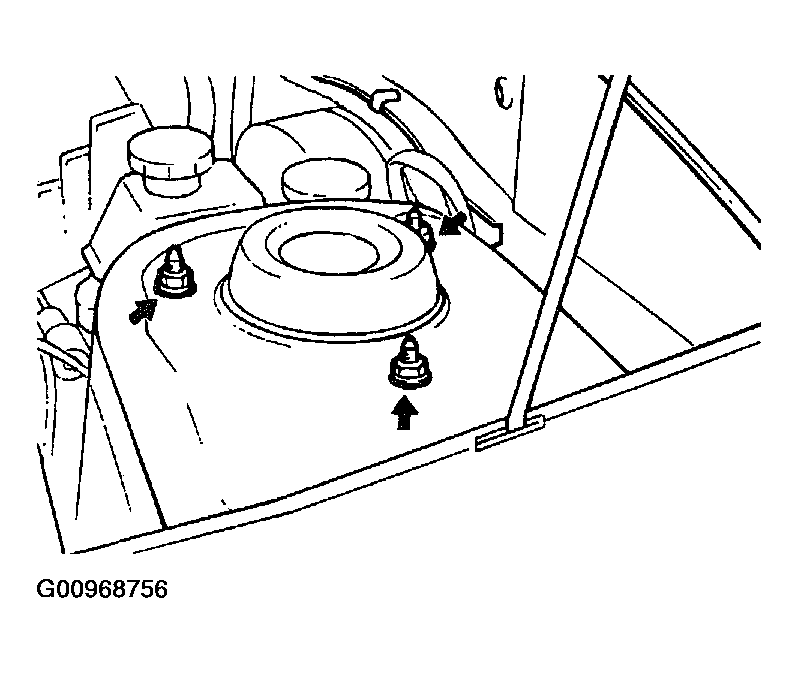

    Fig 2: Identifying Strut Upper Mounting Bolts
    G00968756Courtesy of HYUNDAI MOTOR CO.
  5. Remove the strut assembly.

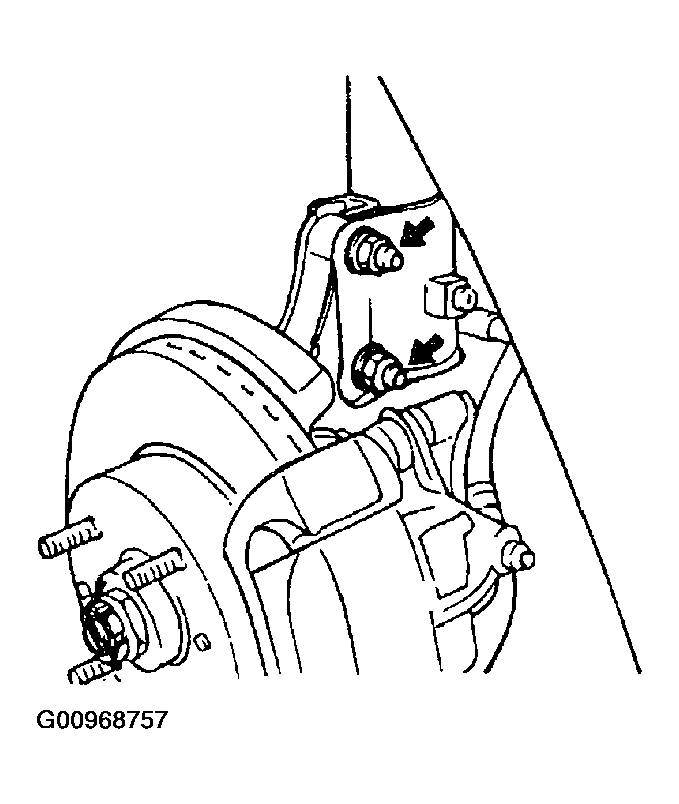

    Fig 3: Identifying Strut Lower Bolts
    G00968757Courtesy of HYUNDAI MOTOR CO.
