Clutch System: General: Specifications

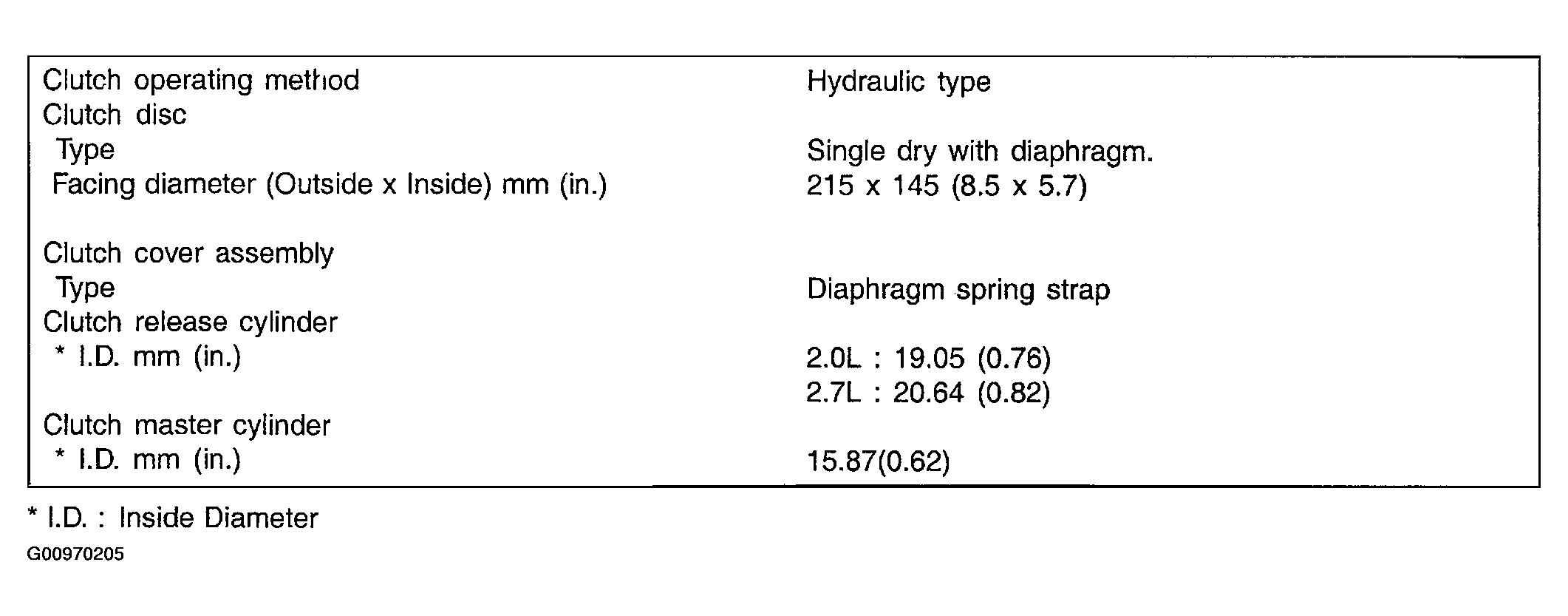

Fig 1: General Clutch System Specifications

G00970205

Courtesy of HYUNDAI MOTOR CO.
