Manual Transaxle Shift Control: Component

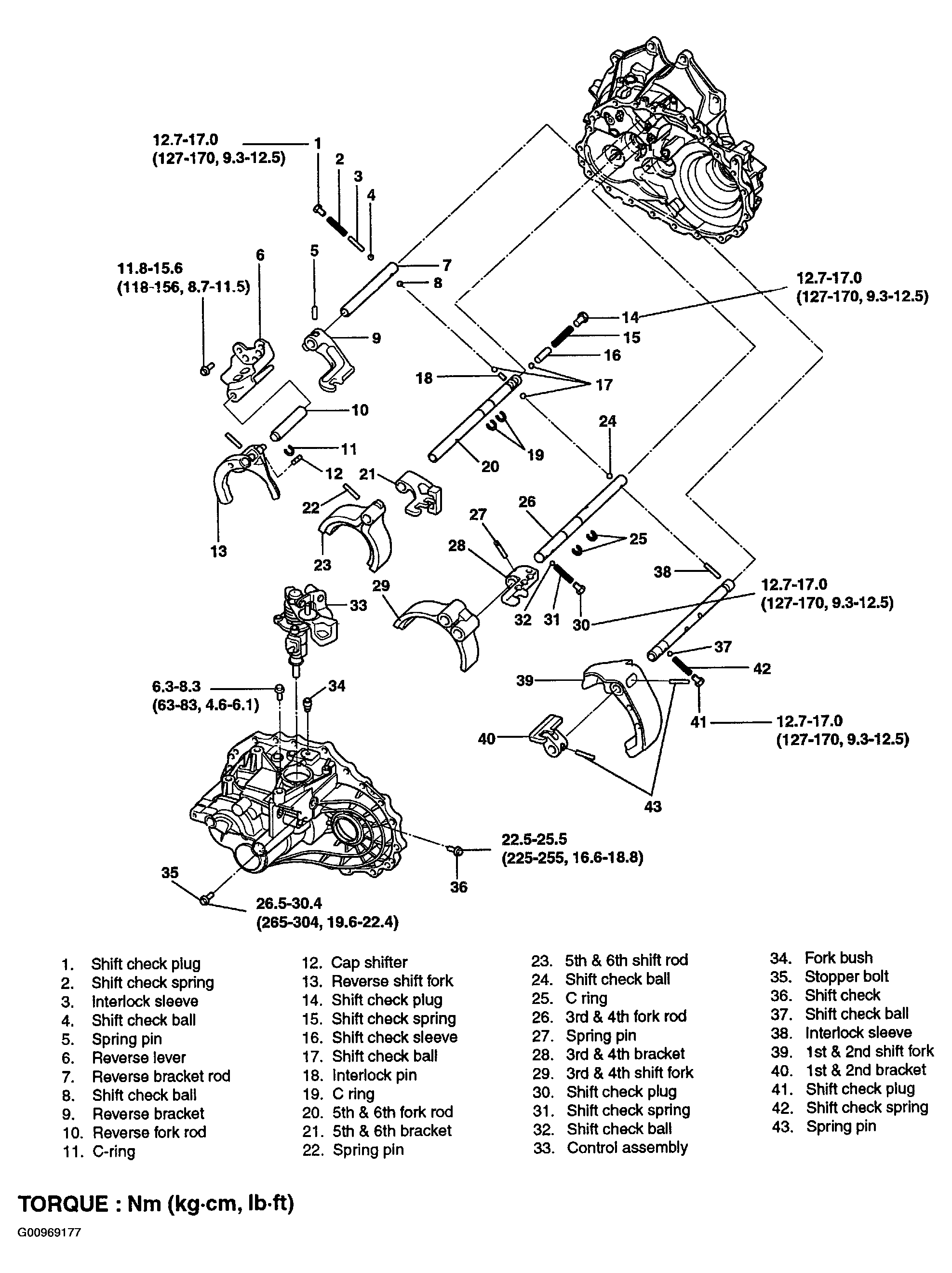

Fig 1: Manual Transaxle Shift Control Component
Courtesy of HYUNDAI MOTOR CO.
