Seat Belt Warning Lamp Timer Function

SEAT BELT WARNING LAMP TIMER

1. Function explanation: Seat belt indicator lamp blinks for 6 seconds when IGN is turned on to recommend driver to buckle up.

2. Related schematic diagrams
- See the Indicators and Gauges.


3. Input/output signal
- Fuse F17 (10 A)
- Output Seat belt indicator lamp (J12)







4. Related Hi-scan(pro) failure diagnosis

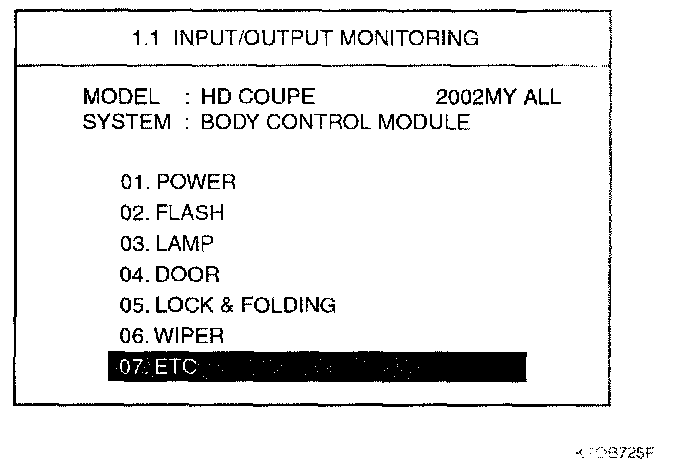

1. Input/output monitoring

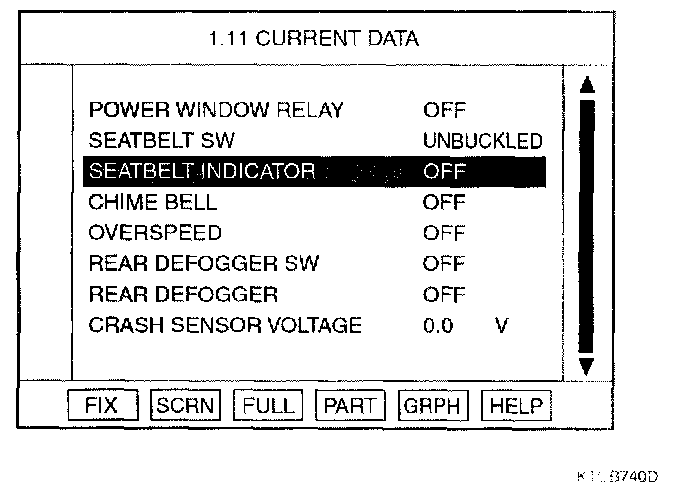

Select "07 ETC" and press [ENTER]. Then the following screen will be displayed.

Check output condition against seat belt indicator lamp.

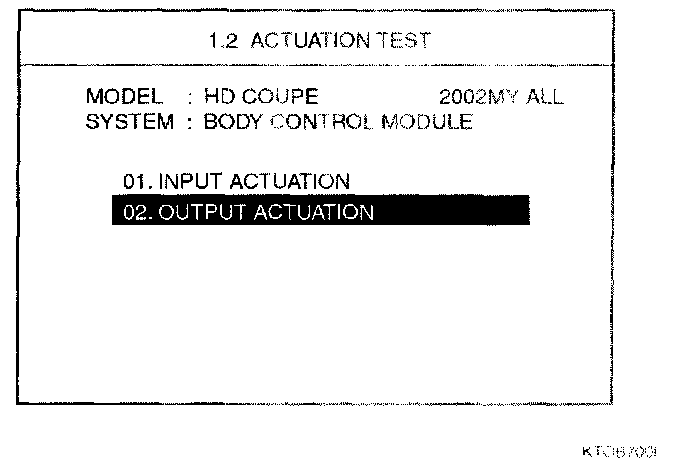

2. Actuator inspection
Select "02 OUTPUT ACTUATION" and press [ENTER].

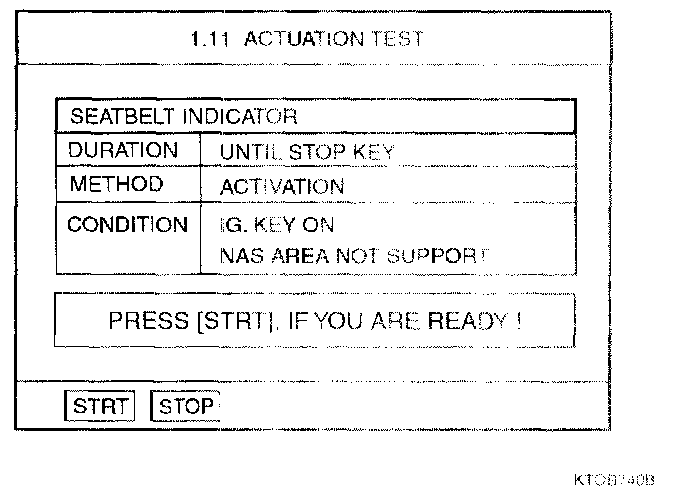

Perform forced drive against seat belt indicator lamp.

5. Expected failure symptoms
Seat belt indicator lamp does not work.

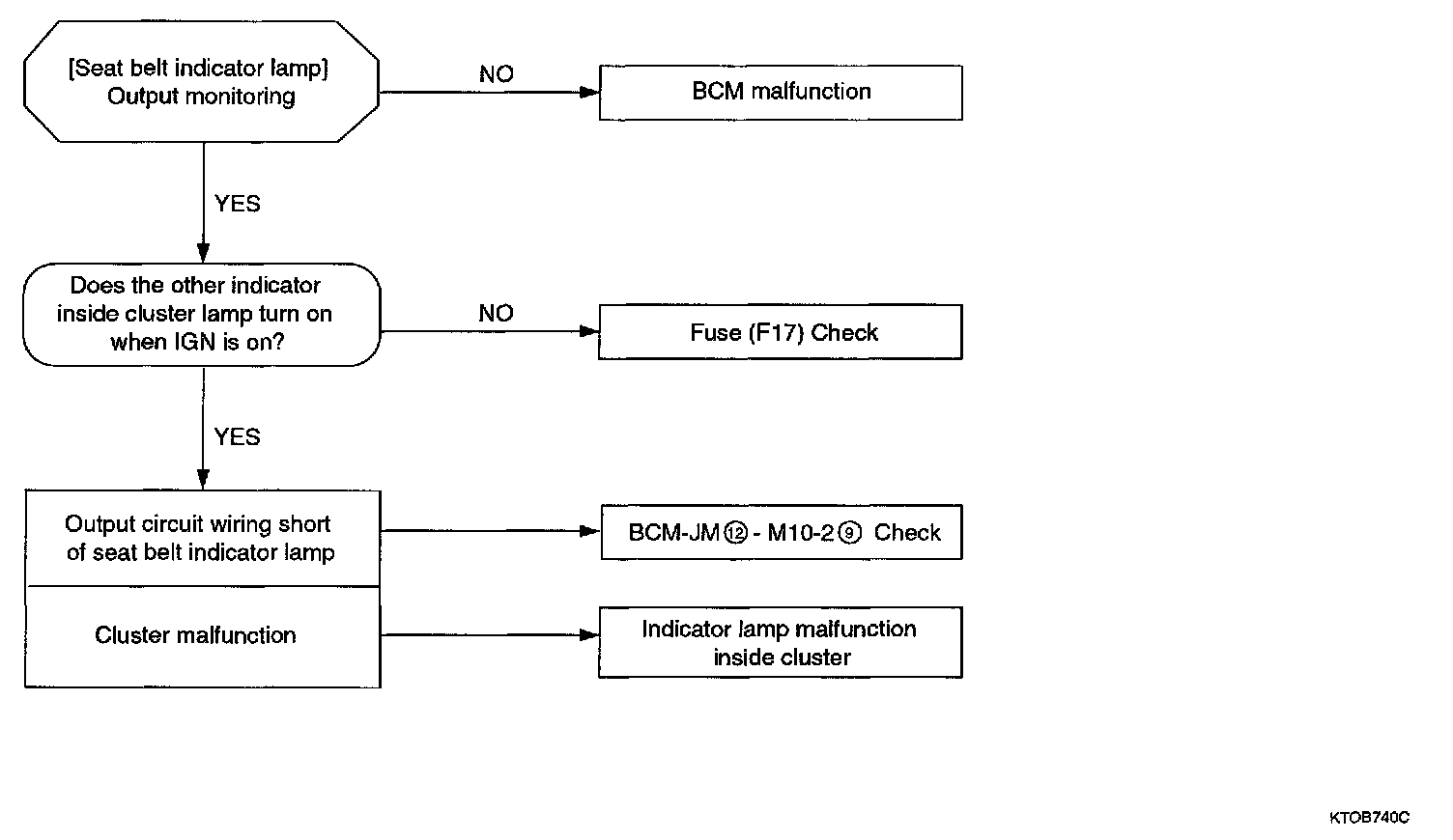

6. Actions by failure symptoms Seat belt indicator lamp does not work.
