Audio Unit: Components

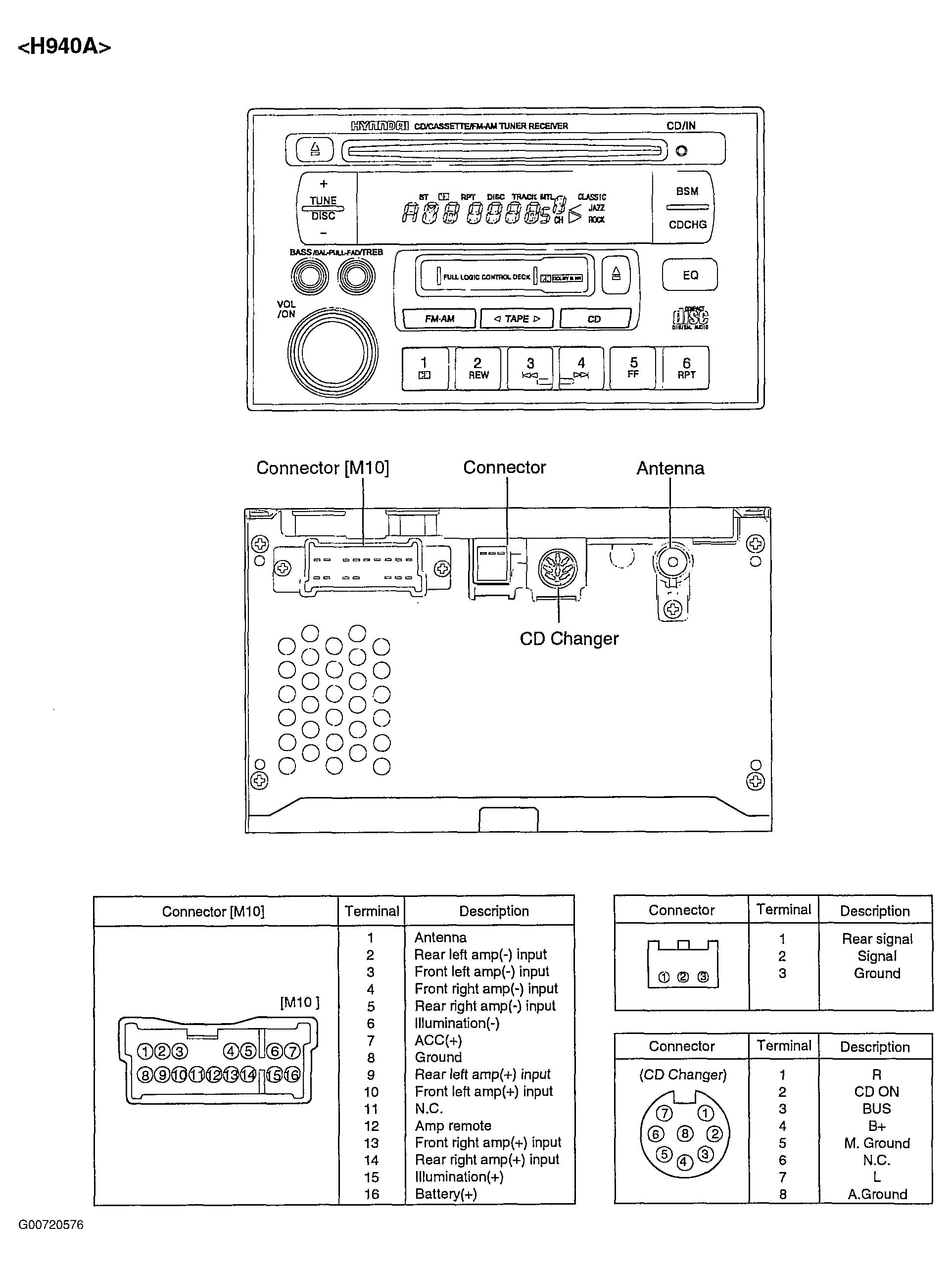

Fig 1: Identifying Audio Unit Control Buttons & Connector Terminals
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
