Audio System: General: Audio: Notes

There are six areas where a problem can occur: wiring harness, the radio, the cassette tape deck, the CD player, the speaker, and the antenna. Troubleshooting enables you to confine the problem to a particular area.

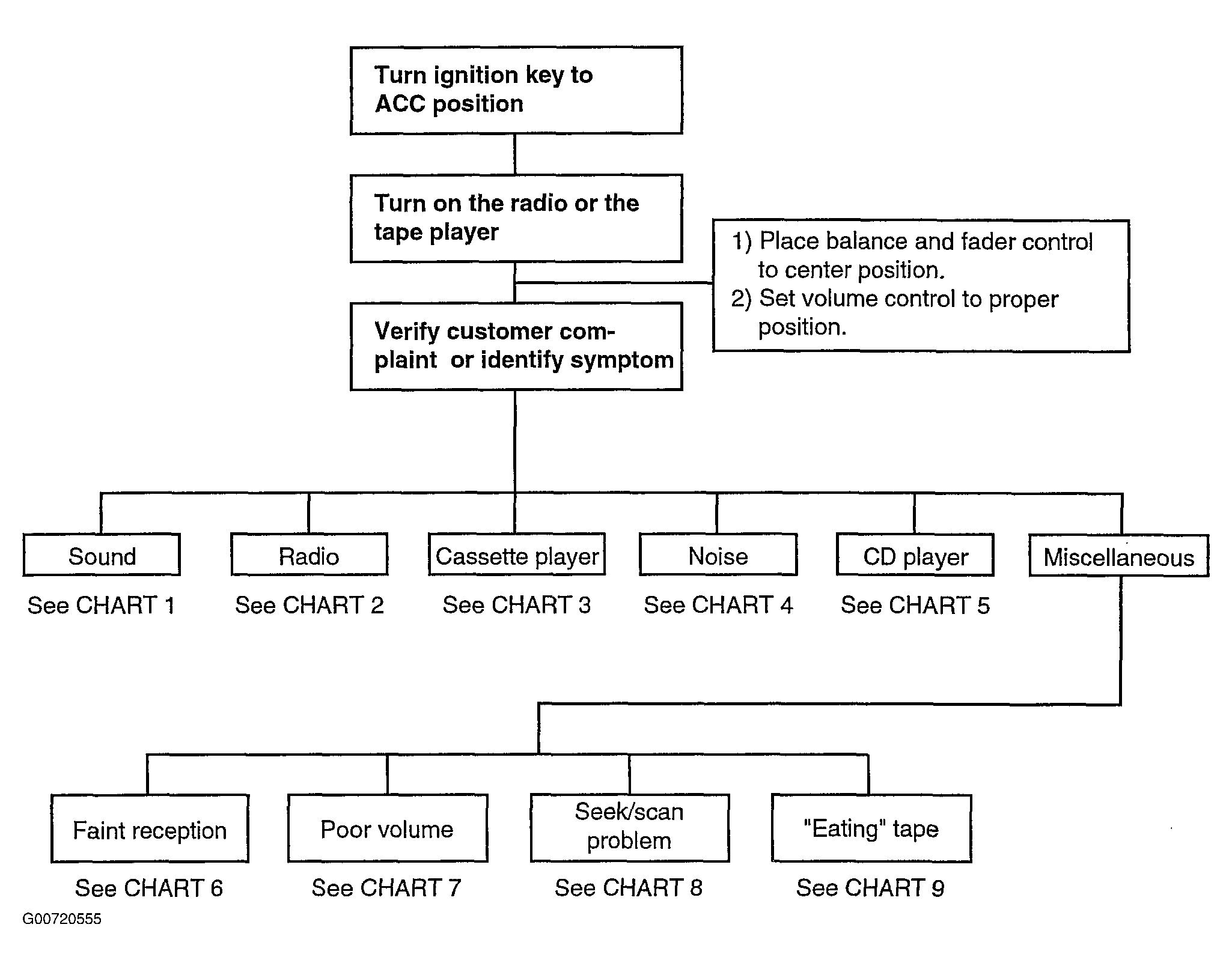

Fig 1: Trouble Shooting Flow Chart
G00720555Courtesy of HYUNDAI MOTOR CO.
