EPS Control Module Circuit

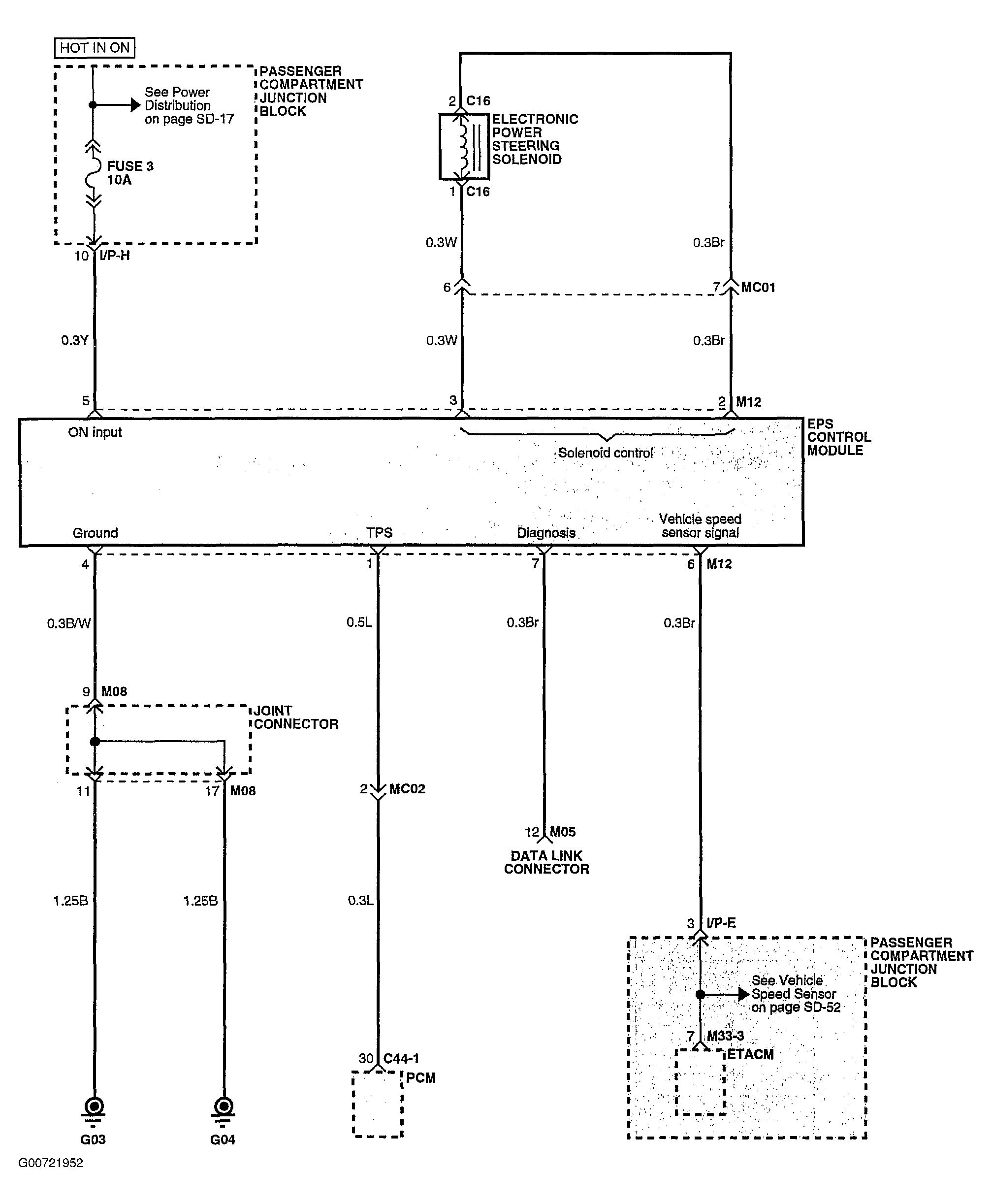

Fig 1: EPS Control Module Circuit
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
