Inspection Procedure 12

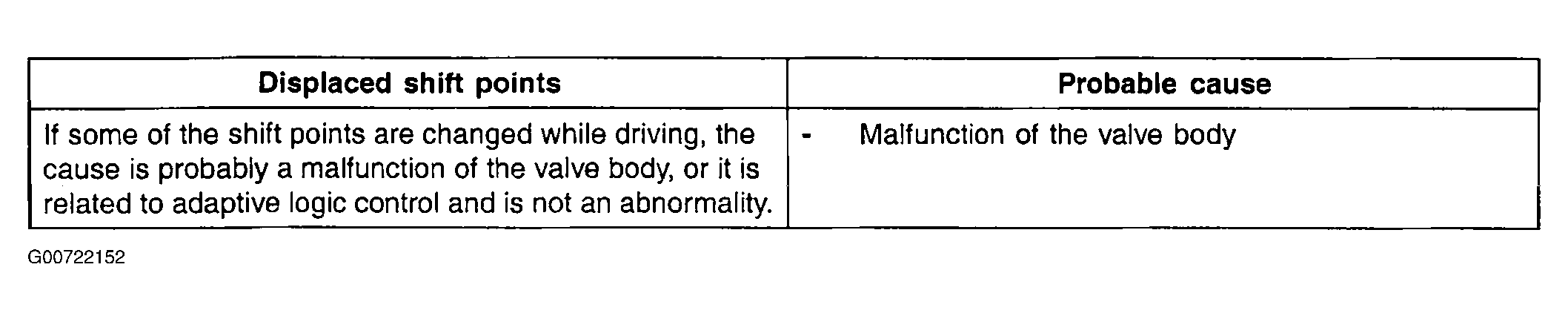

Fig 1: Inspection Procedure 12 (1 Of 2)
G00722152Courtesy of HYUNDAI MOTOR CO.

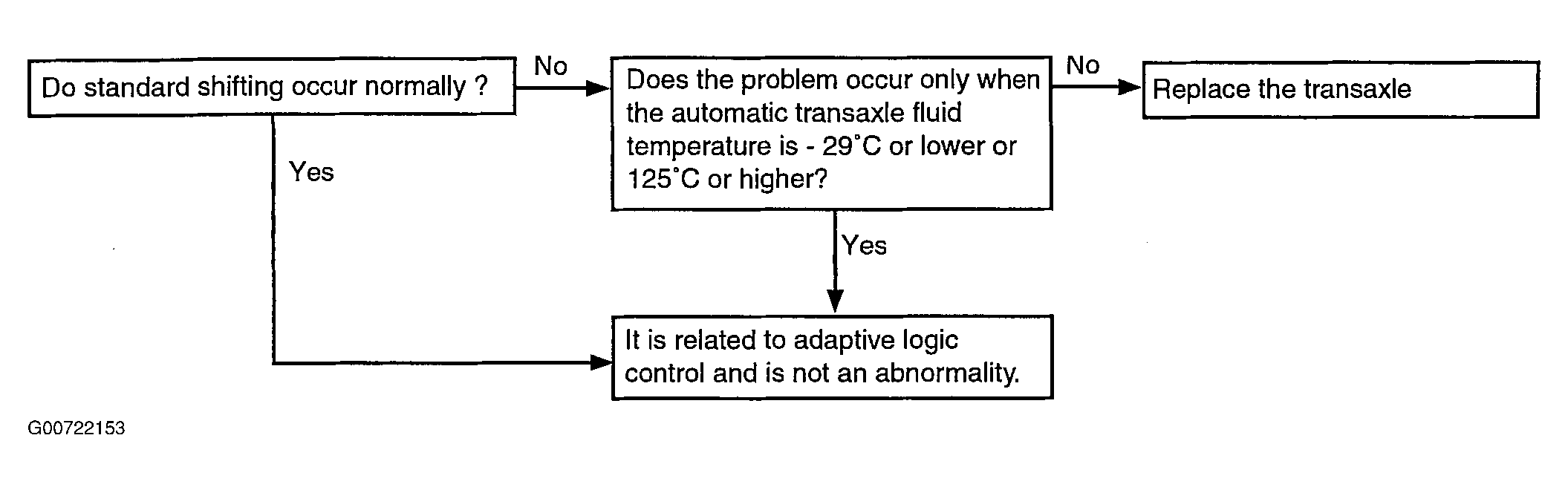

Fig 2: Inspection Procedure 12 (2 Of 2)
G00722153Courtesy of HYUNDAI MOTOR CO.
