Engine Mounts: Components

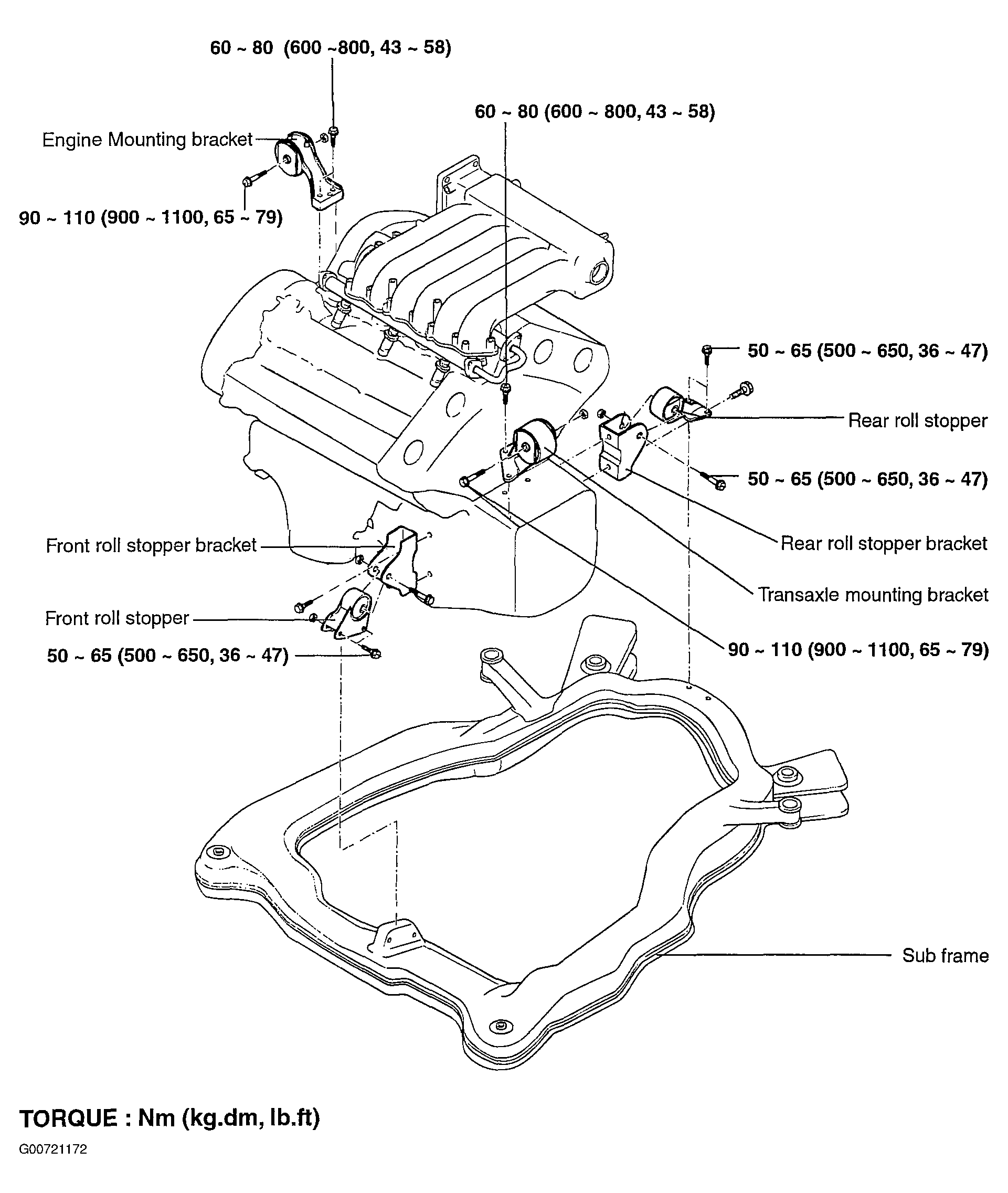

Fig 1: Identifying Engine Mount Components

G00721172

Courtesy of HYUNDAI MOTOR CO.
