Transaxle Mounting

  1. Remove the air cleaner. For additional information refer to AIR CLEANER (ACL) .
  2. Remove the transaxle mounting bolt.
  3. Remove the transaxle bracket.

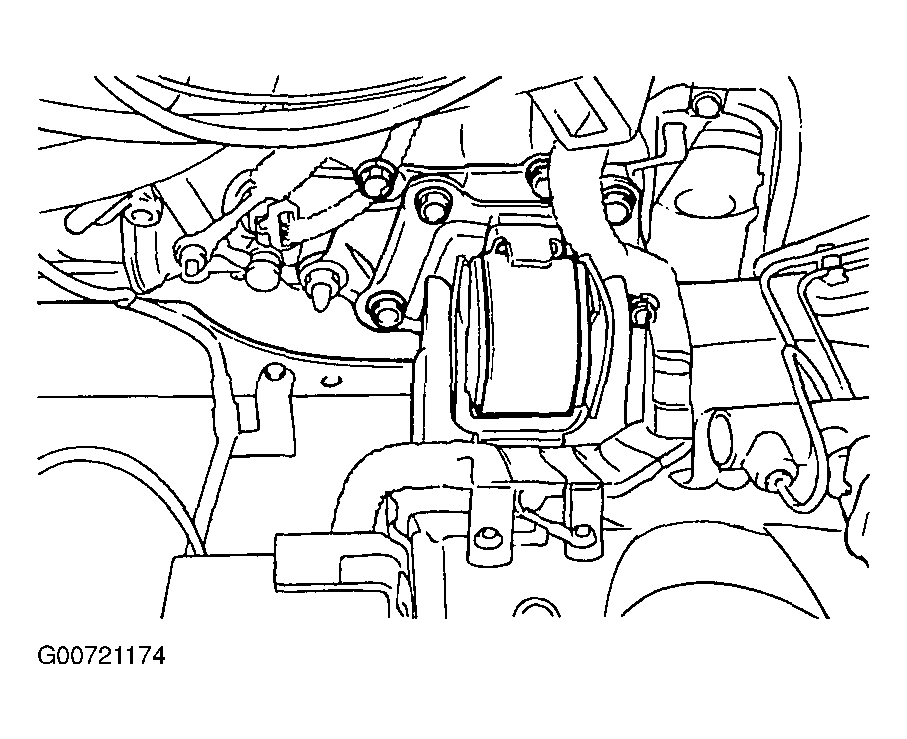

    Fig 1: Removing Transaxle Bracket
    G00721174Courtesy of HYUNDAI MOTOR CO.
