Connecting Rod: Components

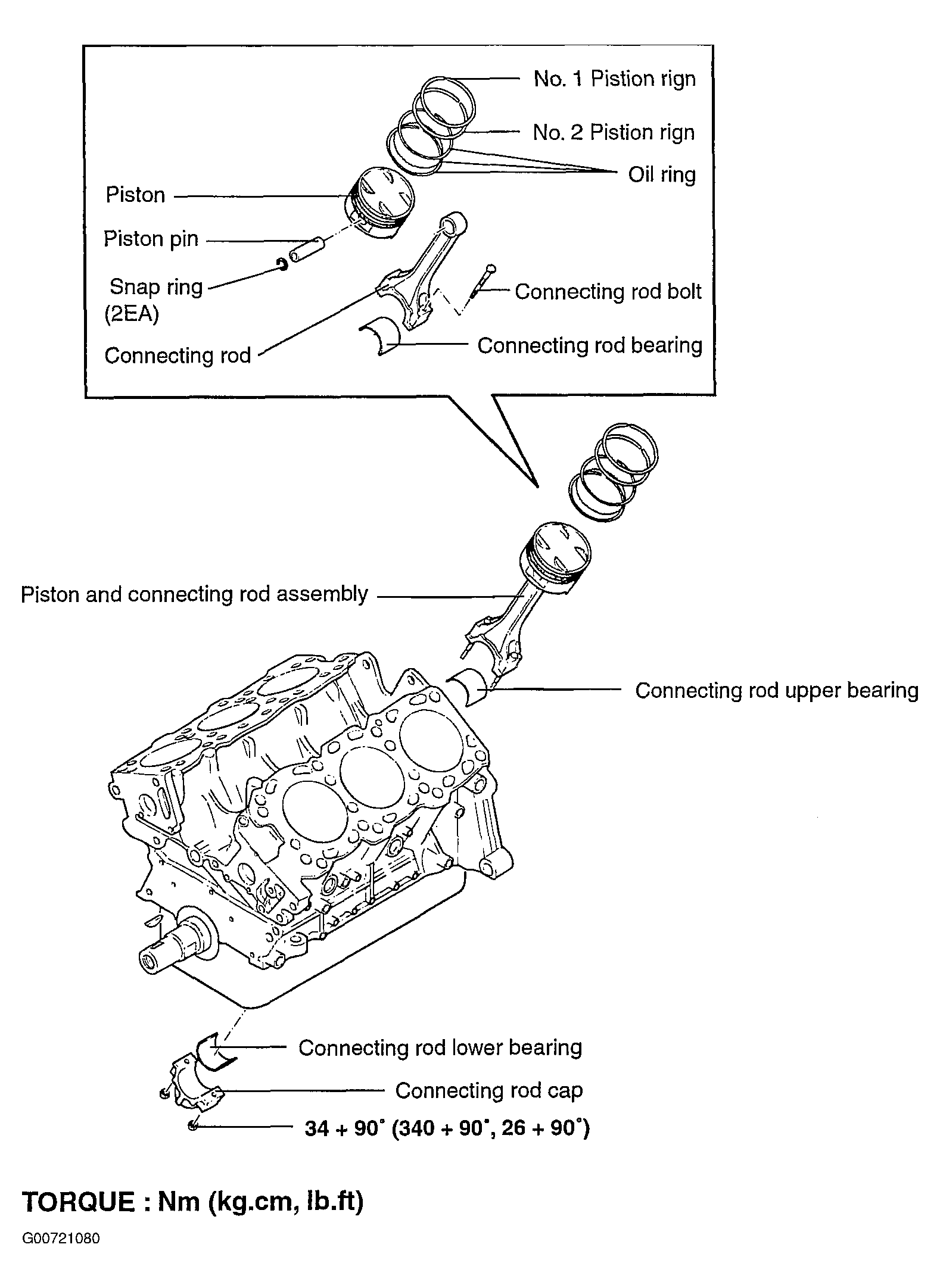

Fig 1: Identifying Connection Rod Components
G00721080Courtesy of HYUNDAI MOTOR CO.
