Timing Belt: Components

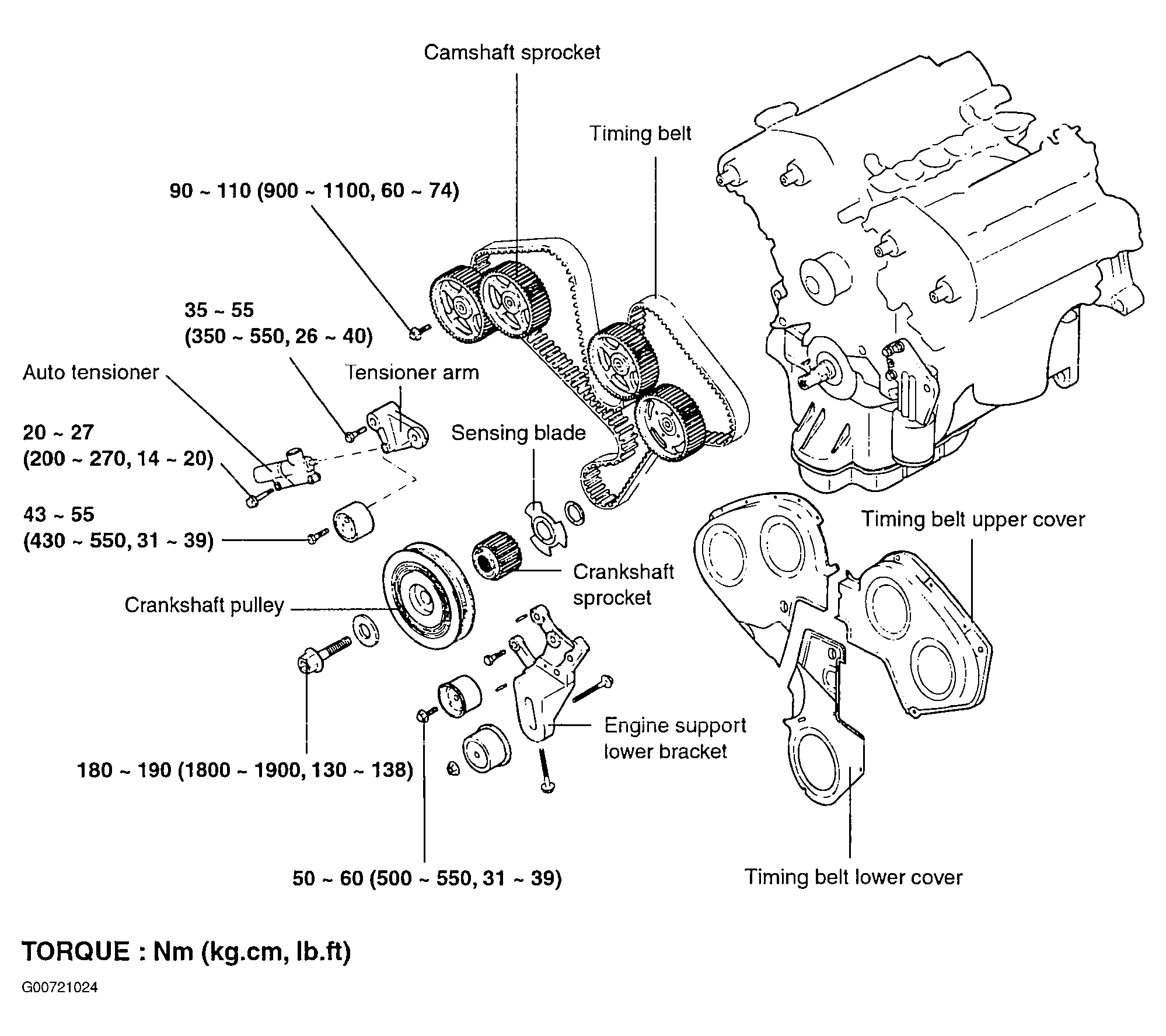

Fig 1: Identifying Timing Belt & Related Components
G00721024Courtesy of HYUNDAI MOTOR CO.

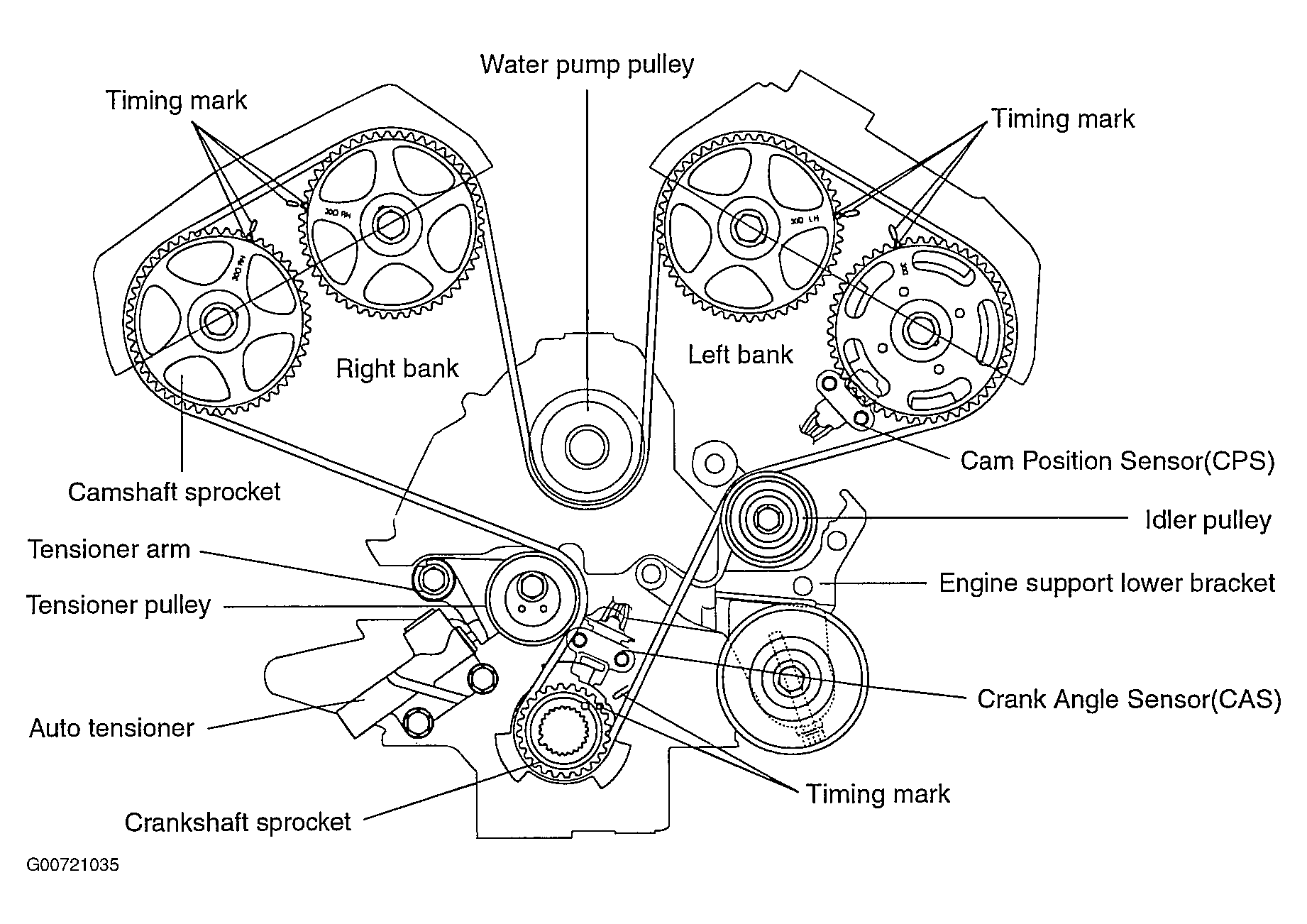

Fig 1: Identifying Timing System Components & Timing Mark Alignment
G00721035Courtesy of HYUNDAI MOTOR CO.
