Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component |
Location |
| Dash Fuse Box |
Behind left kick panel. See Figure. |

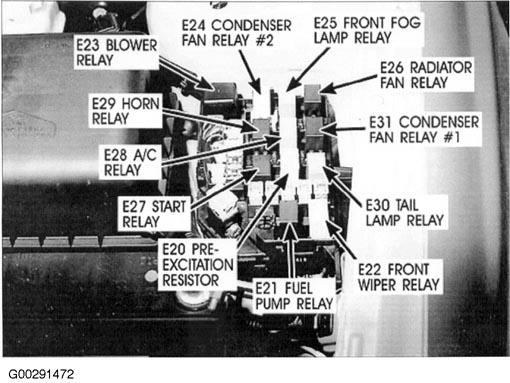

| Engine Compartment Relay & Fuse Box |
On left side of engine compartment, in front of strut tower. See Figure. |

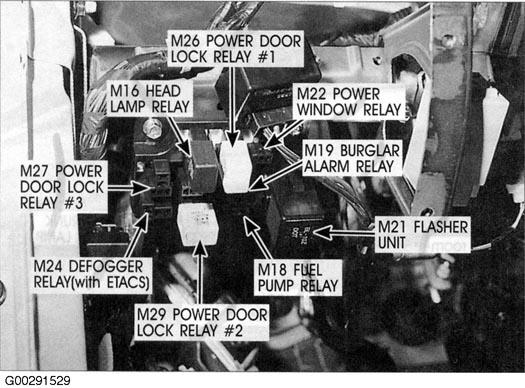

| Passenger Relay Box |
Behind left side of dash. See Figure. |
