Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

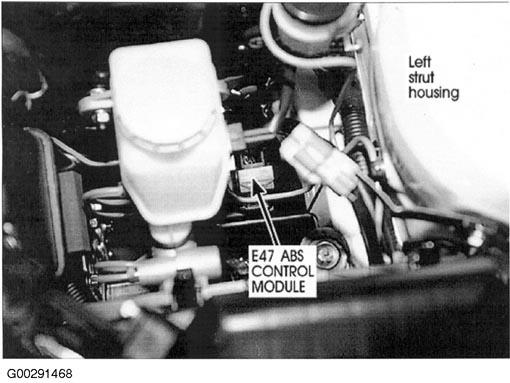

| ABS Control Module | At left rear corner of engine compartment, below master cylinder. See Figure. |

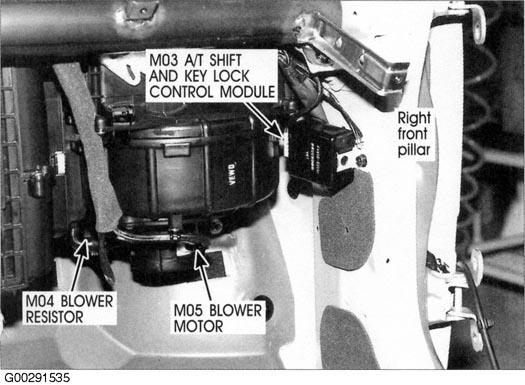

| A/T Shift & Key Lock Control Module | Behind right kick panel. See Figure. |

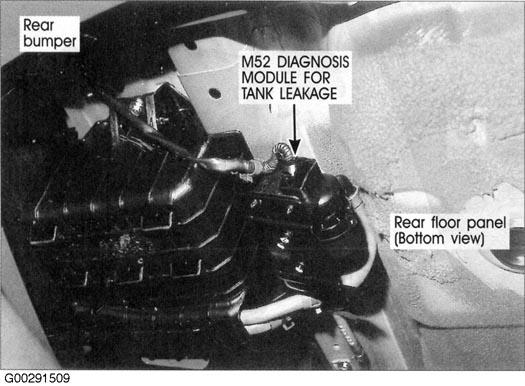

| Diagnosis Module For Tank Leakage | Forward left side of rear bumper. See Figure. |

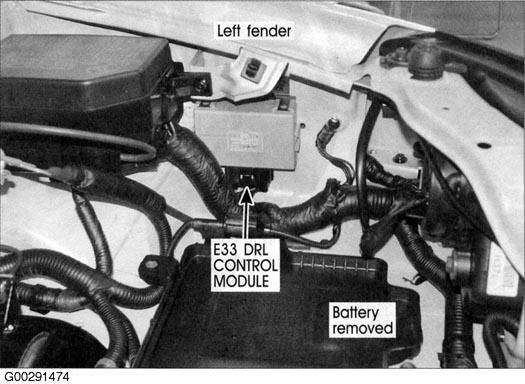

| DRL Control Module | At left front of engine compartment. See Figure. |

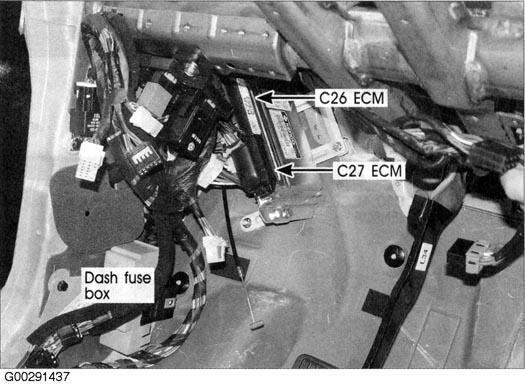

| ECM | Behind left side of dash. See Figure. |

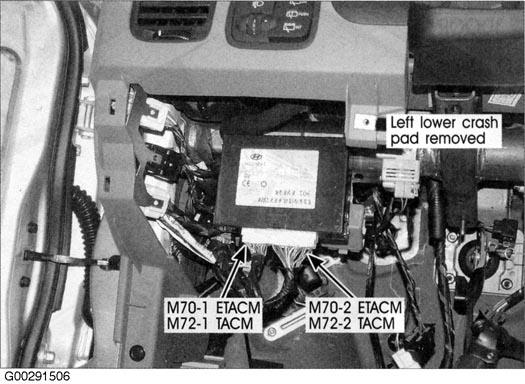

| ETACM | Behind dash, left of steering column. See Figure. |

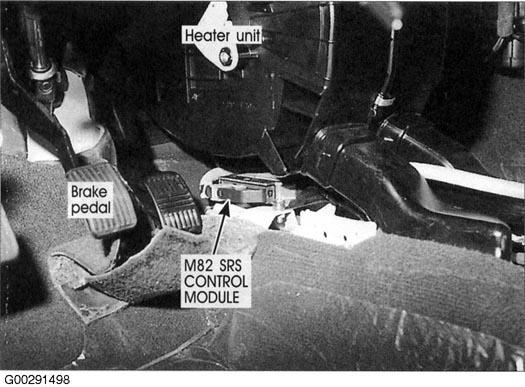

| SRS Control Module | Below center of dash, in front of console. See Figure. |
| TACM | Behind dash, left of steering column. See Figure. |
