Transmission Mounting

  1. Remove the air cleaner.

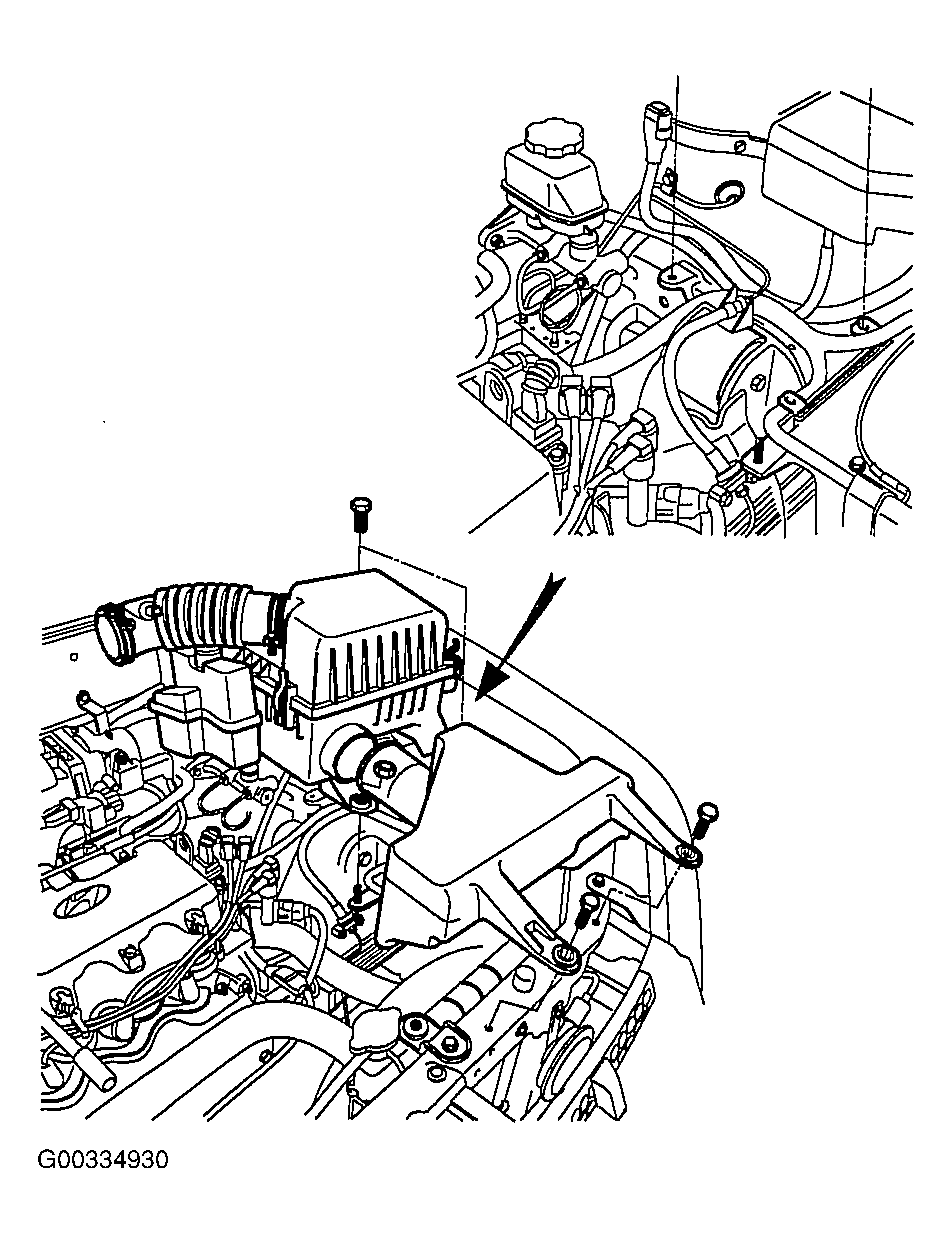

    Fig 1: Removing Air Cleaner
    G00334930Courtesy of HYUNDAI MOTOR CO.
  2. Remove the transmission mounting bolt. (17 mm)

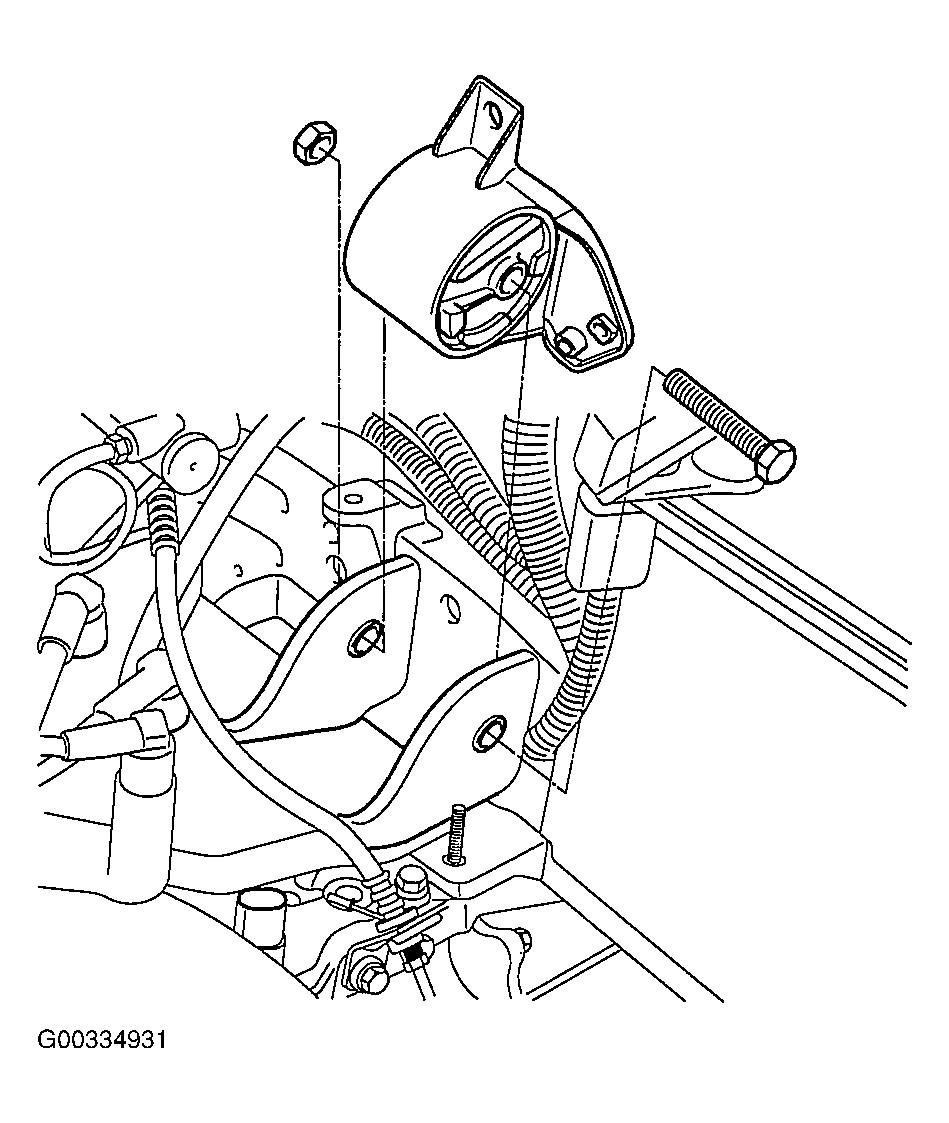

    Fig 2: Removing Transmission Mounting Bolt
    G00334931Courtesy of HYUNDAI MOTOR CO.
  3. Detach the cap from inside the right fender shield. Remove the transmission mounting bolts. (14 mm)

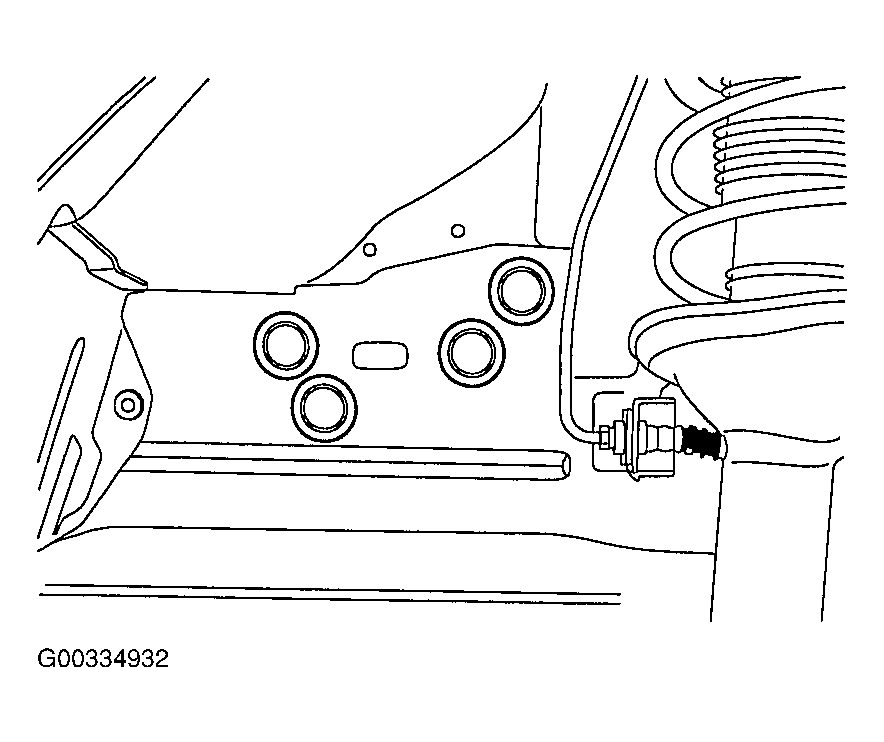

    Fig 3: Detaching Cap From Inside Right Fender Shield
    G00334932Courtesy of HYUNDAI MOTOR CO.
  4. Remove the transmission bracket.
