Intake Manifold: Components

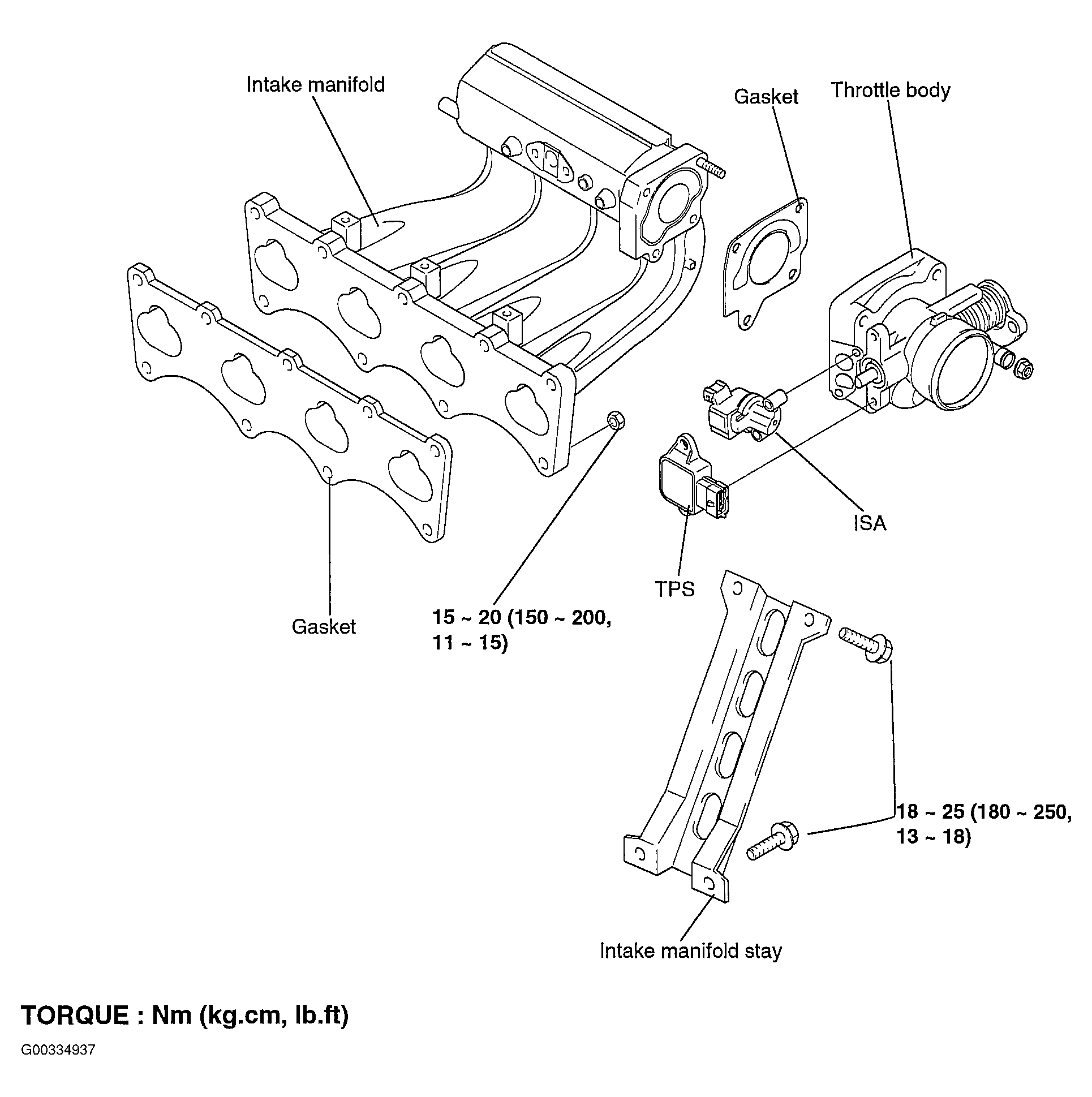

Fig 1: Identifying Intake Manifold Components
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
