Front Hub/Knuckle: Components

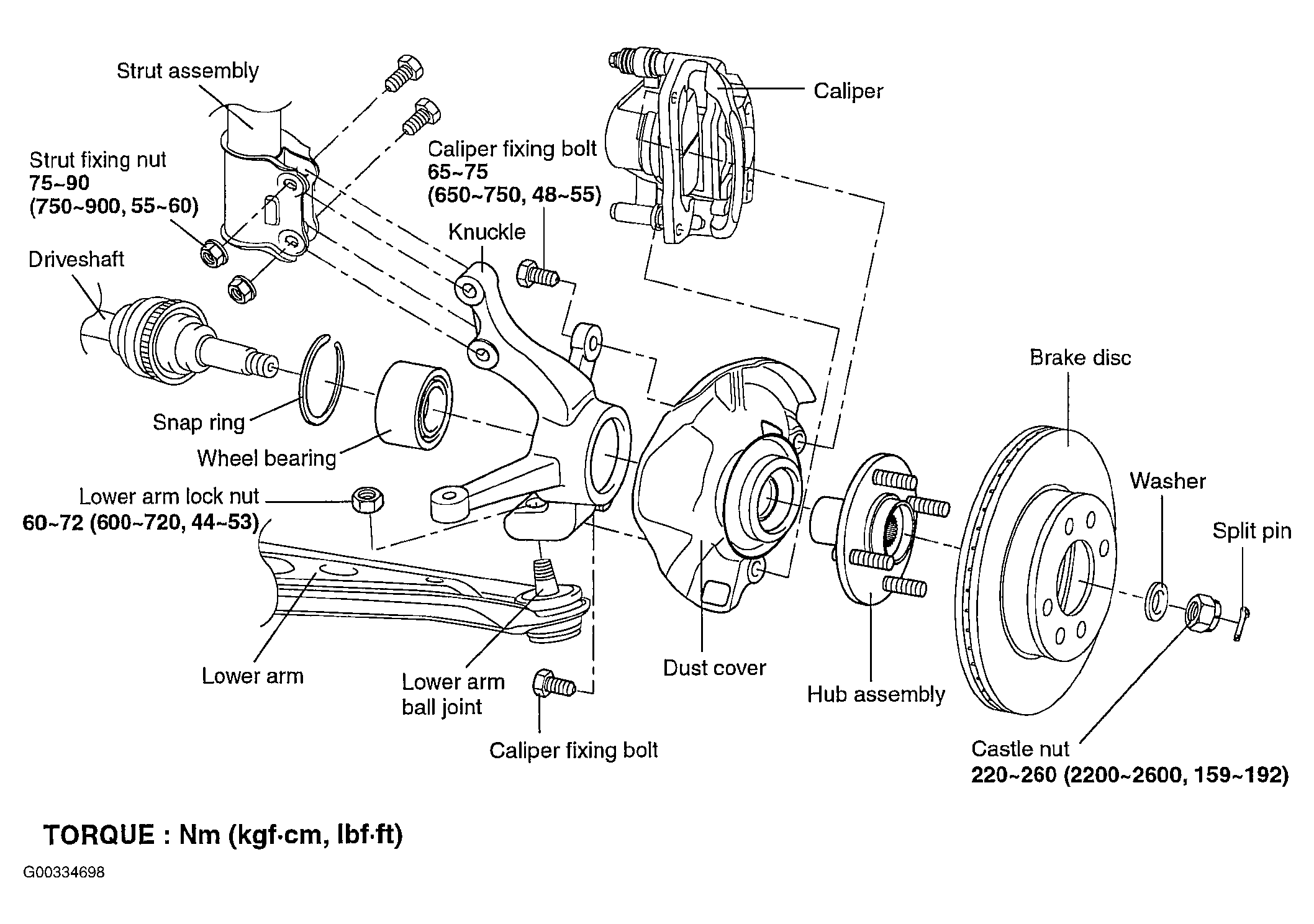

Fig 1: Identifying Front Hub/Knuckle Components

G00334698

Courtesy of HYUNDAI MOTOR CO.
