Sectional View

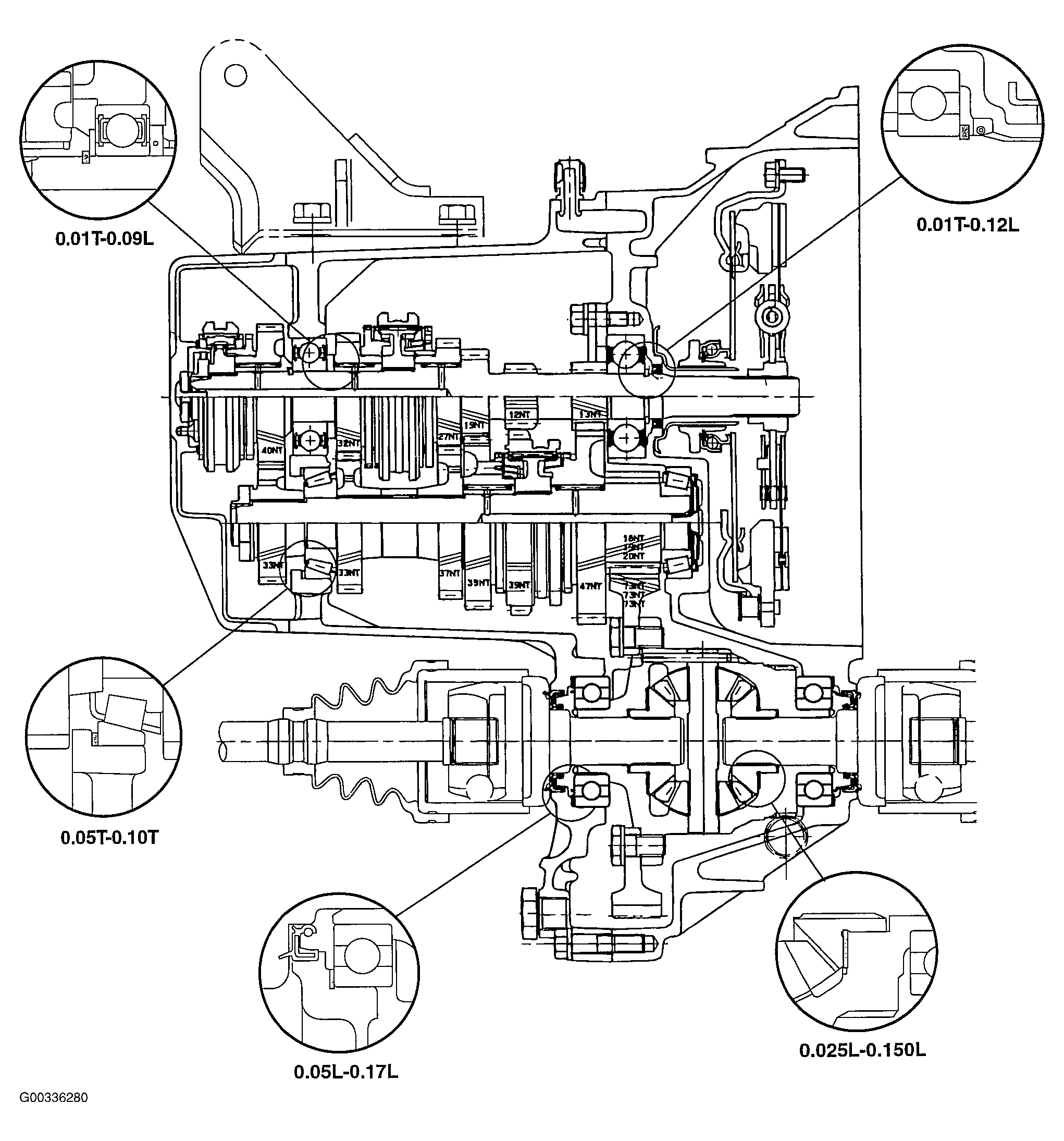

Fig 1: Locating Manual Transaxle Internal Bearings
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
